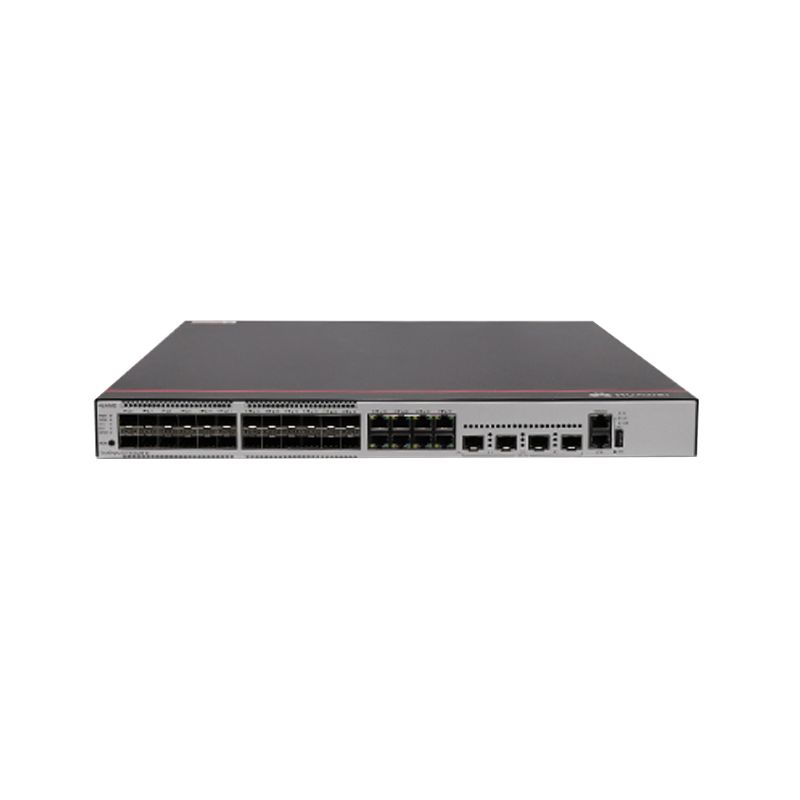

Huawei S5735-S32ST4X (24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, without power module)

$Quote1 Piece(MOQ)

SKU S5735-S32ST4X Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Weight (with packaging)

7.47 kg (16.47 lb)

Power supply surge protection

Using AC power modules: 6 kV in differential mode, 6 kV in common mode, Using DC power modules: 2 kV in differential mode, 4 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.4 in. x 17.49 in.)

Mean time between failures (MTBF)

68.59 years

Flash

512 MB in total. To view the available flash memory size, run thedisplay versioncommand.

Warranty

1 Year

Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption

47 W

Operating temperature

-5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F).

Height [mm]

43.6 mm

Relative humidity

5% to 95%, noncondensing

RPS

Not supported

Operating altitude

0-5000 m (0-16404 ft.)

Noise under normal temperature (27C, sound power)

< 59.3 dB(A)

Availability

> 0.99999

Depth [mm]

420.0mm

RTC

Supported

Rated voltage range

AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC, DC input: -48 V DC to -60 V DC

Mean time to repair (MTTR)

2 hours

Fixed port

24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports

Storage temperature

-40C to +70C (-40F to +158F)

Maximum voltage range

AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC

Brand

Huawei

Maximum power consumption (100% throughput, full speed of fans)

66 W

PoE

Not supported

Products Status

New

Memory (RAM)

1 GB

Service port surge protection

Common mode: 7 kV

Stack ports

Any 10/100/1000BASE-T ports, 100/1000BASE-X ports, or 10GE SFP+ ports (applicable in V200R019C10 and later versions)

PN

98010931

Certification

EMC certification, Safety certification, Manufacturing certification

Model

S5735-S32ST4X

Chassis height [U]

1

Wide [mm]

442.0mm
