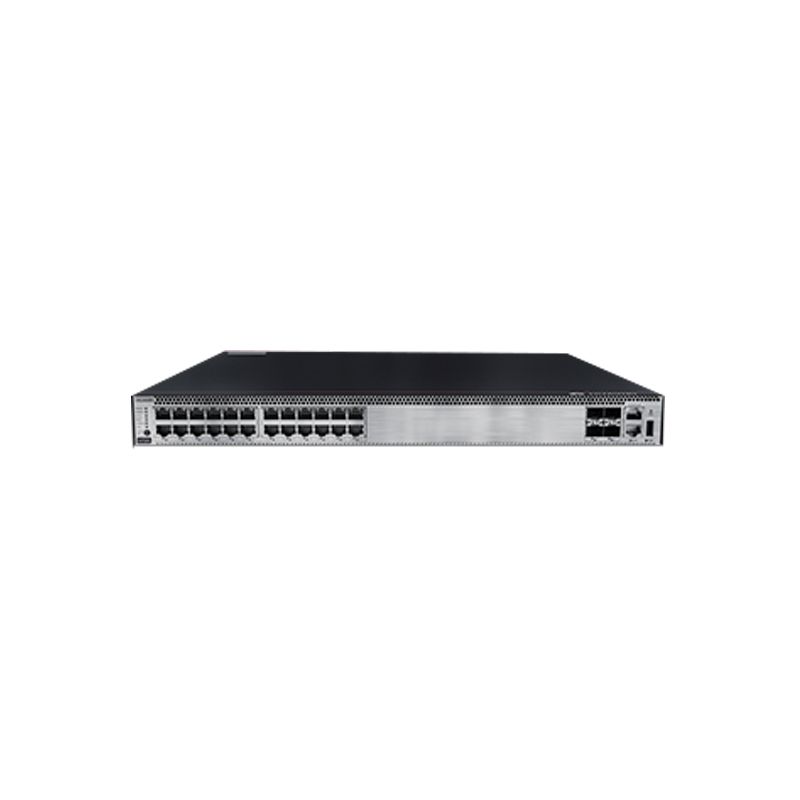

Huawei S5735-S24T4X ??24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, without power module??

$Quote1 Piece(MOQ)

SKU S5735-S24T4X Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
PN

98010938

Model

S5735-S24T4X

Brand

Huawei

Warranty

1 Year

Products Status

New

Height [mm]

43.6 mm

Depth [mm]

420.0mm

Wide [mm]

442.0mm

Chassis height [U]

1

Weight (with packaging)

7.21 kg (15.9 lb)

Memory (RAM)

1 GB

Flash

512 MB in total. To view the available flash memory size, run the?display version?command.

Mean time between failures (MTBF)

69.42 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ??7 kV

Power supply surge protection

Using AC power modules: ??6 kV in differential mode, ??6 kV in common mode, Using DC power modules: ??2 kV in differential mode, ??4 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.4 in. x 17.49 in.)

Stack ports

Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions)

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range

AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC, DC input: -48 V DC to -60 V DC

Maximum voltage range

AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

46 W

Typical power consumption (30% of traffic load)??Tested according to ATIS standard??EEE enabled??No PoE power consumption

31 W

Operating temperature

-5??C to +50??C (23??F to 122??F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0??C (32??F).

Short-term operating temperature

-5??C to +55??C (23??F to 131??F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1??C (1.8??F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 45??C (113??F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 45??C (113??F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 45??C (113??F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0??C (32??F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.

Storage temperature

-40??C to +70??C (-40??F to +158??F)

Noise under normal temperature (27??C, sound power)

< 58.9 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

EMC certification, Safety certification, Manufacturing certification
