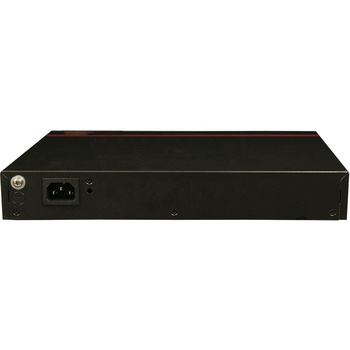

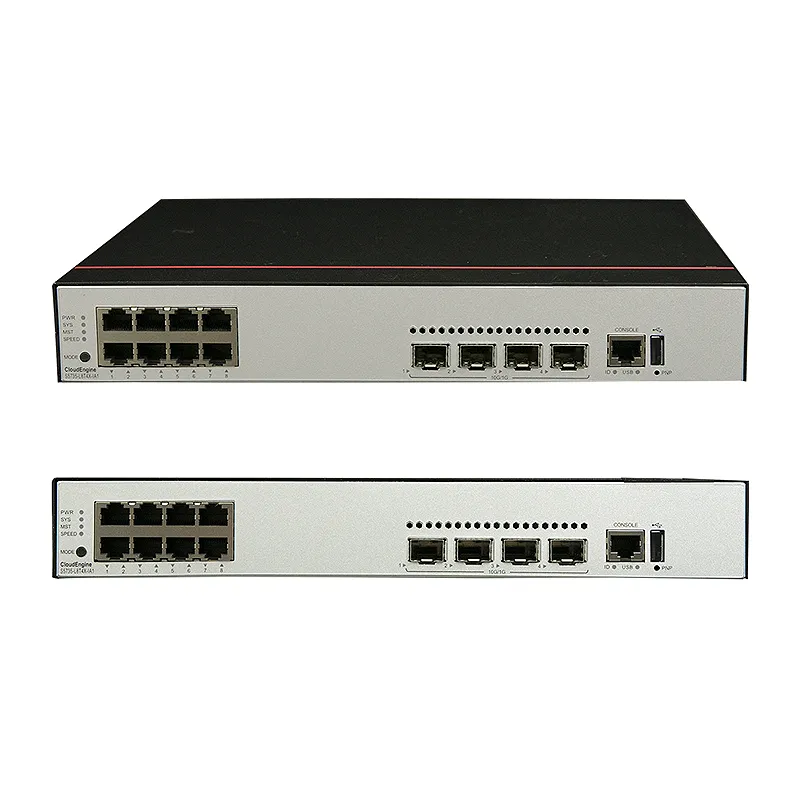

Huawei S5735-L8T4X-IA1 (8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)

$Quote1 Piece(MOQ)

SKU S5735-L8T4X-IA1 Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Memory

512 MB

Redundant power supply

Not supported

Products Status

New

Maximum input current [A]

2 A

USB

Supported

Power supply mode

AC built-in

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Chassis height [U]

1

Short-term operating temperature [C(F)]

C40C to +70C (C40F to +158F) at an altitude of 0-1800 m (0-5906 ft.)

PoE

Not supported

PN

98011581

Input voltage range [V]

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

Eth Management port

Not supported

Availability

>0.99999

RPS input

Not supported

Noise at normal temperature (acoustic pressure) [dB(A)]

31.5 dB(A)

Static power consumption [W]

15.4 W

Number of card slots

0

Model

S5735-L8T4X-IA1

MTBF [year]

67.07 year

Dimensions with packaging (H x W x D) [mm(in.)]

110.0 mm x 435.0 mm x 360.0 mm (4.33 in. x 17.13 in. x 14.17 in.)

Number of power slots

0

Weight without packaging [kg(lb)]

1.97 kg (4.34 lb)

RTC

Not supported

Rated input voltage [V]

AC input: 100 V AC to 240 V AC, 50/60 Hz

Console port

RJ45

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Certification

EMC certification, Safety certification, Manufacturing certification

Service port surge protection [kV]

Common mode: 7 kV

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

MTTR [hour]

2 hour

Airflow direction

Air intake from left and front, air exhaustion from right

Maximum heat dissipation [BTU/hour]

102.36 BTU/hour

Wide [mm]

300.0mm

Maximum power consumption [W]

30 W

Flash memory

512 MB

Warranty

1 Year

Typical heat dissipation [BTU/hour]

80.18 BTU/hour

Brand

Huawei

Power supply surge protection [kV]

6 kV in differential mode, 6 kV in common mode

Weight with packaging [kg(lb)]

2.78 kg (6.13 lb)

Height [mm]

43.6 mm

Types of fans

Built-in

Typical power consumption [W]

23.5 W

Long-term operating temperature [C(F)]

C40C to +65C (C40F to +149F) at an altitude of 0C1800 m (0C5906 ft.) NOTE: C40C to C30C (C40F to C22F): Stable port performance can be achieved only when at least two Ethernet electrical ports go Up.

Storage temperature [C(F)]

C40C to +75C (C40F to +167F)

Noise at normal temperature (acoustic power) [dB(A)]

43 dB(A)

Number of fans modules

1
