PN | 98011551 |
---|---|
Model | S5735-L8T4S-QA1 |
Brand | Huawei |
Warranty | 1 Year |
Products Status | New |
Height [mm] | 43.6 mm |
Depth [mm] | 210.0mm |
Wide [mm] | 320.0mm |
Chassis height [U] | 1 |
Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.) |
Weight without packaging [kg(lb)] | 2.30 kg (5.07 lb) |
Weight with packaging [kg(lb)] | 3.10 kg (6.83 lb) |
Typical power consumption [W] | 20.5 W |
Typical heat dissipation [BTU/hour] | 69.95 BTU/hour |
Maximum power consumption [W] | 22 W |
Maximum heat dissipation [BTU/hour] | 75.07 BTU/hour |
Static power consumption [W] | 13.0 W |
MTBF [year] | 71.82 year |
MTTR [hour] | 2 hour |
Availability | >0.99999 |
Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans), < 30 |
Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans), < 20 |
Number of card slots | 0 |
Number of power slots | 0 |
Number of fans modules | 0 |
Redundant power supply | Not supported |
Long-term operating temperature [??C(??F)] | ?C5??C to +45??C (23??F to 113??F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.) |
Storage temperature [??C(??F)] | ?C40??C to +70??C (?C40??F to +158??F) |
Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
Power supply mode | AC built-in |
Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
Maximum input current [A] | 0.8 A |
Memory | 512 MB |
Flash memory | 512 MB |
Console port | RJ45 |
Eth Management port | Not supported |
USB | Not supported |
RTC | Not supported |
RPS input | Not supported |
Service port surge protection [kV] | Common mode: ??7 kV |
Power supply surge protection [kV] | ??6 kV in differential mode, ??6 kV in common mode |
Types of fans | None |
Heat dissipation mode | Natural heat dissipation |
Airflow direction | – |
PoE | Not supported |
Certification | EMC certification, Safety certification, Manufacturing certification |

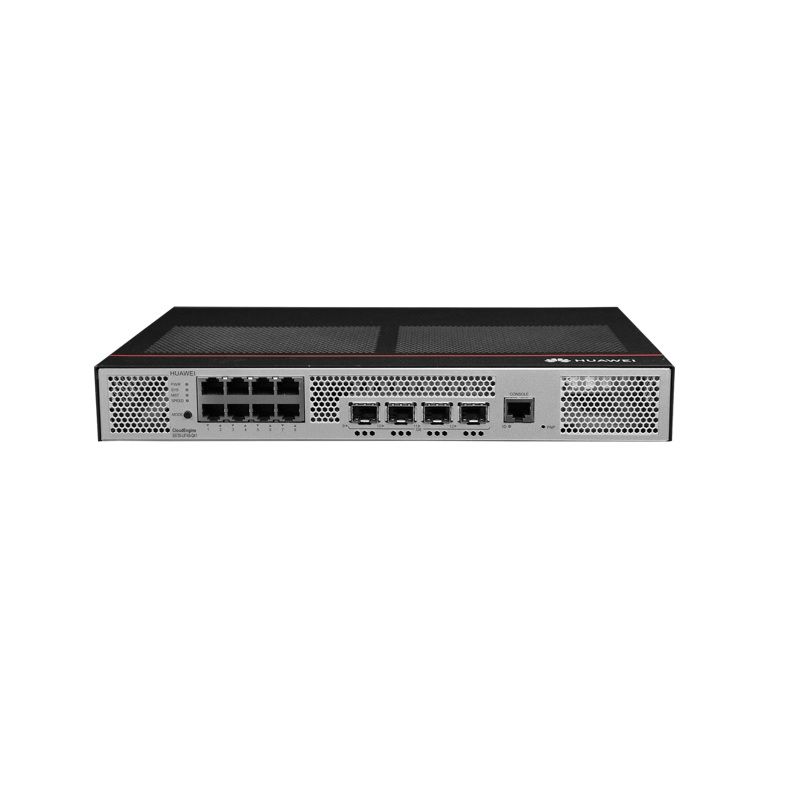

Huawei S5735-L8T4S-QA1 (8*10/100/1000BASE-T ports, 4*GE SFP ports, AC power, Fanless)
