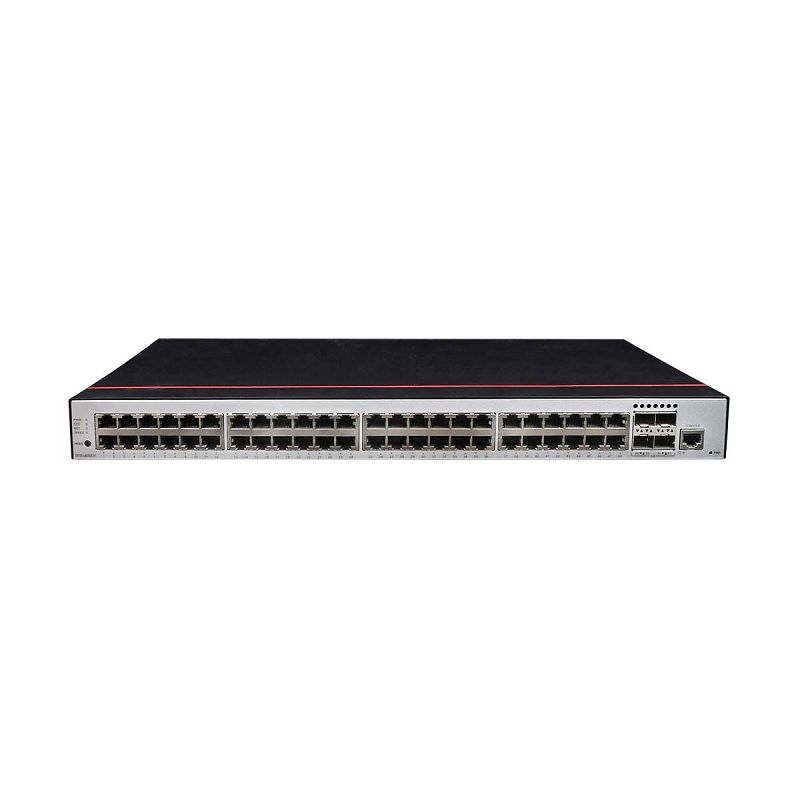

Huawei S5735-L48T4S-A1 (48*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)

$Quote1 Pieces ( MOQ )

Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

PN

98011334

Model

S5735-L48T4S-A1

Brand

Huawei

Warranty

1 Year

Products Status

New

Height [mm]

43.6 mm

Depth [mm]

220.0mm

Wide [mm]

442.0mm

Chassis height [U]

1

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Weight without packaging [kg(lb)]

2.76 kg (6.09 lb)

Weight with packaging [kg(lb)]

3.74 kg (8.25 lb)

Typical power consumption [W]

43.3 W

Typical heat dissipation [BTU/hour]

147.74 BTU/hour

Maximum power consumption [W]

50.4 W

Maximum heat dissipation [BTU/hour]

171.97 BTU/hour

Static power consumption [W]

20.3 W

MTBF [year]

56.7 year

MTTR [hour]

2 hour

Availability

>0.99999

Noise at normal temperature (acoustic power) [dB(A)]

48 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)]

36.2 dB(A)

Number of card slots

0

Number of power slots

0

Number of fans modules

1

Redundant power supply

Not supported

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature [°C(°F)]

-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

AC built-in

Rated input voltage [V]

AC input: 100 V AC to 240 V AC, 50/60 Hz

Input voltage range [V]

AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum input current [A]

2 A

Memory

512 MB

Flash memory

512 MB

Console port

RJ45

Eth Management port

Not supported

USB

Not supported

RTC

Not supported

RPS input

Not supported

Service port surge protection [kV]

Common mode: ±7 kV

Power supply surge protection [kV]

±6 kV in differential mode, ±6 kV in common mode

Types of fans

Built-in

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Airflow direction

Air intake from left and front, air exhaustion from right

PoE

Not supported

Certification

EMC certification, Safety certification, Manufacturing certification
