| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
|---|---|
| Memory | 512 MB |
| Redundant power supply | Not supported |
| Products Status | New |
| Maximum input current [A] | 6 A |
| USB | Supported |
| Power supply mode | DC built-in |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Chassis height [U] | 1 |
| Short-term operating temperature [C(F)] | -5C to +55C (23F to 131F) at an altitude of 0-1800 m (0-5906 ft.) |
| PoE | Not supported |
| PN | 98011399 |
| Input voltage range [V] | -38.4 V DC to -72 V DC |
| Eth Management port | Not supported |
| Availability | >0.99999 |
| RPS input | Not supported |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 35 dB(A) |
| Static power consumption [W] | 37.8 W |
| Number of card slots | 0 |
| Model | S5735-L32ST4X-D1 |
| MTBF [year] | 58.44 year |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Number of power slots | 0 |
| Weight without packaging [kg(lb)] | 2.75 kg (6.06 lb) |
| RTC | Not supported |
| Rated input voltage [V] | -48 V DC to -60 V DC |
| Console port | RJ45 |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
| Service port surge protection [kV] | Common mode: 7 kV |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| MTTR [hour] | 2 hour |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| Maximum heat dissipation [BTU/hour] | 211.21 BTU/hour |
| Wide [mm] | 442.0mm |
| Maximum power consumption [W] | 61.9 W |
| Flash memory | 512 MB |
| Warranty | 1 Year |
| Typical heat dissipation [BTU/hour] | 207.12 BTU/hour |
| Brand | Huawei |
| Power supply surge protection [kV] | 2 kV in differential mode, 4 kV in common mode |
| Weight with packaging [kg(lb)] | 3.85 kg (8.49 lb) |
| Height [mm] | 43.6 mm |
| Types of fans | Built-in |
| Typical power consumption [W] | 60.7 W |
| Long-term operating temperature [C(F)] | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [C(F)] | -40C to +70C (-40F to +158F) |
| Noise at normal temperature (acoustic power) [dB(A)] | 46.8 dB(A) |
| Number of fans modules | 2 |

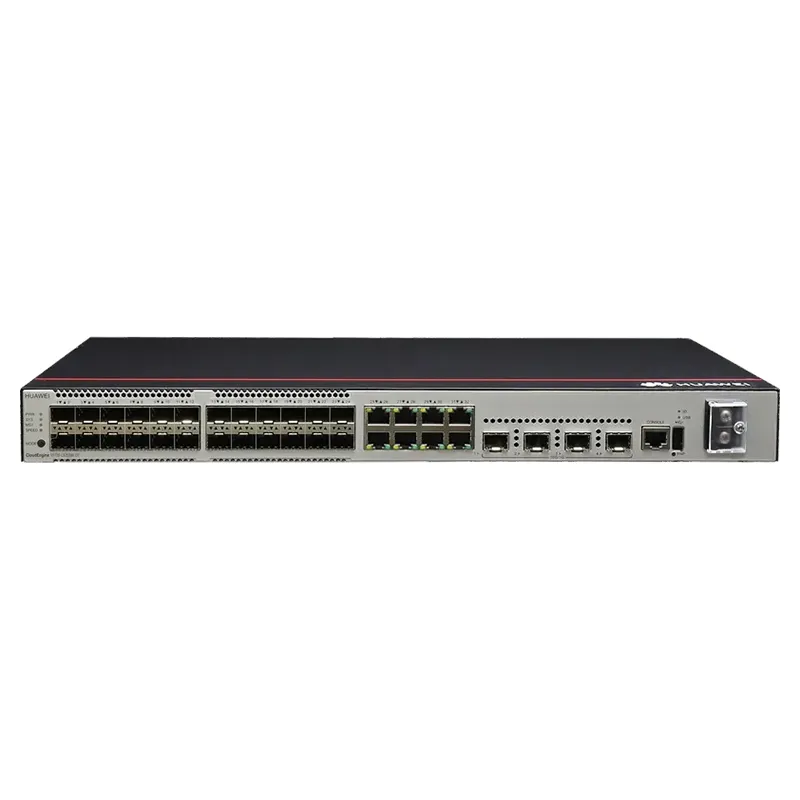

Huawei S5735-L32ST4X-D1 (24*GE SFP ports, 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, DC power, front access)
Huawei S5735-L32ST4X-D1 is a high-density, enterprise-grade Ethernet switch designed for scalable, high-performance networking. Key features include 24 GE SFP ports, 8 copper 10/100/1000BASE-T ports, and 4 10GE SFP+ uplinks, offering flexible connectivity for diverse devices and future-ready bandwidth expansion. DC power ensures stable operation in environments with redundant power needs, while front-access design simplifies installation in space-constrained racks. Ideal for demanding enterprise or data center use, its USP lies in seamless scalability, hybrid port versatility, and reliable, energy-efficient performance—perfect for growing networks prioritizing adaptability and uptime.
