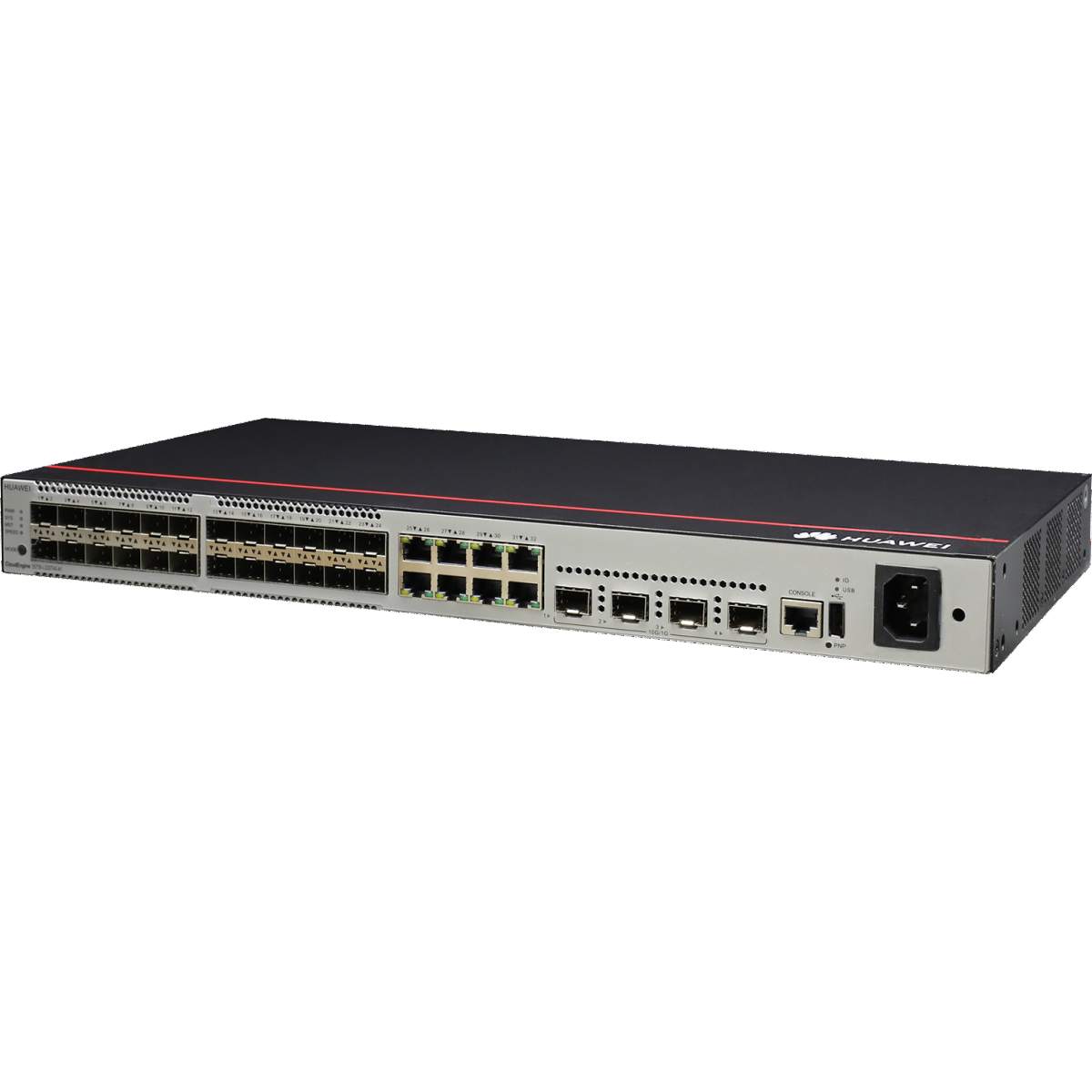

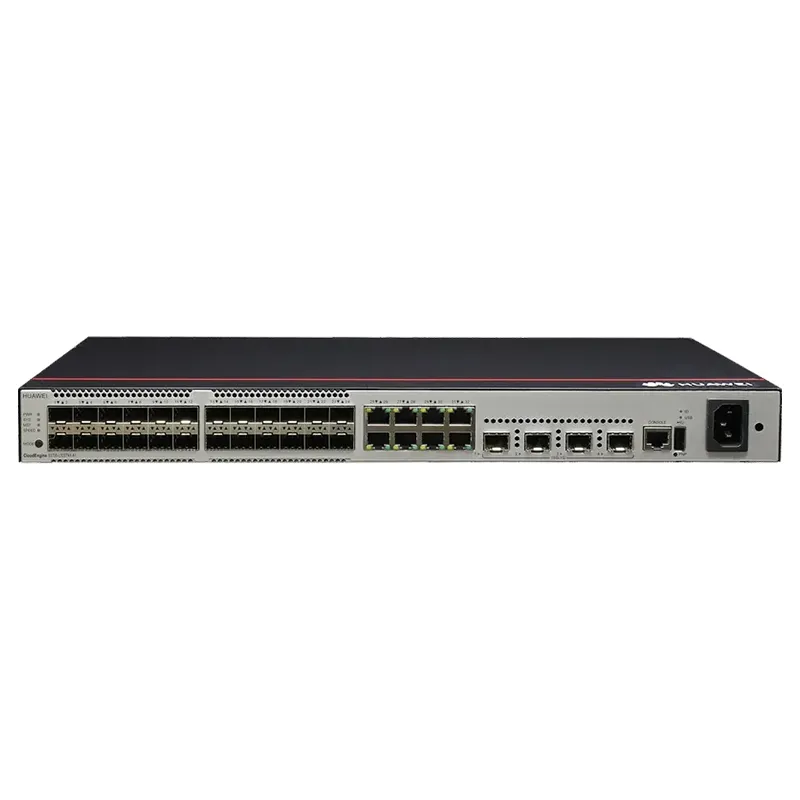

Huawei S5735-L32ST4X-A1 (24*GE SFP ports, 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power, front access)

$Quote1 Piece(MOQ)

SKU S5735-L32ST4X-A1 Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Airflow direction

Air intake from left and front, air exhaustion from right

Maximum heat dissipation [BTU/hour]

227.93 BTU/hour

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Short-term operating temperature [C(F)]

-5C to +55C (23F to 131F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature [C(F)]

-40C to +70C (-40F to +158F)

Warranty

1 Year

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Console port

RJ45

Long-term operating temperature [C(F)]

-5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Typical power consumption [W]

53.2 W

Height [mm]

43.6 mm

Flash memory

512 MB

Power supply mode

AC built-in

MTBF [year]

58.44 year

USB

Supported

Number of card slots

0

Availability

>0.99999

RPS input

Not supported

Depth [mm]

220.0mm

Typical heat dissipation [BTU/hour]

181.52 BTU/hour

RTC

Not supported

Maximum power consumption [W]

66.8 W

Brand

Huawei

Rated input voltage [V]

AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC

Memory

512 MB

Input voltage range [V]

AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz, High-Voltage DC input: 190 V DC to 290 V DC

Types of fans

Built-in

PoE

Not supported

Products Status

New

Static power consumption [W]

39.3 W

Eth Management port

Not supported

Weight with packaging [kg(lb)]

4.03 kg (8.89 lb)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Noise at normal temperature (acoustic power) [dB(A)]

46.8 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)]

35 dB(A)

MTTR [hour]

2 hour

Redundant power supply

Not supported

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

PN

98011396

Certification

EMC certification, Safety certification, Manufacturing certification

Service port surge protection [kV]

Common mode: 7 kV

Maximum input current [A]

2 A

Number of power slots

0

Power supply surge protection [kV]

6 kV in differential mode, 6 kV in common mode

Model

S5735-L32ST4X-A1

Weight without packaging [kg(lb)]

2.88 kg (6.35 lb)

Number of fans modules

2

Chassis height [U]

1

Wide [mm]

442.0mm
