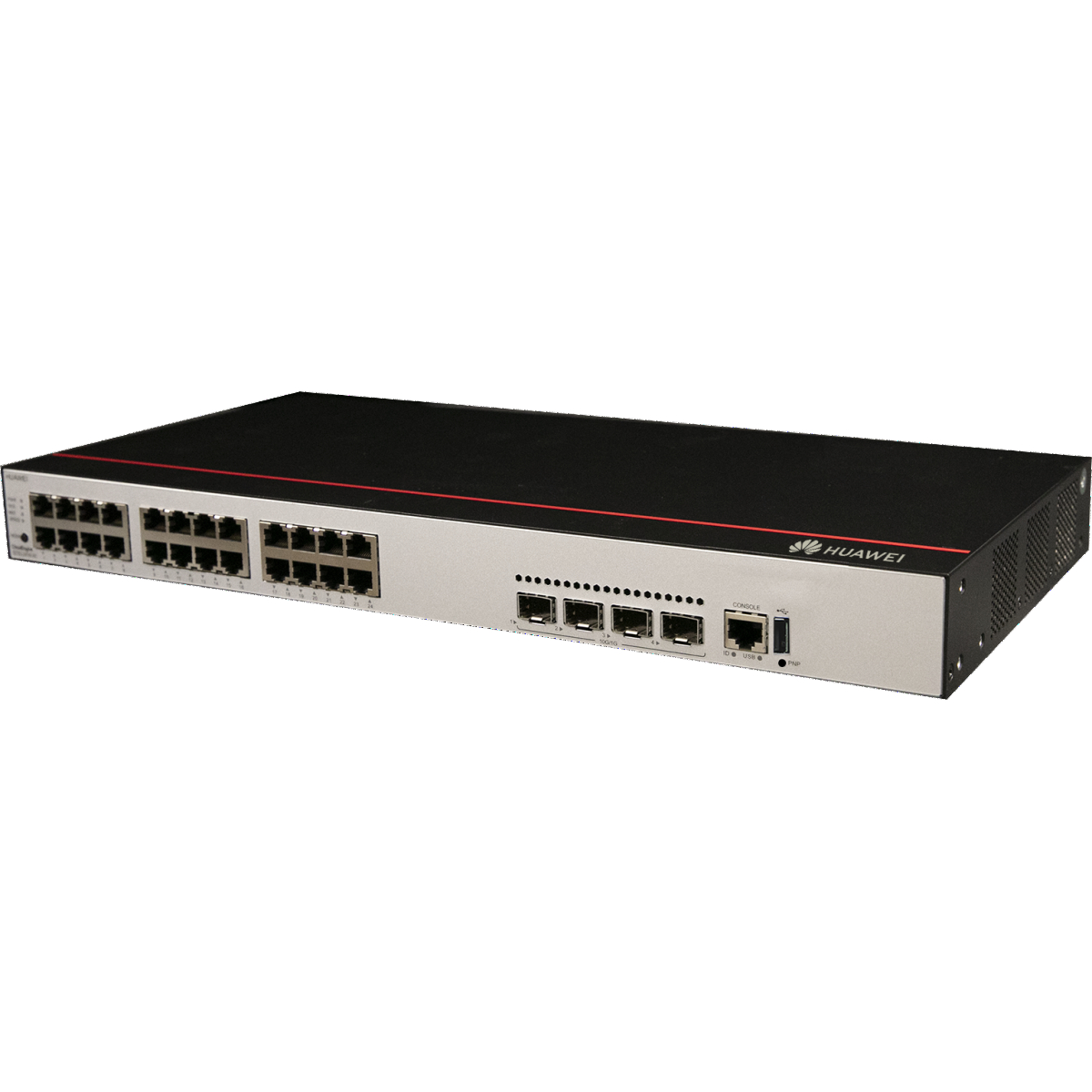

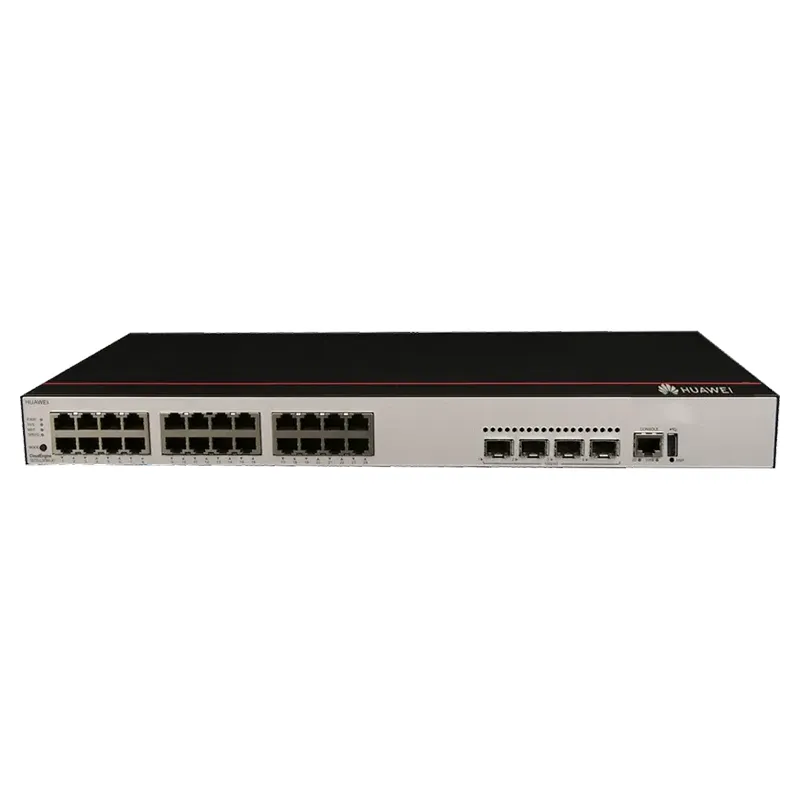

Huawei S5735-L24T4X-IA1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)

$Quote1 Piece(MOQ)

SKU S5735-L24T4X-IA1 Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Airflow direction

Air intake from left and front, air exhaustion from right

Maximum heat dissipation [BTU/hour]

155.96 BTU/hour

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Short-term operating temperature [C(F)]

C40C to +70C (C40F to +158F) at an altitude of 0C1800 m (0C5906 ft.)

Storage temperature [C(F)]

C40C to +75C (C40F to +167F)

Warranty

1 Year

Long-term operating altitude [m(ft.)]

0C5000 m (0C16404 ft.)

Console port

RJ45

Long-term operating temperature [C(F)]

C40C to +65C (C40F to +149F) at an altitude of 0C1800 m (0C5906 ft.), NOTE: C40C to C30C (C40F to C22F): Stable port performance can be achieved only when at least four of the first eight Ethernet electrical ports go Up.

Storage altitude [m(ft.)]

0C5000 m (0C16404 ft.)

Typical power consumption [W]

29.8 W

Height [mm]

43.6 mm

Flash memory

512 MB

Power supply mode

AC built-in

MTBF [year]

62.05 year

USB

Supported

Number of card slots

0

Availability

>0.99999

RPS input

Not supported

Depth [mm]

220.0mm

Typical heat dissipation [BTU/hour]

101.68 BTU/hour

RTC

Not supported

Maximum power consumption [W]

46 W

Brand

Huawei

Rated input voltage [V]

AC input: 100 V AC to 240 V AC, 50/60 Hz

Memory

512 MB

Input voltage range [V]

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

Types of fans

Built-in

PoE

Not supported

Products Status

New

Static power consumption [W]

21.8 W

Eth Management port

Not supported

Weight with packaging [kg(lb)]

3.3 kg (7.28 lb)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Noise at normal temperature (acoustic power) [dB(A)]

39 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)]

27.2 dB(A)

MTTR [hour]

2 hour

Redundant power supply

Not supported

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

PN

98011597

Certification

EMC certification, Safety certification, Manufacturing certification

Service port surge protection [kV]

Common mode: 7 kV

Maximum input current [A]

2 A

Number of power slots

0

Power supply surge protection [kV]

6 kV in differential mode, 6 kV in common mode

Model

S5735-L24T4X-IA1

Weight without packaging [kg(lb)]

2.5 kg (5.51 lb)

Number of fans modules

1

Chassis height [U]

1

Wide [mm]

442.0mm
