Weight (with packaging) | 4.08 kg (9 lb) |
---|---|
Maximum power consumption (100% throughput) | 34 W |
Operating temperature | -5C to +45C (23F to 113F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F). The operating temperature of the switch is -5C to +40C (23F to 104F) when it uses GE SFP optical modules with 40 km or longer transmission distance. When SFP+ copper cables or dedicated stack cables are used to set up a stack, the switch can operate in the following temperature range: -5C to +45C (23F to 113F) (installed in the ventilation cabinet, with the wind speed of at least 40 LFM) When SFP+ AOC cables or 10GE SFP+ optical modules are used to set up a stack, the switch can operate in the following temperature range: -5C to +45C (23F to 113F) (installed in the ventilation cabinet shipped with fans with a fan speed of at least 200 LFM) |
Products Status | New |
Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC |
Storage temperature | -40C to +70C (-40F to +158F) |
Chassis height [U] | 1 |
Service port surge protection | Common mode: 7 kV |
Power supply surge protection | 6 kV in differential mode, 6 kV in common mode |
PoE | Not supported |
PN | 98010914 |
Mean time to repair (MTTR) | 2 hours |
Memory (RAM) | 1 GB |
Availability | > 0.99999 |
Noise under normal temperature (27C, sound power) | Noise-free (no fans) |
RPS | Not supported |
Flash | 512 MB in total. To view the available flash memory size, run thedisplay versioncommand. |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Model | S5735-L24T4S-A |
Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
RTC | Not supported |
Certification | EMC certification, Safety certification, Manufacturing certification |
Mean time between failures (MTBF) | 111.94 years |
Wide [mm] | 442.0mm |
Stack ports | Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions) |
Warranty | 1 Year |
Brand | Huawei |
Height [mm] | 43.6 mm |
Maximum voltage range | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz, High-Voltage DC input: 190 V DC to 290 V DC |
Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption | 28 W |
Depth [mm] | 220.0mm |

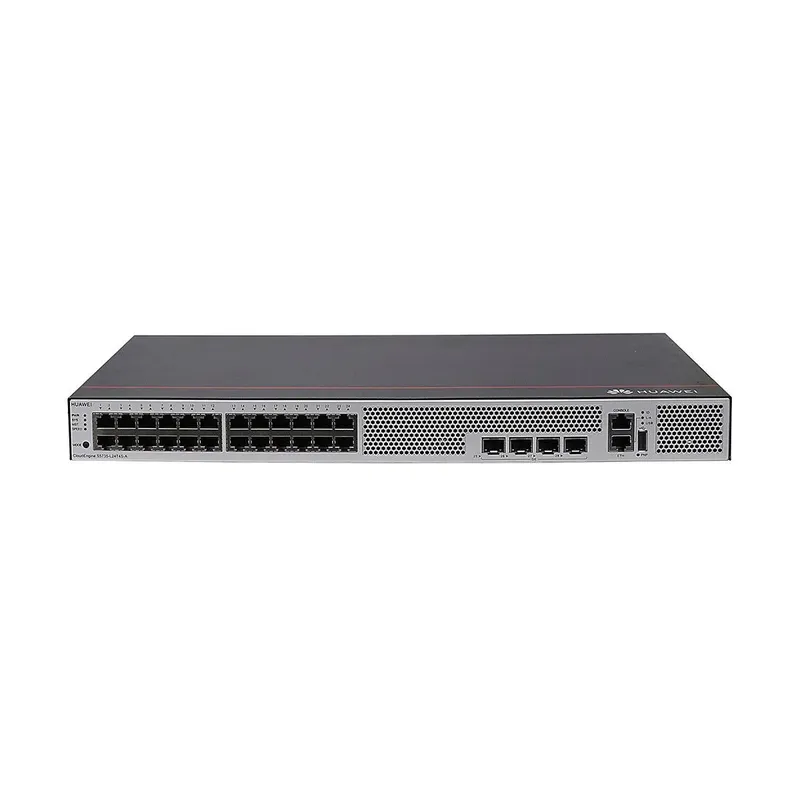

Huawei S5735-L24T4S-A (24 x 10/100/1000Base-T ports, 4 x GE SFP ports)
$Quote1 Piece(MOQ)











Q1: ls the product original ?
A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.
Q2. Payment methods?
We accept T/T, PayPal, Alibaba ect.
Q3. Shipping methods?
We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.
Q4. How long is the lead time?
Usually 1-3 working days after payment. Feel free to send me exact models for checking.
Q5. How long is the warranty period?
Different products have different warranty periods. Usually 1~3 years warranty.
