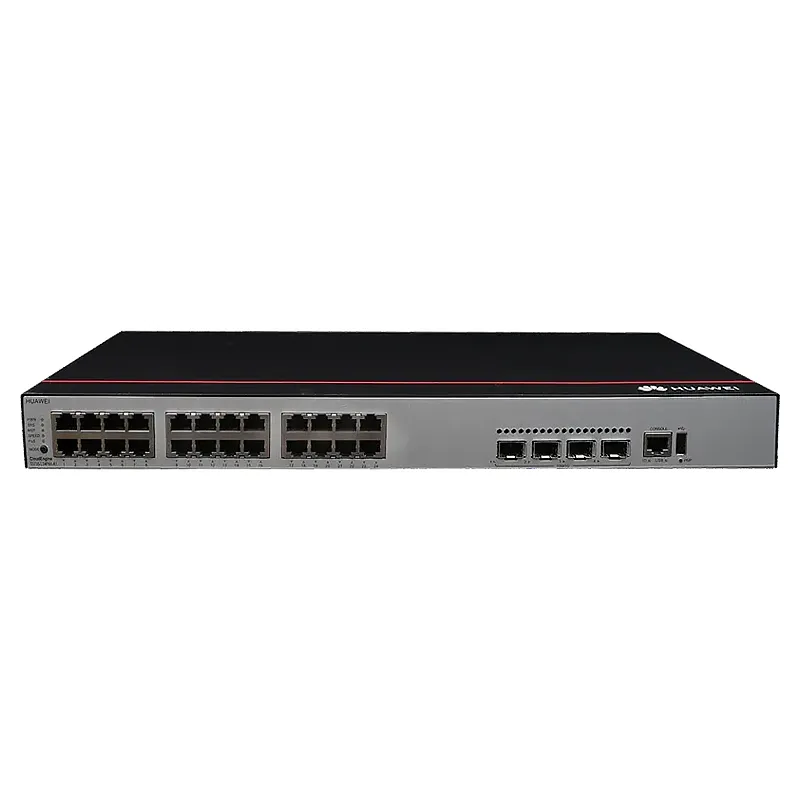

Huawei S5735-L24P4X-A1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power)

$Quote1 Piece(MOQ)

SKU S5735-L24P4X-A1 Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Memory 512 MB
Redundant power supply Not supported
Products Status New
Maximum input current [A] 6 A
USB Supported
Power supply mode AC built-in
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Chassis height [U] 1
Short-term operating temperature [C(F)] -5C to +55C (23F to 131F) at an altitude of 0-1800 m (0-5906 ft.)
PoE Supported
PN 98011318
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC
Eth Management port Not supported
Availability >0.99999
RPS input Not supported
Noise at normal temperature (acoustic pressure) [dB(A)] 38.2 dB(A)
Static power consumption [W] 30.2 W
Number of card slots 0
Model S5735-L24P4X-A1
MTBF [year] 52.74 year
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Number of power slots 0
Weight without packaging [kg(lb)] 2.96 kg (6.53 lb)
RTC Not supported
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC
Console port RJ45
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Certification EMC certification, Safety certification, Manufacturing certification
Service port surge protection [kV] 98011318: Common mode: 7 kV, 98011318-001: Common mode: 2 kV
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
MTTR [hour] 2 hour
Airflow direction Air intake from left and front, air exhaustion from right
Maximum heat dissipation [BTU/hour] Not providing the PoE function: 183.57, 100% PoE loads: 1480.17
Wide [mm] 442.0mm
Maximum power consumption [W] Not providing the PoE function: 53.8 W, 100% PoE loads: 433.8 W (PoE: 380 W)
Flash memory 512 MB
Warranty 1 Year
Typical heat dissipation [BTU/hour] 144.67 BTU/hour
Brand Huawei
Power supply surge protection [kV] 6 kV in differential mode, 6 kV in common mode
Weight with packaging [kg(lb)] 3.93 kg (8.66 lb)
Height [mm] 43.6 mm
Types of fans Built-in
Typical power consumption [W] 42.4 W
Long-term operating temperature [C(F)] -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature [C(F)] -40C to +70C (-40F to +158F)
Noise at normal temperature (acoustic power) [dB(A)] 50 dB(A)
Number of fans modules 2
