| Weight (with packaging) | 4.31 kg (9. lb) |
|---|---|
| Maximum power consumption (100% throughput, full speed of fans) | Not providing the PoE function: 53 W, 100% PoE loads: 451 W (PoE: 380 W) |
| Operating temperature | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F). |
| Products Status | New |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Chassis height [U] | 1 |
| Service port surge protection | Common mode: 7 kV |
| Power supply surge protection | 6 kV in differential mode, 6 kV in common mode |
| PoE | Supported |
| PN | 98010924 |
| Mean time to repair (MTTR) | 2 hours |
| Memory (RAM) | 1 GB |
| Availability | > 0.99999 |
| Noise under normal temperature (27C, sound power) | < 57.7 dB(A) |
| RPS | Not supported |
| Flash | 512 MB in total. To view the available flash memory size, run thedisplay versioncommand. |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Model | S5735-L24P4S-A |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| RTC | Not supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
| Mean time between failures (MTBF) | 92.2 years |
| Short-term operating temperature | -5C to +55C (23F to 131F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 50C (122F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 50C (122F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 50C (122F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0C (32F). The maximum distance of optical modules used in these conditions cannot exceed 10 km. |
| Wide [mm] | 442.0mm |
| Stack ports | Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions) |
| Warranty | 1 Year |
| Brand | Huawei |
| Height [mm] | 43.6 mm |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC |
| Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption | 39 W |
| Depth [mm] | 220.0mm |

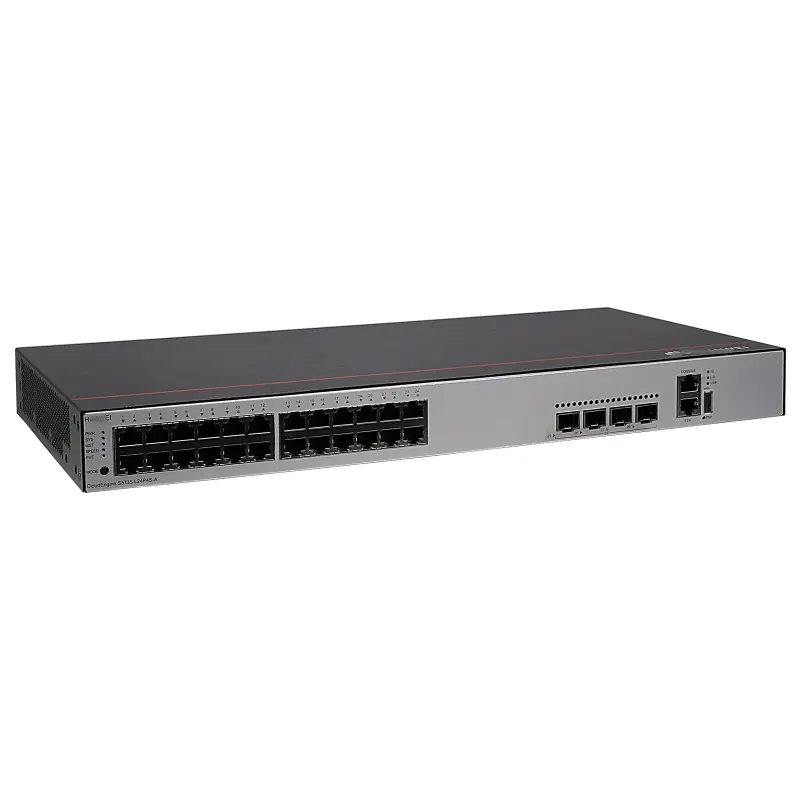

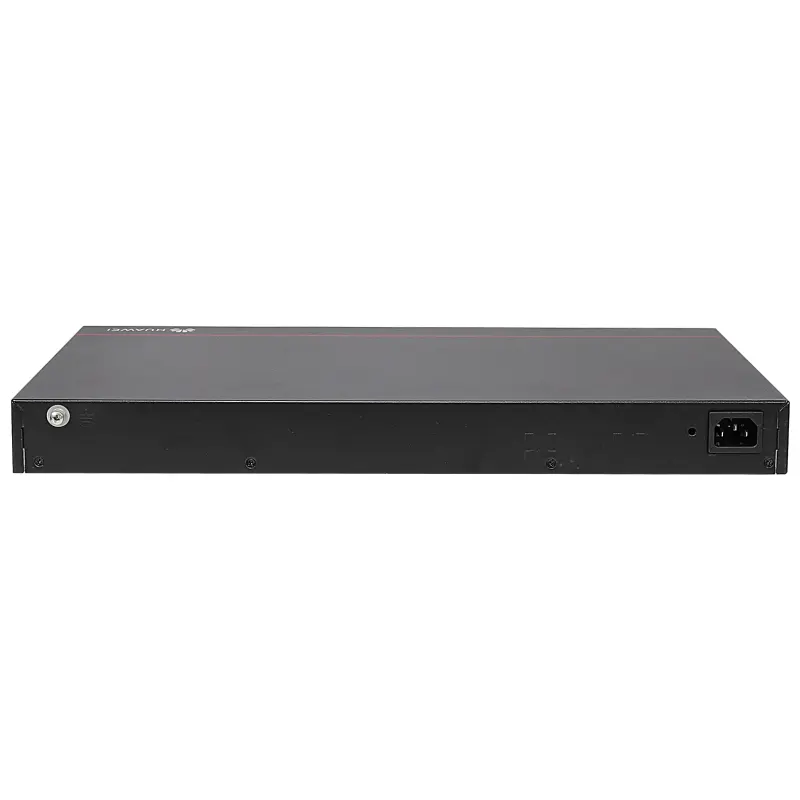

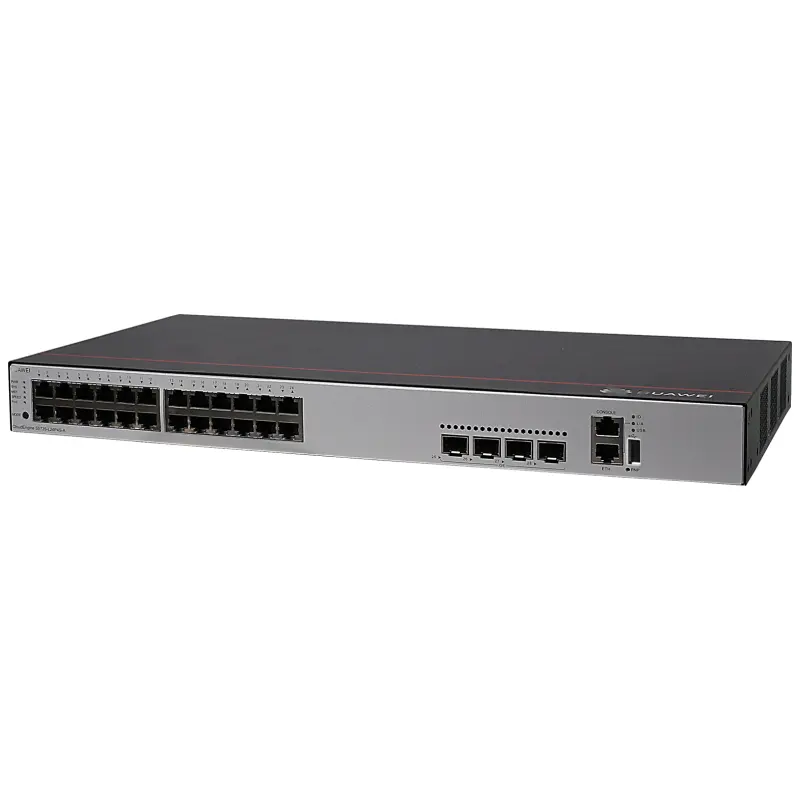

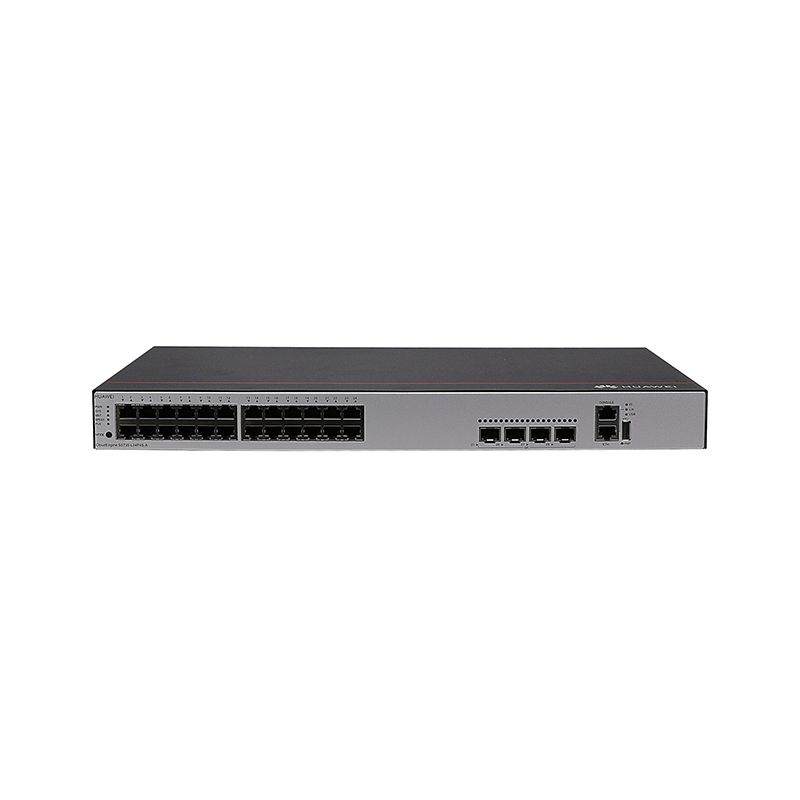

Huawei S5735-L24P4S-A (24 x 10/100/1000Base-T ports, 4 x GE SFP ports, PoE+)
**Huawei S5735-L24P4S-A Switch**
A high-density, enterprise-grade Ethernet switch featuring **24×10/100/1000Base-T ports** and **4×GE SFP slots** for flexible connectivity. Supports **Power over Ethernet (PoE)**, enabling simultaneous data and power delivery to devices like IP cameras, APs, and VoIP phones. Combines cost-efficient cabling, scalable performance, and robust reliability for medium to large networks. **Unique selling points**: High PoE port density, hybrid copper/fiber uplinks, and energy-efficient design ideal for smart offices, campuses, or IoT deployments. Simplifies infrastructure, reduces deployment costs, and ensures seamless scalability.
$Quote1 Piece (MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Q1: ls the product original ?
A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.
Q2. Payment methods?
We accept T/T, PayPal, Alibaba ect.
Q3. Shipping methods?
We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.
Q4. How long is the lead time?
Usually 1-3 working days after payment. Feel free to send me exact models for checking.
Q5. How long is the warranty period?
Different products have different warranty periods. Usually 1~3 years warranty.
