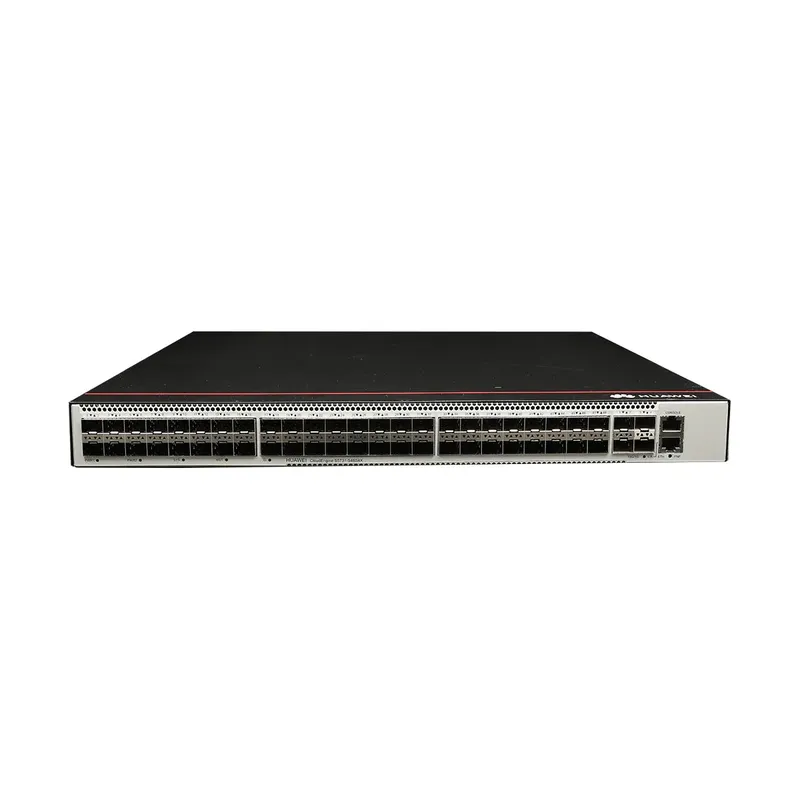

Huawei S5731-S48S4X(48*GE SFP ports, 4*10GE SFP+ ports, without power module)

$Quote1 Pieces ( MOQ )

Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

PN

98011805

Model

S5731-S48S4X

Brand

Huawei

Warranty

1 Year

Products Status

New

Height [mm]

43.6 mm

Depth [mm]

420.0mm

Wide [mm]

442.0mm

Chassis height [U]

1

Dimensions with packaging (H x W x D) [mm(in.)]

185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)

Weight without packaging [kg(lb)]

5.12 kg (11.29 lb)

Weight with packaging [kg(lb)]

7.65 kg (16.87 lb)

Typical power consumption [W]

93.69 W

Typical heat dissipation [BTU/hour]

319.68 BTU/hour

Maximum power consumption [W]

128.89 W (150 W AC or 180 W DC), 141.96 W (600 W AC)

Maximum heat dissipation [BTU/hour]

439.79 (150 W AC or 180 W DC), 484.38 (600 W AC)

Static power consumption [W]

50.44 W

MTBF [years]

64.97 years

MTTR [hours]

2 hours

Availability

> 0.99999

Noise at normal temperature (acoustic power) [dB(A)]

45.47 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)]

31.79 dB(A)

Number of card slots

0

Number of power slots

2

Number of fans modules

3

Redundant power supply

1+1, Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.

Long-term operating temperature [°C(°F)]

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

Short-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature [°C(°F)]

-40°C to +70°C (-40°F to +158°F)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

Pluggable power supply

Rated input voltage [V]

AC input: 100 V AC to 240 V AC, 50/60 Hz,
High-voltage DC input: 240 V DC,
DC input: –48 V DC to –60 V DC

Input voltage range [V]

AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz,
High-voltage DC input: 190 V DC to 290 V DC,
DC input: –38.4 V DC to –72 V DC

Maximum input current [A]

The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

Memory

2 GB

Flash memory

The physical space is 1 GB. You can run the display version command to view the actual available space.

Console port

RJ45

Eth Management port

RJ45

USB

Not supported

RTC

Supported

RPS input

Not supported

Service port surge protection [kV]

Power supply surge protection [kV]

Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode,
Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

Ingress protection level (dustproof/waterproof)

IP20

Types of fans

Built-in

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Airflow direction

Air intake from left, front and right, air exhaustion from behind

PoE

Not supported

Certification

EMC certification, Safety certification, Manufacturing certification
