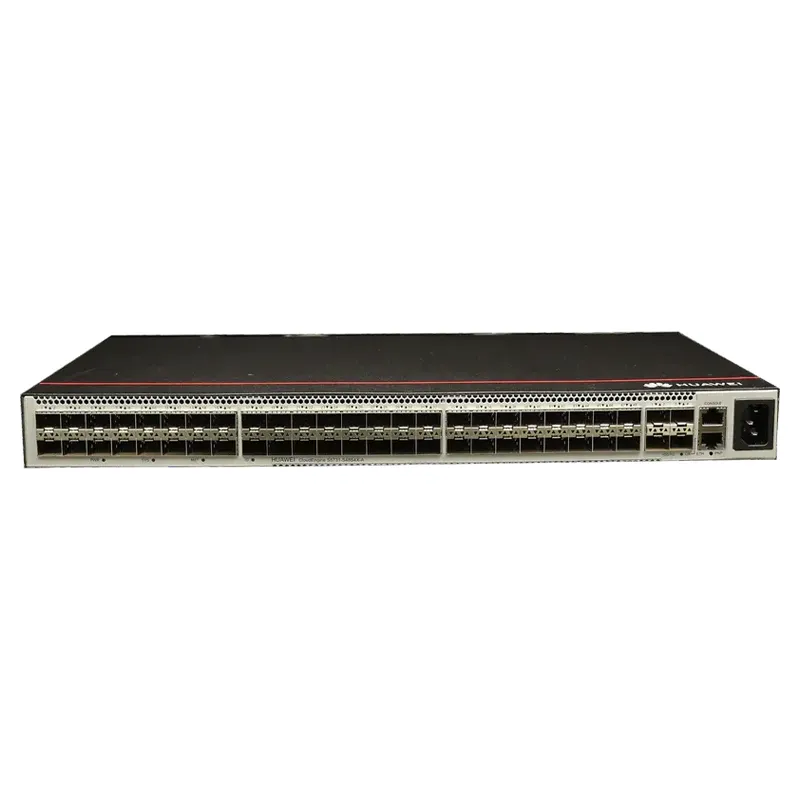

Huawei S5731-S48S4X-A(48*GE SFP ports, 4*10GE SFP+ ports, AC power, front access)

$Quote1 Piece(MOQ)

SKU S5731-S48S4X-A Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Airflow direction

Air intake from left and front, air exhaustion from right

Maximum heat dissipation [BTU/hour]

413.00 BTU/hour

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Short-term operating temperature [C(F)]

-5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature [C(F)]

-40C to +70C (-40F to +158F)

Warranty

1 Year

Long-term operating altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Console port

RJ45

Long-term operating temperature [C(F)]

-5C to +45C (23F to 113F) at an altitude of 0-1800 m (0-5906 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Typical power consumption [W]

87.89 W

Height [mm]

43.6 mm

Flash memory

The physical space is 1 GB. You can run the display version command to view the actual available space.

Power supply mode

AC built-in

USB

Not supported

Number of card slots

0

Availability

> 0.99999

RPS input

Not supported

Depth [mm]

220.0mm

Typical heat dissipation [BTU/hour]

299.89 BTU/hour

RTC

Supported

Maximum power consumption [W]

121.04 W

MTTR [hours]

2 hours

Brand

Huawei

Rated input voltage [V]

– AC input: 100 V AC to 240 V AC, 50/60 Hz

Memory

2 GB

Input voltage range [V]

– AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz

Types of fans

Built-in

PoE

Not supported

Products Status

New

Static power consumption [W]

47.28 W

Eth Management port

RJ45

Weight with packaging [kg(lb)]

4.85 kg (10.69 lb)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

Noise at normal temperature (acoustic power) [dB(A)]

41.42 dB(A)

Noise at normal temperature (acoustic pressure) [dB(A)]

27.74 dB(A)

Redundant power supply

Not supported

Dimensions with packaging (H x W x D) [mm(in.)]

90 mm x 550 mm x 355 mm (3.54 in. x 21.65 in. x 13.98 in.)

MTBF [years]

31.39 years

PN

98011801

Ingress protection level (dustproof/waterproof)

IP20

Certification

EMC certification, Safety certification, Manufacturing certification

Service port surge protection [kV]

Maximum input current [A]

3 A

Number of power slots

0

Power supply surge protection [kV]

6 kV in differential mode; 6 kV in common mode

Model

S5731-S48S4X-A

Weight without packaging [kg(lb)]

3.49 kg (7.69 lb)

Number of fans modules

2

Chassis height [U]

1

Wide [mm]

442.0mm
