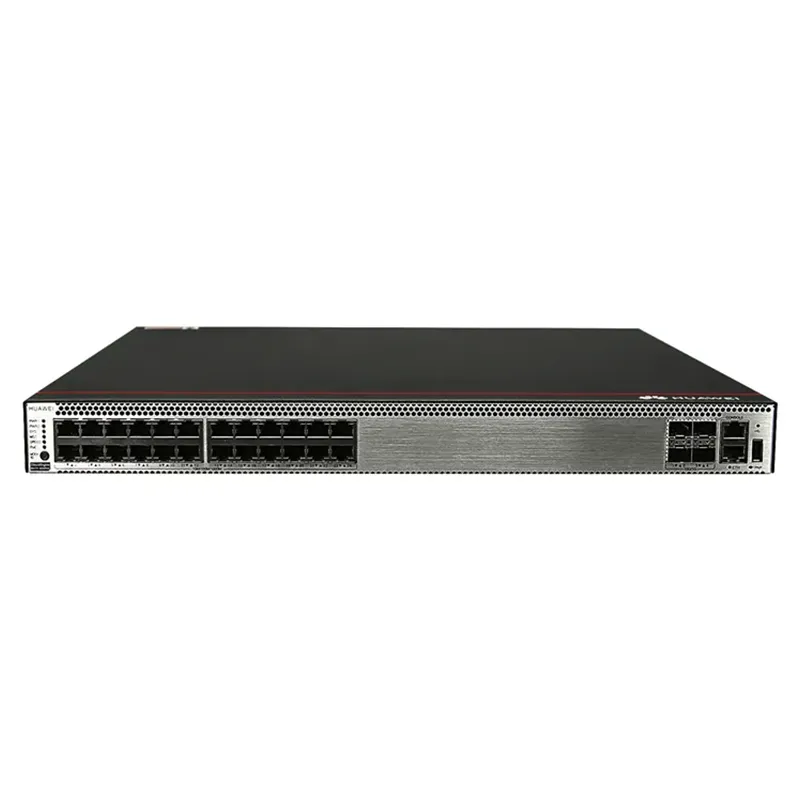

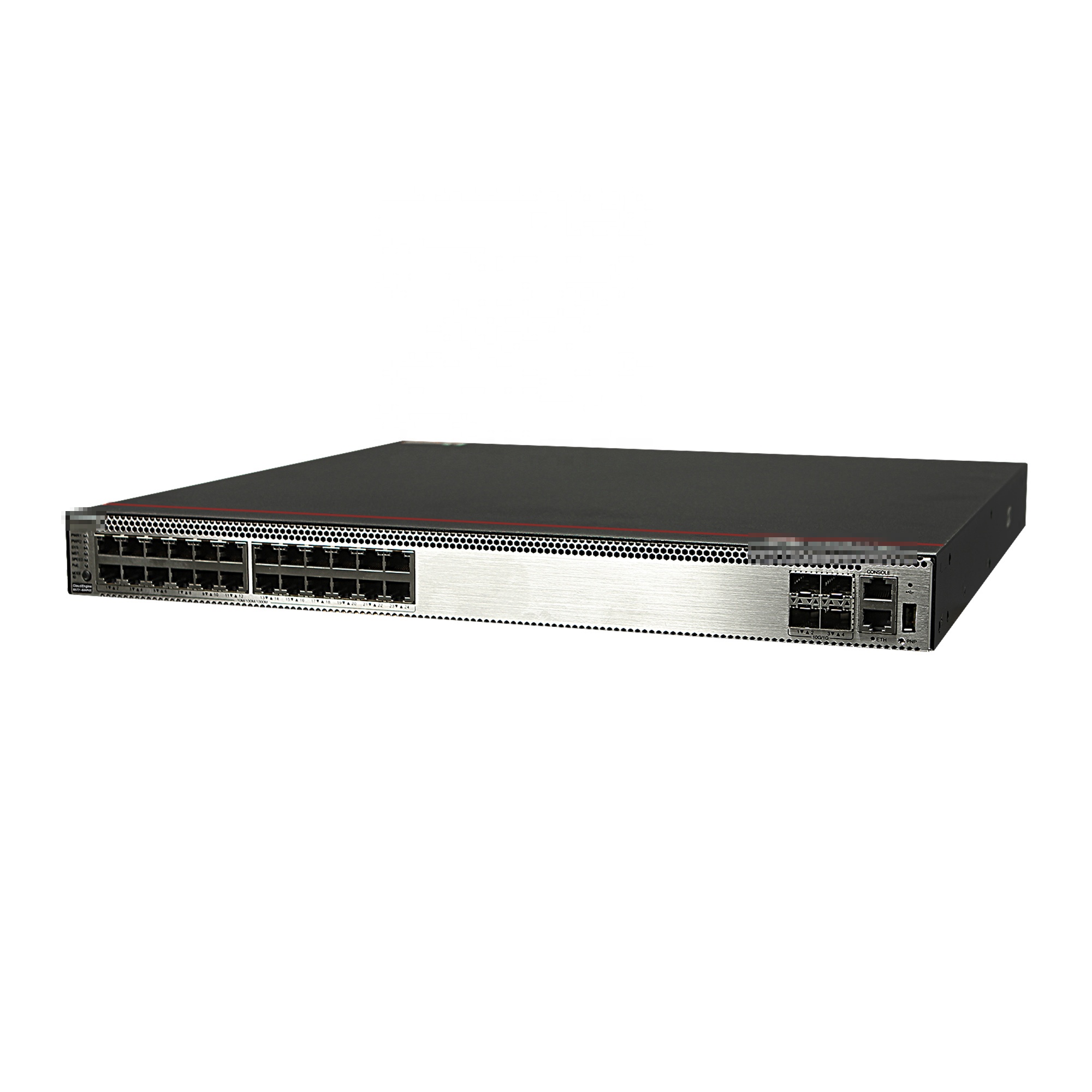

Huawei S5731-S24P4X (24*10/100/1000BASE-T ports,4*10GE SFP+ ports,PoE+, without power module)

$Quote1 Piece(MOQ)

SKU S5731-S24P4X Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Weight (with packaging)

8.6 kg (18.96 lb)

Power supply surge protection

Using AC power modules: 6 kV in differential mode, 6 kV in common mode, Using DC power modules: 2 kV in differential mode, 4 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)

Mean time between failures (MTBF)

57.21 years

Flash

1 GB in total. To view the available flash memory size, run thedisplay version command.

Warranty

1 Year

Operating temperature

-5C to +45C (23F to 113F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F).

Height [mm]

43.6 mm

Relative humidity

5% to 95%, noncondensing

Typical power consumption (30% of traffic load, tested according to ATIS standard)

95 W

RPS

Not supported

Operating altitude

0-5000 m (0-16404 ft.)

Noise under normal temperature (27C, sound power)

< 62.3 dB(A)

Availability

> 0.99999

Depth [mm]

420.0mm

RTC

Supported

Rated voltage range

AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz, High-Voltage DC input: 240 V DC, DC input: -48 V DC to -60 V DC

Mean time to repair (MTTR)

2 hours

Storage temperature

-40C to +70C (-40F to +158F)

Maximum voltage range

AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, High-Voltage DC input: 190 V DC to 290 V DC, DC input: -38.4 V DC to -72 V DC

Brand

Huawei

Maximum power consumption (100% throughput, full speed of fans)

Not providing the PoE function: 121 W, 100% PoE loads: 977 W (PoE: 720 W)

PoE

Supported

Products Status

New

Memory (RAM)

2 GB

Service port surge protection

Common mode: 6 kV

Stack ports

10GE SFP+ ports on the front panel

PN

02353AHX

Certification

EMC certification, Safety certification, Manufacturing certification

Model

S5731-S24P4X

Chassis height [U]

1

Wide [mm]

442.0mm
