| Weight (with packaging) | 8.55 kg (18.85 lb) |
|---|---|
| Maximum power consumption (100% throughput, full speed of fans) | 130 W |
| Operating temperature | -5C to +40C (23F to 104F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F). |
| Products Status | New |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz, DC input: -48 V DC to -60 V DC |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Chassis height [U] | 1 |
| Service port surge protection | Common mode: 6 kV |
| Power supply surge protection | Using AC power modules: 6 kV in differential mode, 6 kV in common mode, Using DC power modules: 2 kV in differential mode, 4 kV in common mode |
| PoE | Not supported |
| PN | 02353VAD |
| Mean time to repair (MTTR) | 2 hours |
| Memory (RAM) | 4 GB |
| Availability | > 0.99999 |
| Noise under normal temperature (27C, sound power) | < 59.9 dB(A) |
| RPS | Not supported |
| Flash | 1 GB in total. To view the available flash memory size, run thedisplay version command. |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Model | S5731-H48T4XC-B |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
| RTC | Supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
| Mean time between failures (MTBF) | 55.31 years |
| Wide [mm] | 442.0mm |
| Stack ports | 10GE SFP+ ports on the front panel |
| Warranty | 1 Year |
| Brand | Huawei |
| Height [mm] | 43.6 mm |
| Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz, DC input: -38.4 V DC to -72 V DC |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 82.89 W |
| Depth [mm] | 420.0mm |

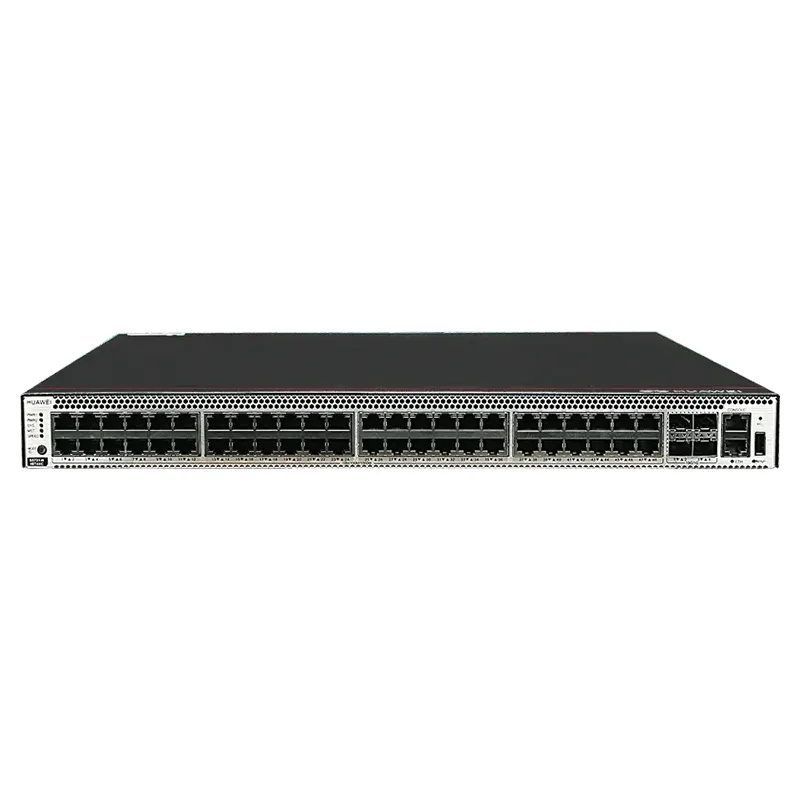

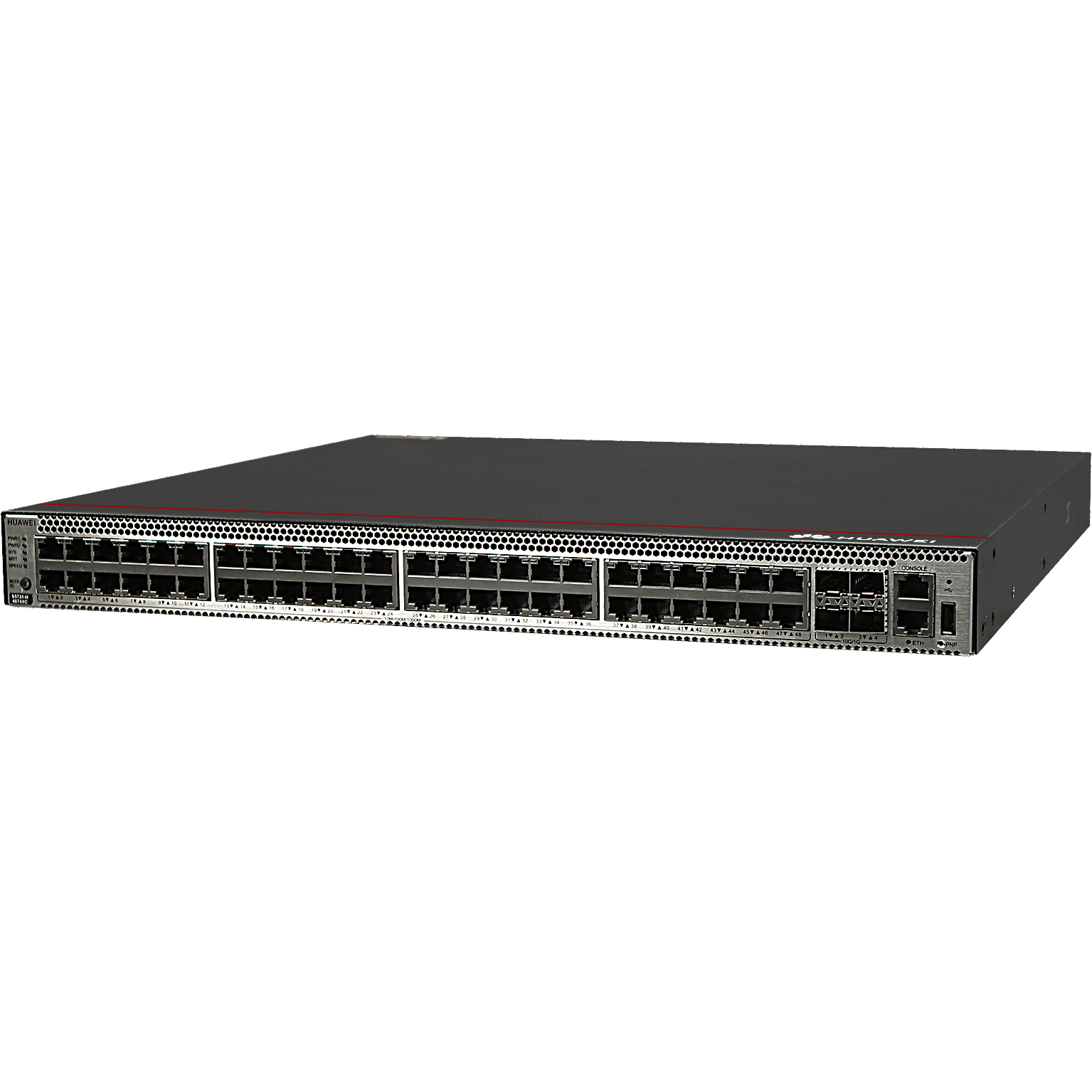

Huawei S5731-H48T4XC-B(48-ports 10/100/1000BASE-T, 4-ports 10GE SFP+, 2 power module slots, without power module equipped)
**Huawei S5731-H48T4XC-B** is a high-performance, scalable Ethernet switch designed for enterprise networks. It features **48×10/100/1000BASE-T ports** for versatile wired connectivity and **4×10G SFP+ uplinks** for high-speed data transfer, ideal for bandwidth-intensive tasks. The switch supports **dual power module slots** (modules sold separately), ensuring redundancy and uninterrupted operation. Its compact design optimizes rack space, while energy-efficient hardware minimizes operational costs. Key selling points include its hybrid port configuration for seamless copper/fiber integration, modular power flexibility, and enterprise-grade reliability for demanding network environments. Perfect for medium to large businesses needing robust, future-proof switching with easy scalability.
