| Weight (with packaging) | 4.7 kg (10.36 lb) |
|---|---|
| Maximum power consumption (100% throughput, full speed of fans) | 61.5 W |
| Operating temperature | 0C to 45C (32F to 113F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). |
| Products Status | New |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Service port surge protection | Common mode: 6 kV |
| Power supply surge protection | 6 kV in differential mode, 6 kV in common mode |
| PoE | Not supported |
| PN | 2359589 |
| Mean time to repair (MTTR) | 2 hours |
| Memory (RAM) | 2 GB |
| Availability | >0.99999 |
| Noise under normal temperature (27C, sound power) | < 49.3 dB(A) |
| RPS | Supported |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Model | S5720-52X-EI-AC |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.9 mm (1.72 in. x 17.4 in. x 8.85 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 237.3 mm (1.72 in. x 17.4 in. x 9.34 in.) |
| RTC | Supported |
| Certification | EMC certification, Safety certification, Manufacturing certification |
| Mean time between failures (MTBF) | 73.12 years |

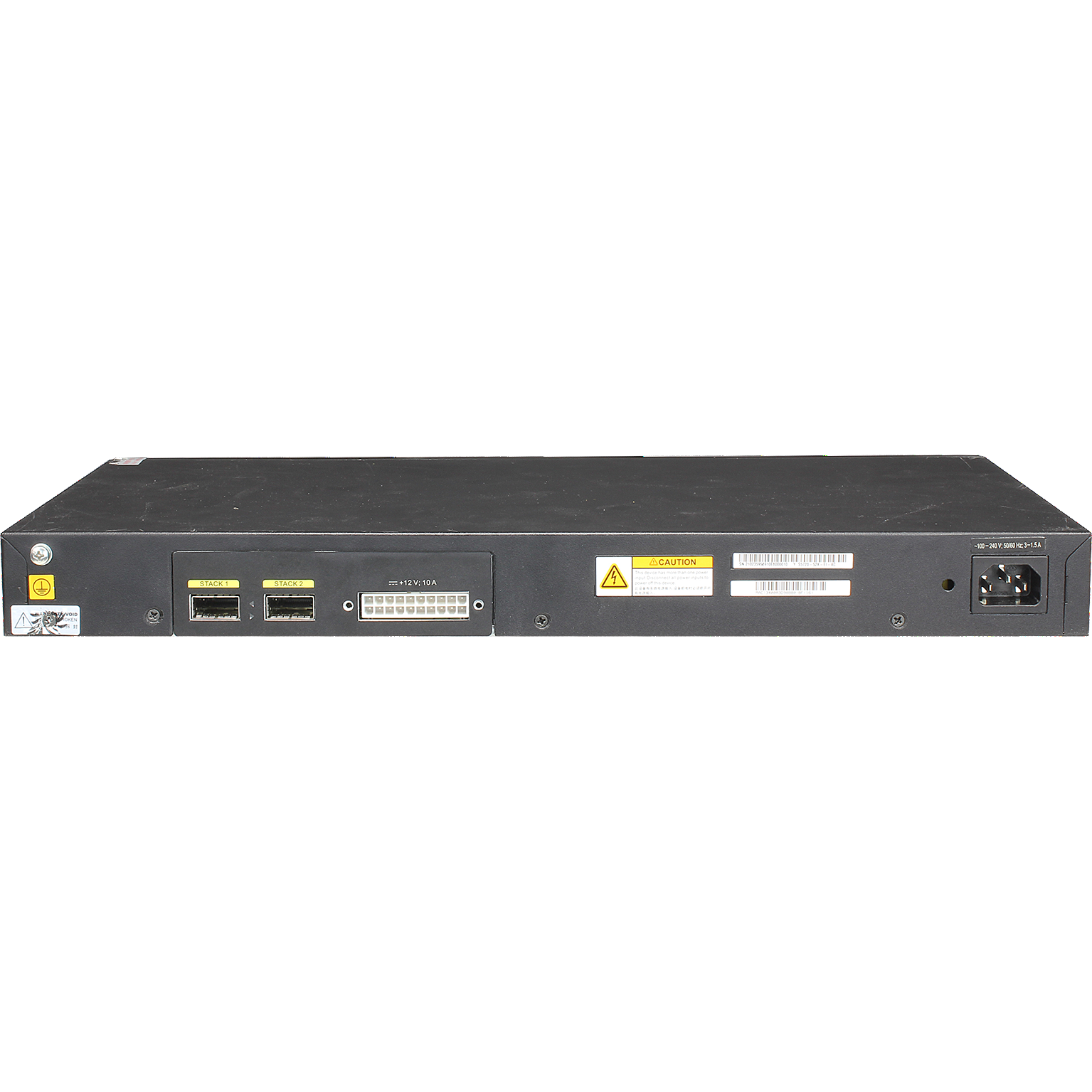

| Stack ports | Two fixed QSFP+ stack ports on the rear card |
| Warranty | 1 Year |
| Brand | Huawei |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption | 52.25 W |

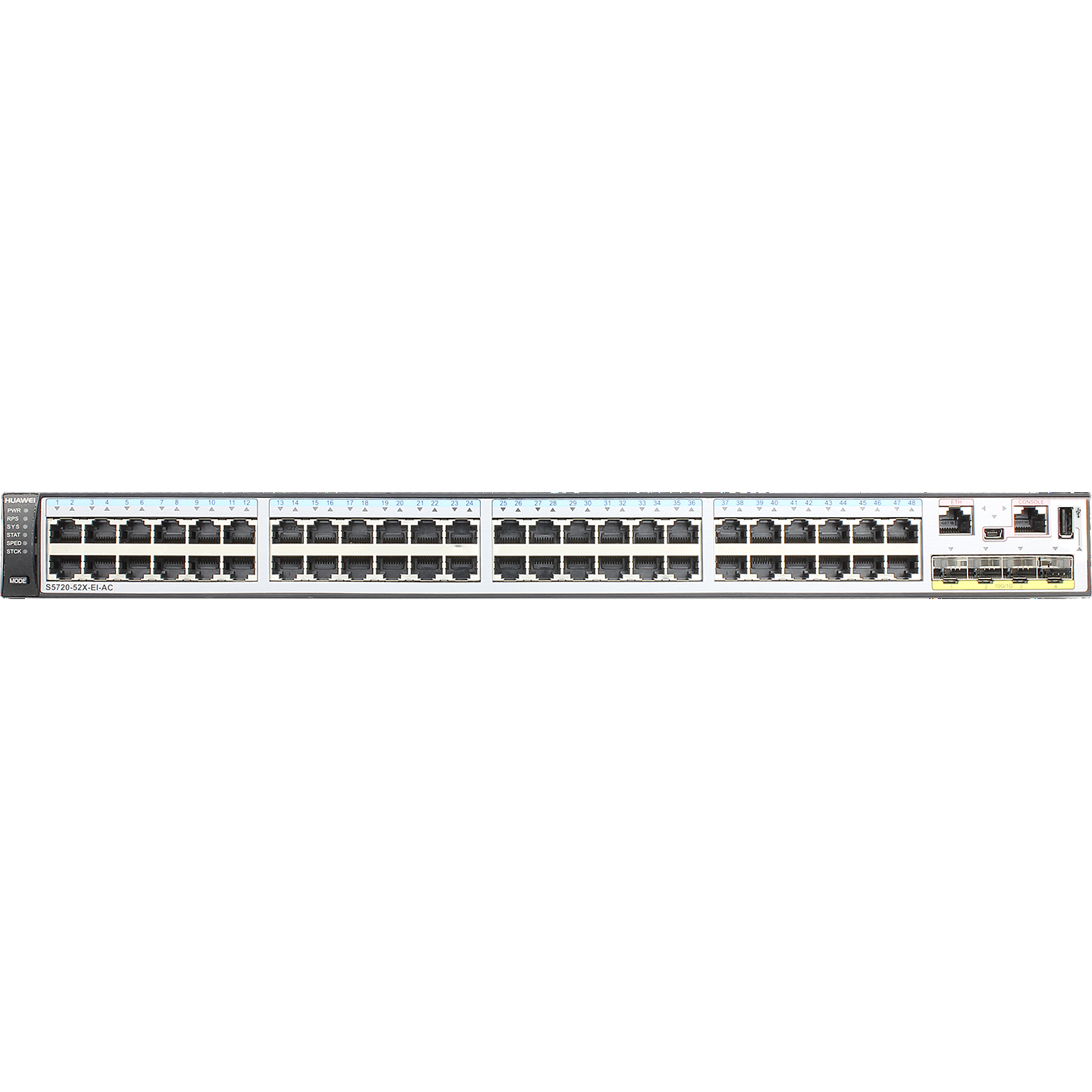

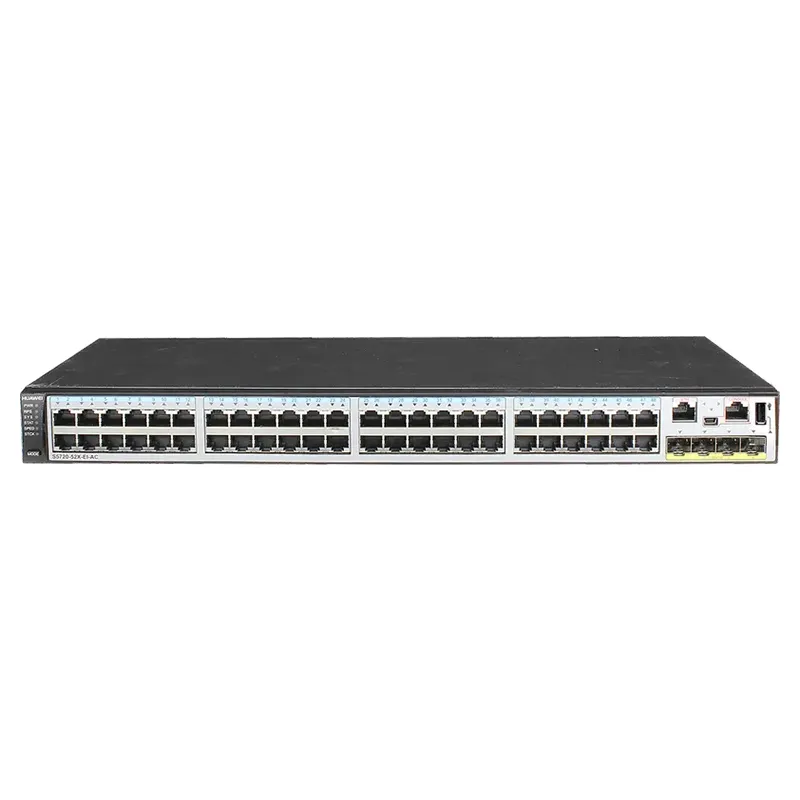

Huawei S5720-52X-EI-AC(48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,AC 110/220V)
$Quote1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Q1: ls the product original ?
A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.
Q2. Payment methods?
We accept T/T, PayPal, Alibaba ect.
Q3. Shipping methods?
We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.
Q4. How long is the lead time?
Usually 1-3 working days after payment. Feel free to send me exact models for checking.
Q5. How long is the warranty period?
Different products have different warranty periods. Usually 1~3 years warranty.
