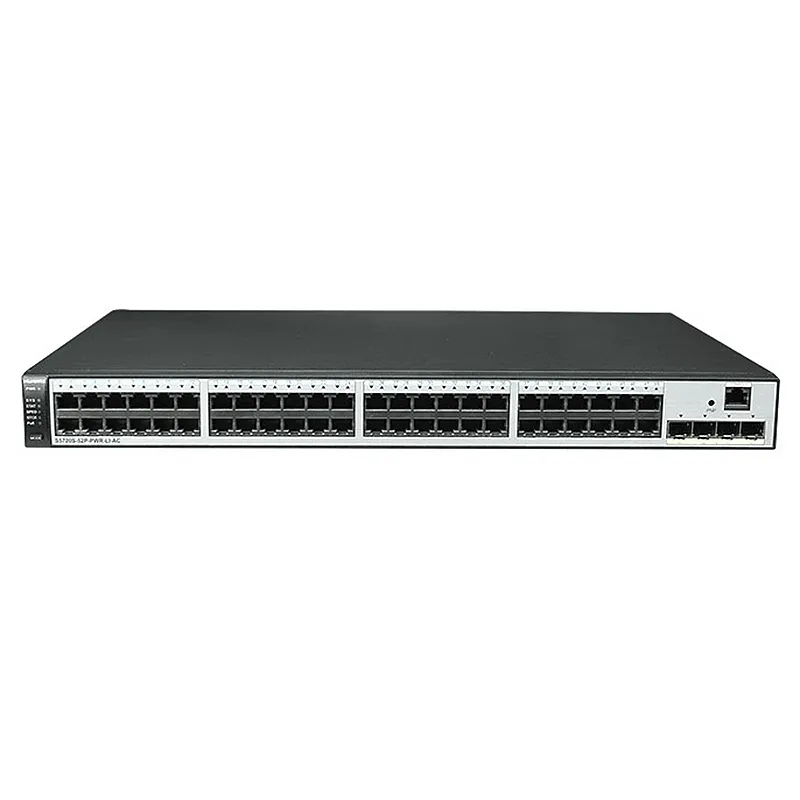

Huawei S5720-52P-LI-AC(48 Ethernet 10/100/1000 ports, 4 Gig SFP, AC power support, Overseas)

$Quote1 Pieces ( MOQ )

Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

PN

98010774

Model

S5720-52P-LI-AC

Brand

Huawei

Warranty

1 Year

Products Status

New

Memory (RAM)

512 MB

Flash

512 MB in total. To view the available flash memory size, run the?display version?command.

Mean time between failures (MTBF)

41 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

Common mode: ±7 kV

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 224.8 mm (1.72 in. x 17.4 in. x 8.85 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 233.8 mm (1.72 in. x 17.4 in. x 9.21 in.)

Weight (with packaging)

4.4 kg (9.7 lb)

Stack ports

Forty-eight 10/100/1000BASE-T ports and four 1000BASE-X ports

RTC

Not supported

RPS

Supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum power consumption (100% throughput, full speed of fans)

50.3 W

Typical power consumption (30% of traffic load) ·Tested according to ATIS standard ·EEE enabled ·No PoE power consumption

31.6 W

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.),
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 44.5 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)

Certification

EMC certification, Safety certification, Manufacturing certification
