| Maximum power consumption (100% throughput, full speed of fans) | 64 W |
|---|---|
| Operating temperature | 0C to 50C (32F to 122F) |
| Products Status | New |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Service port surge protection | Common mode: 2 kV |
| Power supply surge protection | 6 kV in differential mode, 6 kV in common mode |
| PoE | Not supported |
| PN | 2352353 |
| Mean time to repair (MTTR) | 2 hours |
| Memory (RAM) | 256 MB |
| Availability | > 0.99999 |
| Noise under normal temperature (27C, sound power) | Silent |
| RPS | Not supported |
| Flash | 32 MB |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Model | S5700-48TP-SI-AC |
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
| Weight | Empty: 5 kg (11.02 lb), Fully configured: 8.5 kg (18.74 lb) |
| Certification | EMC certification, Safety certification, Manufacturing certification |
| Mean time between failures (MTBF) | 34 years |
| Wide [mm] | 442.0mm |
| Stack ports | Two stack ports available on each stack card |
| Warranty | 1 Year |
| Brand | Huawei |
| Height [mm] | 43.6 mm |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Depth [mm] | 420.0mm |

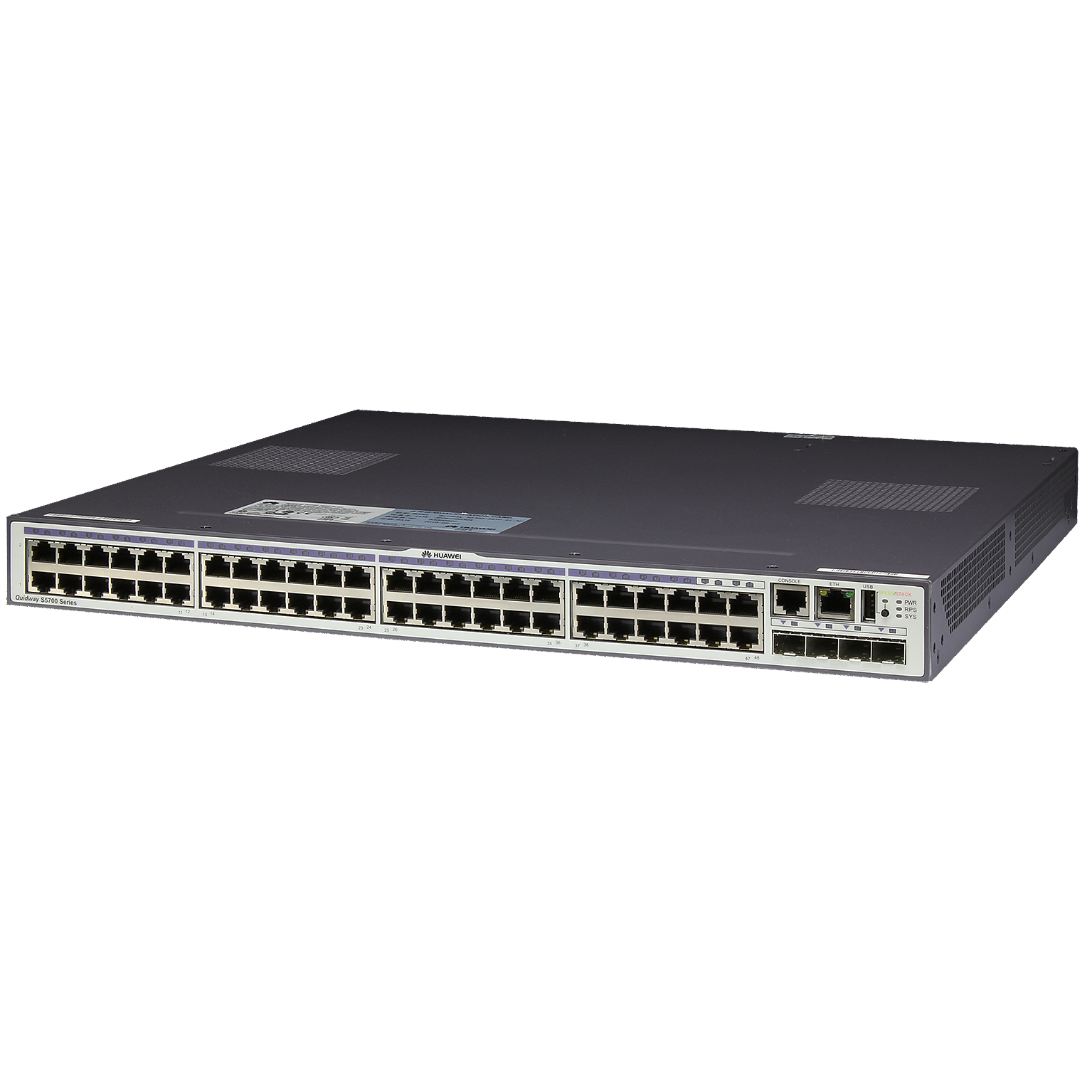

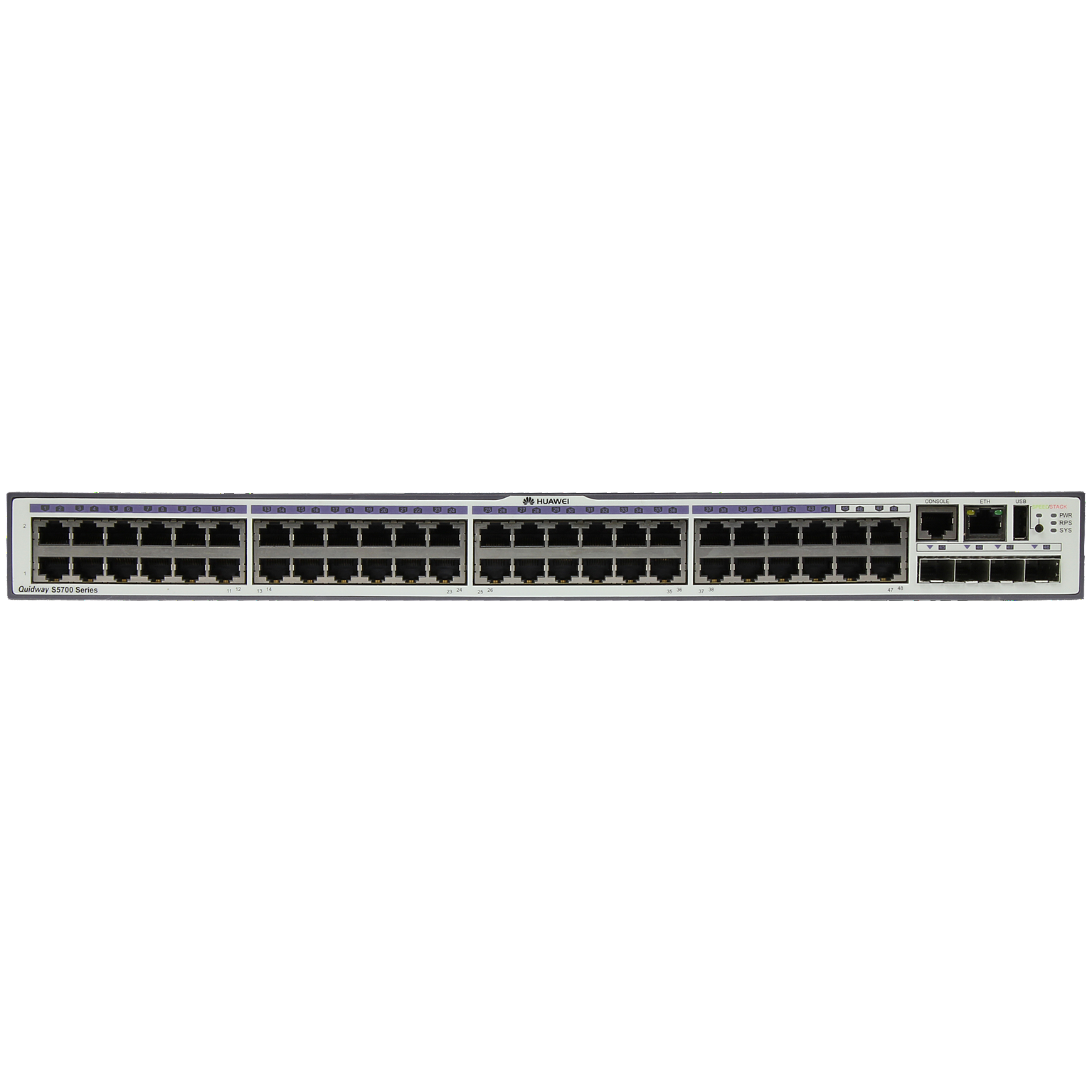

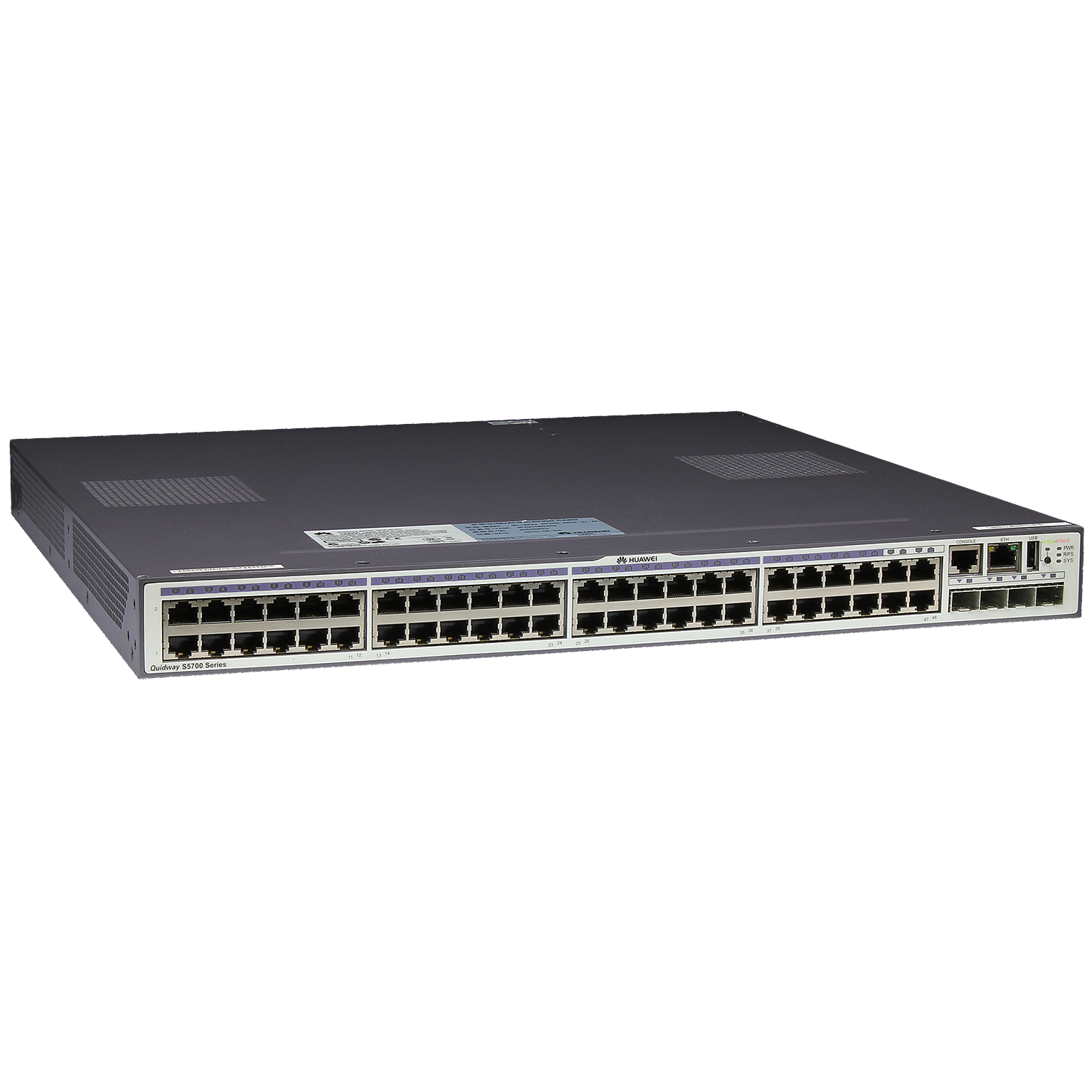

Huawei S5700-48TP-SI-AC(supports 48 10/100/1000BASE-T ports, 4 GE SFP combo ports, fixed AC power)
The Huawei S5700-48TP-SI-AC is a high-performance, energy-efficient Layer 2 managed switch designed for scalable enterprise networks. Its 48×10/100/1000BASE-T ports and 4×GE SFP combo ports deliver flexible connectivity for copper or fiber uplinks, supporting seamless integration into diverse infrastructures. The fixed AC power supply ensures straightforward deployment, while advanced features like VLAN, QoS, and robust security protocols enhance network management and traffic prioritization. Built with Huawei’s proprietary energy-saving technology, it reduces power consumption without compromising reliability. Ideal for medium to large businesses, its key selling points include high port density, versatile connectivity options, enterprise-grade durability, and cost-effective operation, making it a future-proof solution for demanding networking environments.
