Weight (with packaging) | 1.3 kg (2.87 lb) |
---|---|
Maximum power consumption (100% throughput) | 11.5 W |
Operating temperature | 0C to 45C (32F to 113F) at an altitude of 0-1800 m (0-5906 ft.), NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). |
Products Status | New |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
Storage temperature | -40C to +70C (-40F to +158F) |
Service port surge protection | Common mode: 6 kV |
Power supply surge protection | 6 kV in differential mode, 6 kV in common mode |
PoE | Not supported |
PN | 2354036 |
Mean time to repair (MTTR) | 2 hours |
Memory (RAM) | 256 MB |
Availability | > 0.99999 |
Noise under normal temperature (27C, sound power) | Noise-free (no fans) |
RPS | Not supported |
Flash | 200 MB |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Model | S5700-10P-LI-AC |
Dimensions (H x W x D) | 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.8 in. x 7.1 in.) |
RTC | Not supported |
Certification | EMC certification, Safety certification, Manufacturing certification |
Mean time between failures (MTBF) | 44.41 years |
Wide [mm] | 250.0mm |
Stack ports | Not supported |
Warranty | 1 Year |
Brand | Huawei |
Height [mm] | 43.6 mm |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption | 9.71 W |
Depth [mm] | 180.0mm |

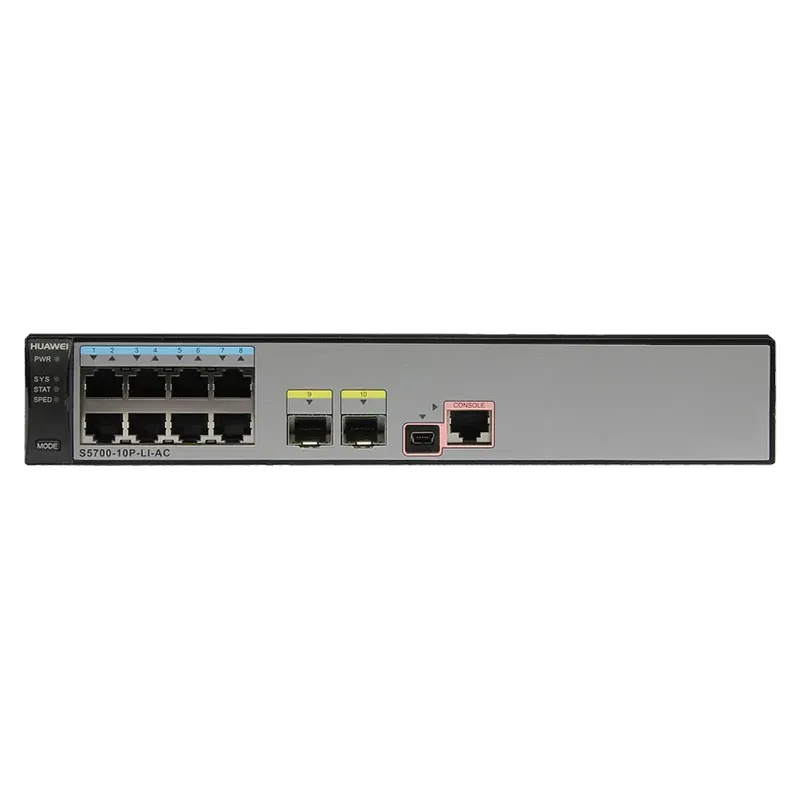

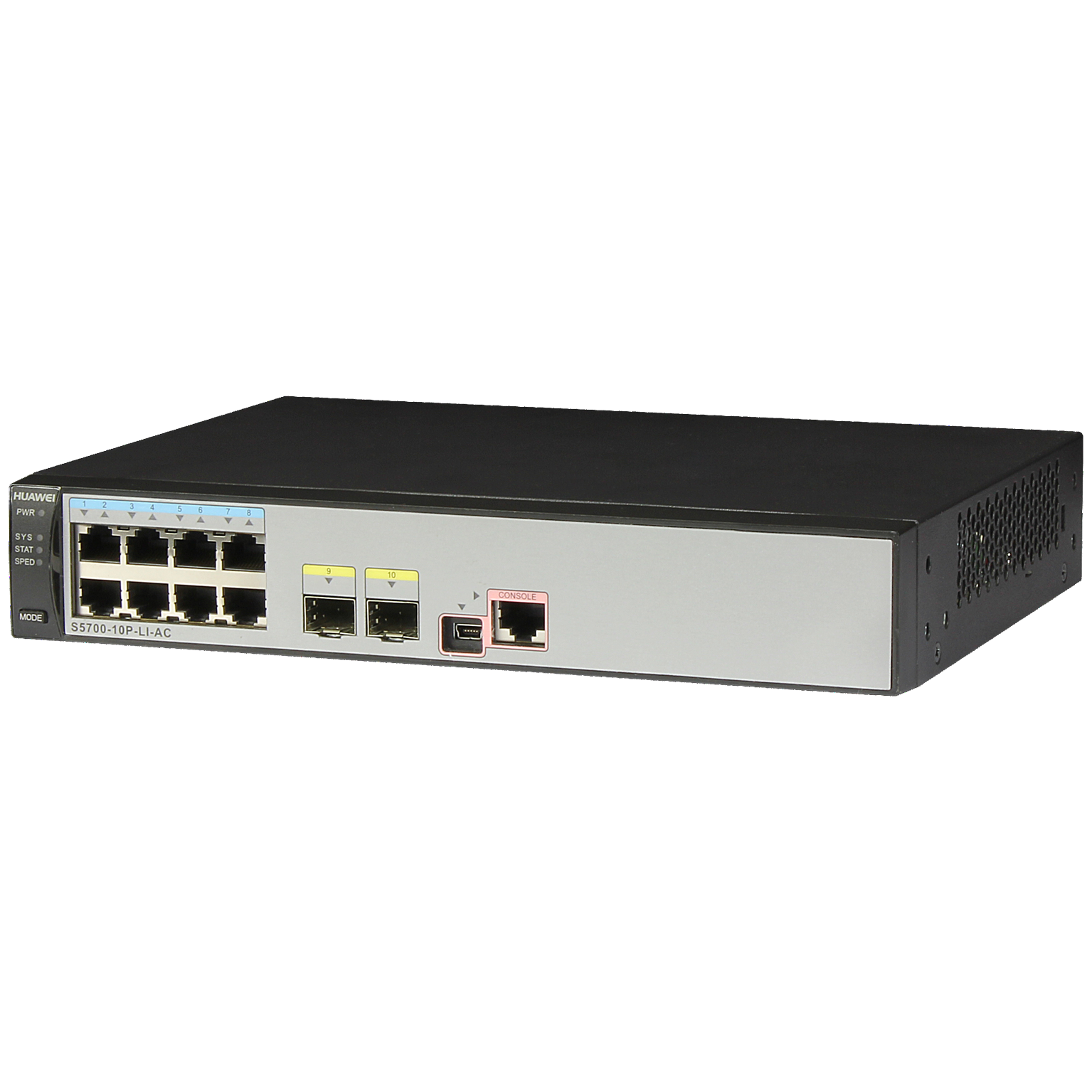

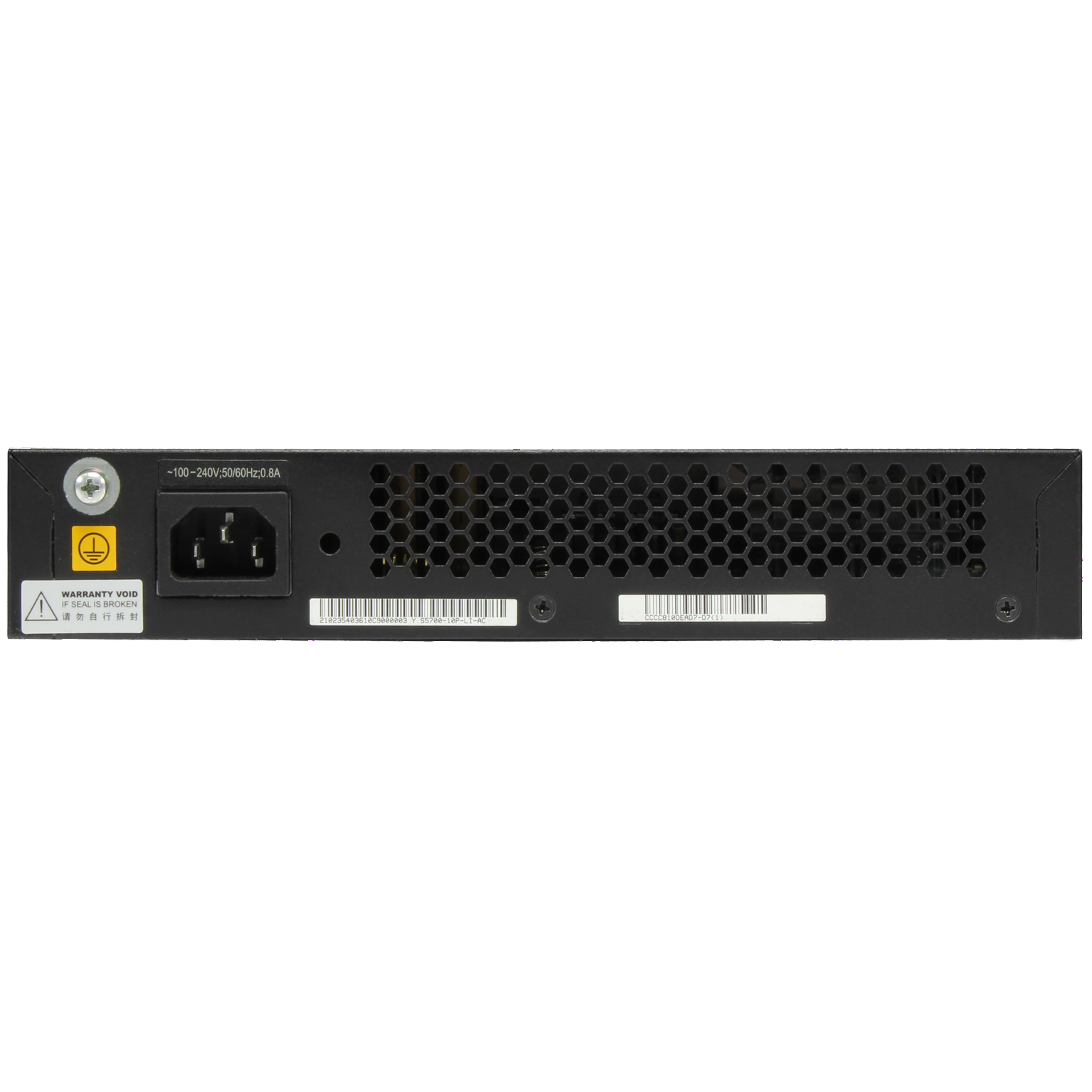

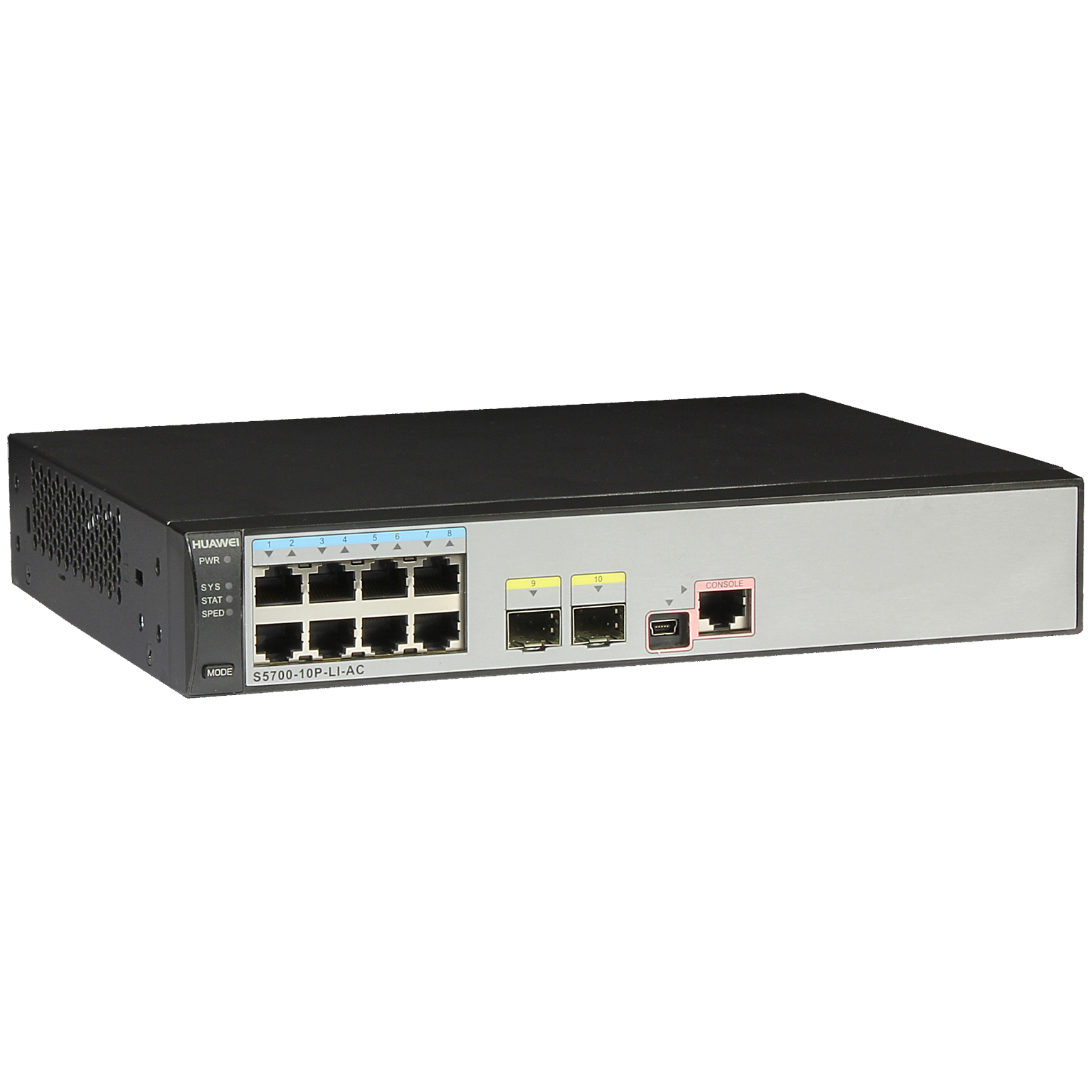

Huawei S5700-10P-LI-AC(supports 8 10/100/1000BASE-T ports, 2 GE SFP ports, fixed DC power)
