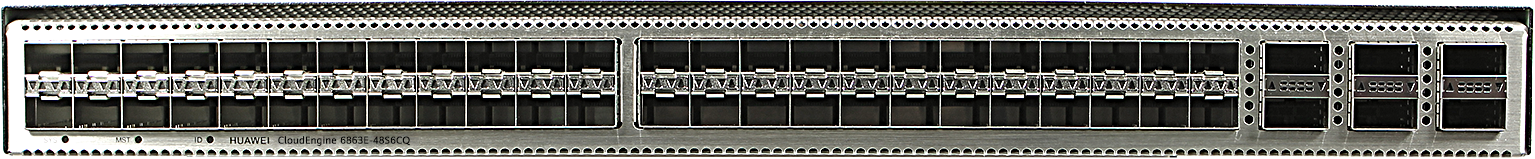

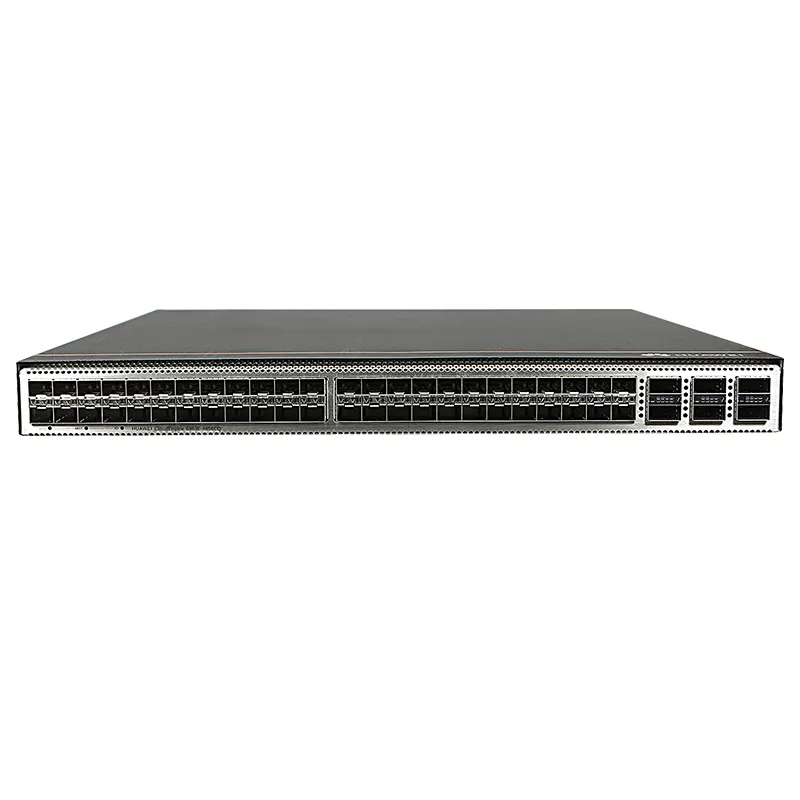

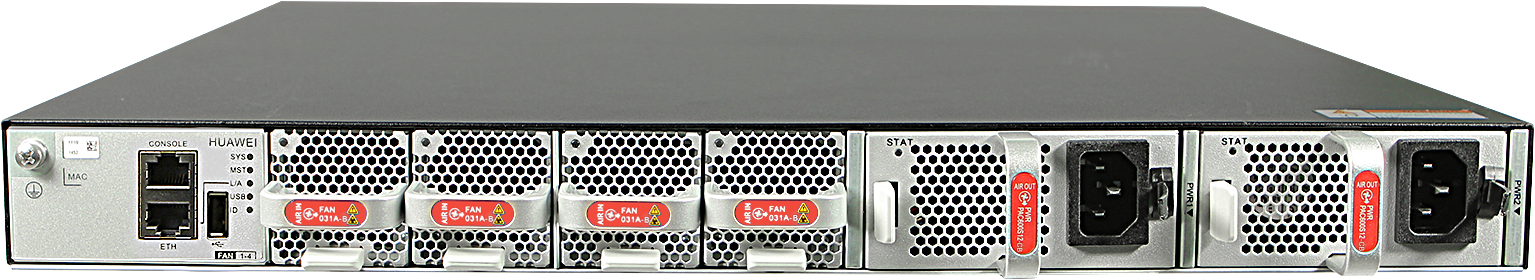

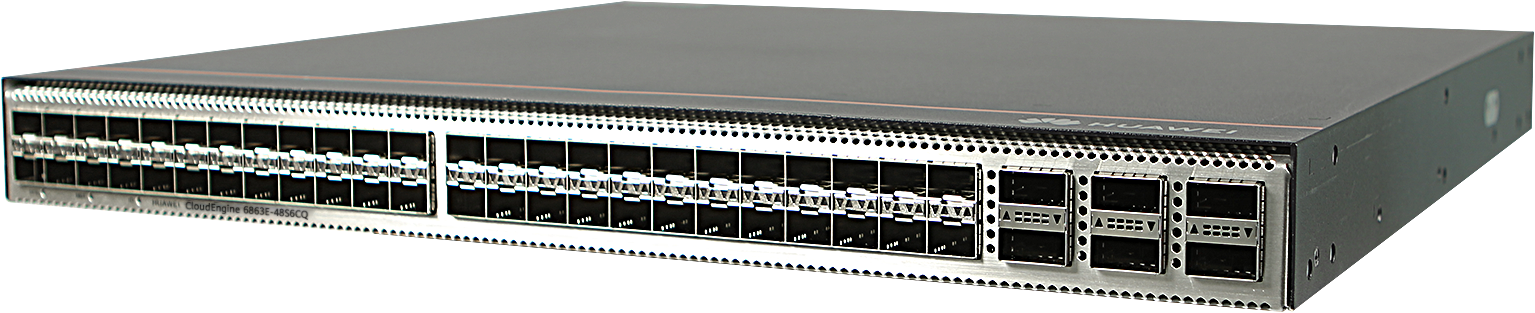

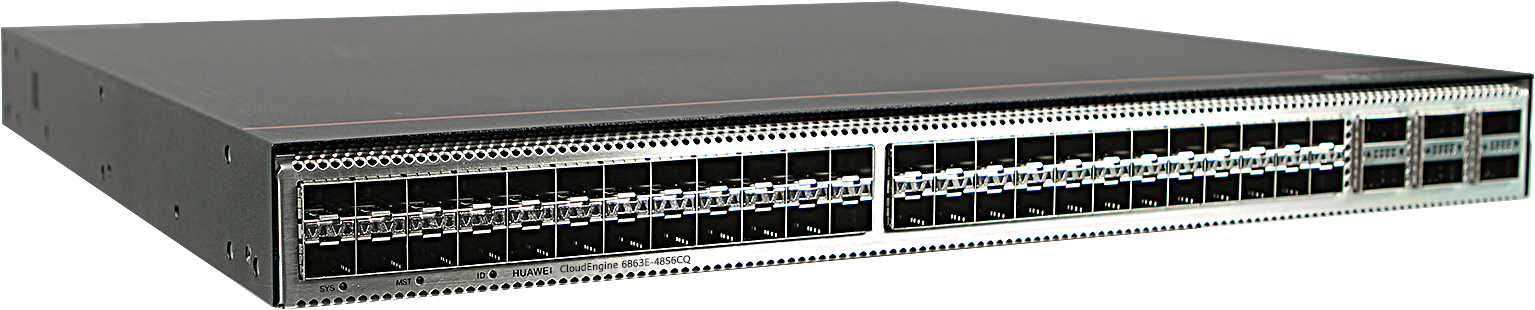

Huawei CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, without fan and power modules)

$Quote1 Pieces ( MOQ )

Category Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

Brand

Huawei

Warranty

1 Year

Part Number

02354GCT

Model

CE6863E-48S6CQ

Other part numbers

02354GCW (CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake)), 02354GCX (CE6863E-48S6CQ switch (48*25GE SFP28, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust))

Short Name

CE6863E

Dimensions with packaging (H x W x D) [mm (in.)]

175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.)

Dimensions without packaging (H x W x D) [mm (in.)]

– Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.), – Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)

Weight without packaging [kg (lb)]

5.7 kg (excluding optical modules, power modules, and fan modules)

Weight without packaging (full configuration) [kg (lb)]

7.8 kg (17.2 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)

Weight with packaging [kg (lb)]

8.95 kg

Weight with packaging (full configuration) [kg (lb)]

11.05kg

Installation Type

Cabinet Installation

CPU

4-core, 1.4 GHz

Memory

DRAM: 4 GB

NOR Flash

64 MB

NAND Flash

4 GB

USB

Supported

Power supply mode

AC,DC,HVDC

Console port

RJ45

Service port supporting the stack function

25GE optical ports, and 100GE optical ports

RTC

Supported

Static power consumption [W]

167 W

Static heat dissipation [BTU/hour]

570 BTU/hour

Maximum power consumption [W]

384 W

Maximum heat dissipation

1310 BTU/hour

Number of power modules

2

Redundant power supply

1+1 backup
