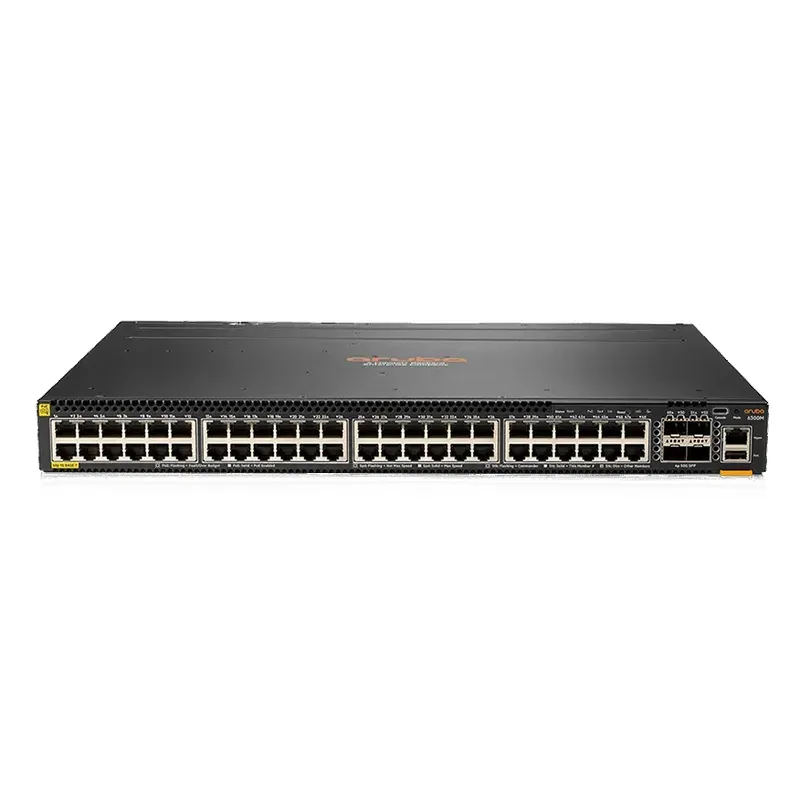

HPE Aruba 6300M – switch – 48 ports – managed – rack-mountable (JL661A)

**HPE Aruba 6300M Switch (JL661A)**
A high-performance, managed 48-port switch designed for scalable enterprise networks. Key features include **HPE Smart Rate multi-gigabit ports** (1/2.5/5/10G) for flexible connectivity, **Aruba Dynamic Segmentation** for simplified policy enforcement, and **built-in network analytics** via ArubaOS-CX. Supports **stacking** for seamless scalability and **redundant power supplies** for high availability. Energy-efficient with **automated power-saving modes**, it integrates with Aruba ClearPass and AirWave for unified security and management. Ideal for IoT-rich environments, offering robust security, simplified operations, and future-proof adaptability.
**Unique selling points**: Smart Rate versatility, Aruba ecosystem integration, and enterprise-grade reliability in a compact rack-mountable form.

$Quote1 Piece(MOQ)

SKU JL661A Categories , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Key Features :

  • Device Type : Switch – 48 Ports – L3 – Managed – Stackable
  • Enclosure Type : Front And Side To Back Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 48 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit Sfp56 (uplink / Stacking)
  • Power Over Ethernet (poe) : Poe+
  • Poe Budget : 1440 W
  • Performance : Switching Capacity: 496 Gbps | Throughput: 369 Mpps | Latency (1 Gbps): 2.28 ??s | Latency (10 Gbps): 1.46 ??s | Latency (25 Gbps): 1.9 ??s | Latency (50 Gbps): 3.49 ??s | Stacking Bandwidth: 200 Gbps
  • Capacity : Switched Virtual Interfaces (svis): 1000 | Ipv4 Host Table Capacity: 32000 | Ipv6 Host Table Capacity: 32000 | Ipv4 Routes (unicast): 64000 | Ipv6 Routes (unicast): 32000 | Ipv4 Routes (multicast): 8000 | Ipv6 Routes (multicast): 8000 | Igmp Groups: 8000 | Mld Groups: 4000 | Ipv4 Acl Entries (ingress): 5000 | Ipv6 Acl Entries (ingress): 1250 | Mac Acl Entries (ingress): 5000 | Ipv4 Acl Entries (egress): 2000 | Ipv6 Acl Entries (egress): 500 | Mac Acl Entries (egress): 2000
  • Mac Address Table Size : 32000 Entries
  • Jumbo Frame Support : 9198 Bytes
  • Routing Protocol : Egp, Bgp-4, Igmpv2, Igmp, Vrrp, Ospfv2, Igmpv3, Ospfv3, Msdp, Static Ipv6 Routing, Ecmp, Mld, Bidirectional Forwarding Detection (bfd)
  • Remote Management Protocol : Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh, Cli, Xrmon, Sftp
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+
  • Features : Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, High Availability, Per-vlan Spanning Tree (pvst), Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Uni-directional Link Detection (udld), Rapid Per-vlan Spanning Tree Plus (pvrst+), Deficit Weighted Round Robin (dwrr), Lldp Support, Management Information Base (mib), Dhcp Protection, Dual Firmware Images, Multiple Vlan Registration Protocol (mvrp), Packet Storm Protection, Class Of Service (cos), Strict Priority (sp), Broadcast Storm Protection, Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Virtual Extensible Lan (vxlan), Multicast Storm Protection, Network Timing Protocol (ntp), Ra Guard, Zero-touch Provisioning (ztp), Protocol Independent Multicast (pim), Vlan Tagging, Rapid Reconfiguration Of Spanning Tree (rstp), Ipv4 And Ipv6 Dual Stack, Ip Multicast, Aruba Virtual Switching Framework (vsf), Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Network Load Balancer (nlb)
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3at, Ieee 802.1ax, Ieee 802.3bt
  • Processor : 1 X Arm Cortex-a72: 1.78 Ghz
  • Ram : 8 Gb Ddr4 Sdram
  • Flash Memory : 32 Gb

    Expansion / Connectivity :
    Interfaces :

  • 48 X 10/100/1000 Base-t Rj-45 Poe+ – 30 W
  • 4 X 1gbit/10gbit/25gbit/50gbit Sfp56
  • 1 X Usb-c Console
  • 1 X Management
  • 1 X Usb Type A

    Power :

  • Power Device : Internal Power Supply
  • Installed Qty : 0 (installed) / 2 (max) ( Minimum 1 Required)
  • 80 Plus Certification : 80 Plus Silver
  • Energy Star Certified : Yes
  • Max Poe Power: 1600w
  • Supported Psu: Jl086a, Jl087a, Jl670a
Model

JL661A
Weight

12.61 lb.
Dimensions

17.4 x 15.2 x 1.7 inch.
Brand

HPE
Features

JL661ASwitchrack-mountableMangedPorts: 48x 10/100/1000 BASE-T PoE+ Ports, 4x 1/10/25/50G SFPPower Consumption: 88-96WThroughput: 369Mpps
