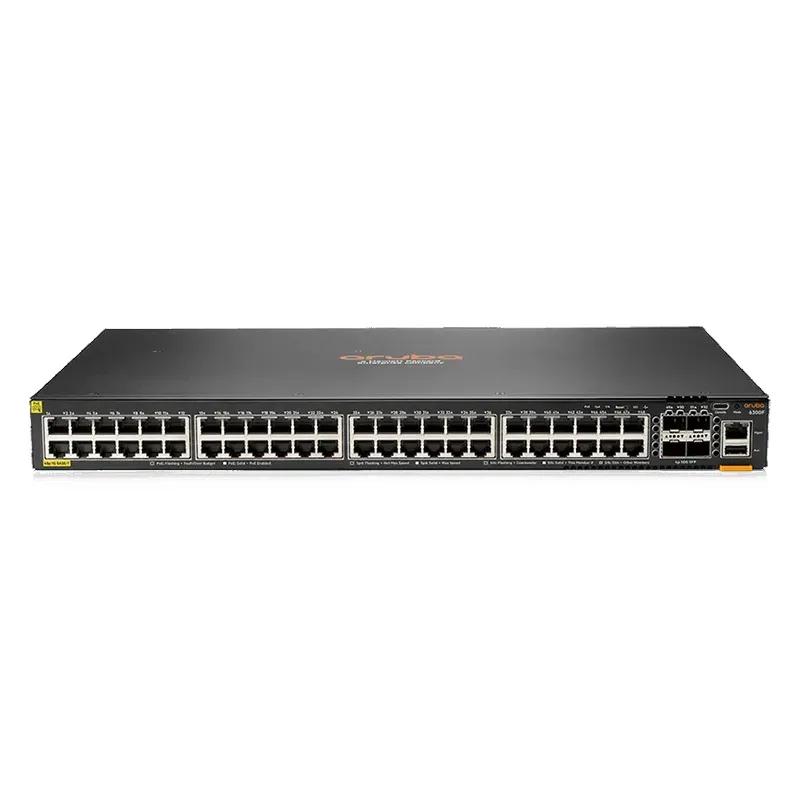

HPE Aruba 6300F – switch – 48 ports – managed – rack-mountable (JL665A)

$Quote1 Piece(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Key Features :

  • Device Type : Switch – 48 Ports – L3 – Managed – Stackable
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 48 X 10/100/1000 (poe+) + 4 X 50 Gigabit Ethernet Sfp56
  • Power Over Ethernet (poe) : Poe+
  • Max Poe Power : 740w
  • Performance : Switching Capacity: 496 Gbps | Switching Throughput: 369 Mpps | 1 Gbps Average Latency (64-byte Packets): 2.28 ??s | 10 Gbps Average Latency (64-byte Packets): 1.46 ??s | 25 Gbps Average Latency (64-byte Packets): 1.9 ??s | 50 Gbps Average Latency (64-byte Packets): 3.49 ??s | Stacking Bandwidth: 200 Gbps
  • Capacity : Switched Virtual Interfaces (svis): 1000 | Ipv4 Host Table Capacity: 32000 | Ipv6 Host Table Capacity: 32000 | Ipv4 Routes (unicast): 64000 | Ipv6 Routes (unicast): 32000 | Ipv4 Routes (multicast): 8000 | Ipv6 Routes (multicast): 8000 | Igmp Groups: 8000 | Mld Groups: 4000 | Ipv4 Acl Entries (ingress): 5000 | Ipv6 Acl Entries (ingress): 1250 | Mac Acl Entries (ingress): 5000 | Ipv4 Acl Entries (egress): 2000 | Ipv6 Acl Entries (egress): 500 | Mac Acl Entries (egress): 2000
  • Mac Address Table Size : 32000 Entries
  • Jumbo Frame Support : 9198 Bytes
  • Routing Protocol : Ospf, Bgp-4, Bgp, Igmp, Ospfv2, Pim-dm, Igmpv3, Msdp, Mldv2, Mld, Cidr
  • Remote Management Protocol : Snmp 1, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Ssh, Xrmon, Sftp
  • Encryption Algorithm : Ssl, Fips 140-2
  • Authentication Method : Secure Shell (ssh), Radius, Tacacs+
  • Features : Dhcp Support, Bootp Support, Arp Support, Vlan Support, Syslog Support, Port Mirroring, Diffserv Support, Ipv6 Support, Sflow, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Quality Of Service (qos), Mld Snooping, Trusted Platform Module (tpm), Front To Back Airflow, Uni-directional Link Detection (udld), Deficit Weighted Round Robin (dwrr), Lldp Support, Fan Tray, Snmp Trap, Management Information Base (mib), Virtual Routing And Forwarding (vrf), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Strict Priority (sp), Tagged Vlan, 8mb Packet Buffer, 802.1x Authentication, Type Of Service (tos), Bridge Protocol Data Unit (bpdu), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Link Aggregation, Ethernet Virtual Private Network (evpn), Network Timing Protocol (ntp), Lldp-med, Denial Of Service (dos) Protection, Rapid Reconfiguration Of Spanning Tree (rstp), Cisco Discovery Protocol (cdp), Bootstrap Router (bsr) Mechanism
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3an, Ieee 802.3at, Ieee 802.3ba, Ieee 802.1ax, Itu-t G.8032, Ieee 802.3bj, Ieee 802.3bm, Ieee 802.3by, Ieee 802.3bz, Ieee 802.3bt, Ieee 802.3cc, Itu-t Y.1344, Ieee 802.3cd
  • Processor : 1 X Arm Cortex-a72: 1.8 Ghz
  • Ram : 8 Gb Ddr4 Sdram
  • Flash Memory : 32 Gb

    Expansion / Connectivity :
    Interfaces :

  • 48 X 1000base-t Rj-45 Poe+ – 30 W
  • 4 X 50gbit Lan Sfp56
  • 1 X Console (usb) Type C
  • 1 X Usb Type A
Dimensions

Height ; 1.7 inchWidth ; 17.4 inchDepth ; 12.9 inch

Part Number

JL665A

Format

Rackmount

Features

JL665APorts: 48x 10/100/1000 Base-T PoE+, 4x 1/10/25/50G SFPInput Voltage: 100-120/200-240 VACThroughput: 369 MppsSwitching Capacity: 496GbpsPoE Capability: Upto 740W

Brand

HPE

Weight

11.24 lbs
