JL073A Overview

Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. This JL073A has 24 x 10/100/1000 PoE+ ports together with 1 x open module slots and a stacking module slot. It comes with a replaceable fan tray. It supports one or two power supplies; power supplies are ordered separately; choice of power supply dictates available Power over Ethernet. Available modules are: 4 x SFP+; 1 x 40GbE QSFP+; 2 x 40GbE QSFP+; 4 port stacking module.

Quick Spec

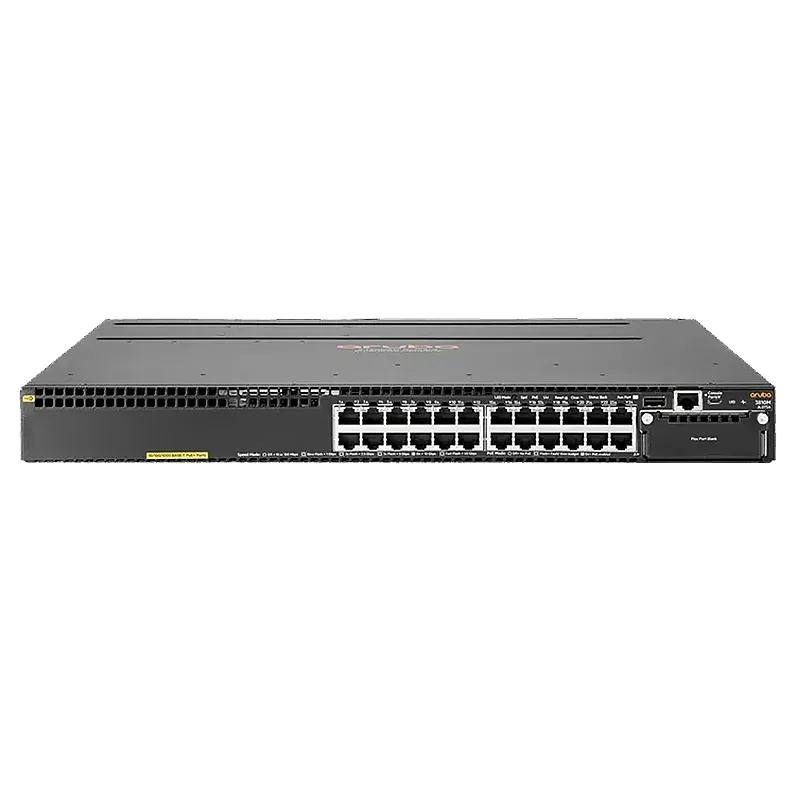

Figure 1 shows the appearance of Aruba JL073A.

HPE-Aruba-JL073A-Appearance

Table 1 shows the quick spec.

Product Code JL073A
Type Aruba 3810M 24G PoE+ 1-slot Switch
I/O ports and slots 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,

IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
Duplex: 10BASE-T/100BASETX: half or full; 1000BASE-T: full only
Ports 1 – 24 support MACSec
1 open module slot

Supports a maximum of 4 SFP+ ports or 1 40GbE ports, with optional module

Additional ports and slots 1 stacking module slot
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
1 dual-personality (RJ-45 or USB micro-B)
Power supplies 2 power supply slots
1 minimum power supply required (ordered separately)
Throughput: Up to 95.2 Mp/s (64-byte packets)
Dimensions (H x W x D) 4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in) (1U height)

Product Details

Figure 2 shows the front panel of Aruba JL073A.

HPE-Aruba-JL073A-Front-Panel

Note:

24 × RJ-45 autosensing 10/100/1000 PoE+ ports
1 × Flex port Module expansion slot
Micro USB Console
RJ Serial Console
USB/Auxiliary Port

· There are Stacking Module Slot, Management/OOBM port, AC Power connector/Power Supply slot 1 and Redundant Power Supply slot 2 on the back panel.
