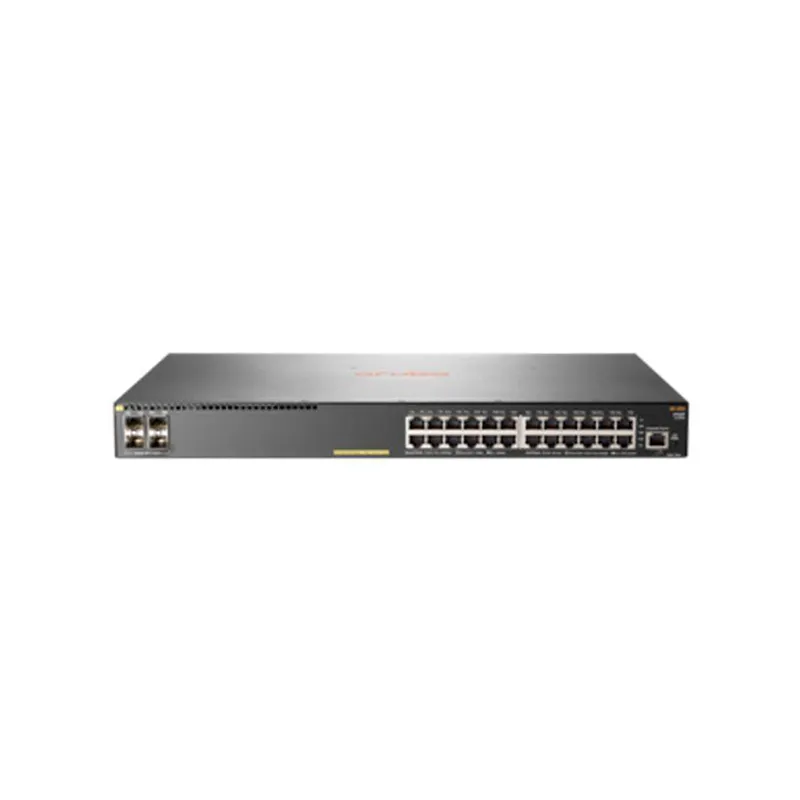

HPE Aruba 2930F 24G PoE+ 4SFP+ – switch – 24 ports – managed – rack-mountable (JL255A)

**HPE Aruba 2930F 24G PoE 4SFP Switch (JL255A)**
A high-performance, managed Layer 2/3 switch designed for scalable, secure enterprise networks. Features 24 Gigabit PoE+ ports (370W total) for powering devices like IP phones, cameras, and access points, plus four 1G SFP uplinks for flexible connectivity. Offers advanced QoS, VLANs, ACLs, and static routing for optimized traffic control. Unique Aruba innovations include dynamic segmentation for simplified role-based access and integration with ClearPass for centralized policy management. Energy-efficient with auto-sensing PoE and EEE. Rack-mountable, stackable for expansion, and backed by HPE’s lifetime warranty. Combines robust performance, enterprise-grade security, and ease of management in a compact 1U form factor. Ideal for businesses seeking reliable, future-ready networking with streamlined operations.

$Quote1 Piece(MOQ)

SKU JL255A Categories , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

General Information:

  • Device Type : Switch – 24 Ports – L3 – Managed – Stackable
  • Enclosure Type : Rack-mountable – 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+ (uplink)
  • Power Over Ethernet (poe) : Poe+
  • Performance : Throughput : 95.2 Mpps Switching Capacity : 128 Gbps Latency (1 Gbps) : 3.8 Latency (10 Gbps) : 1.6
  • Capacity : Jumbo Frame Size : 9220 Ipv4 Routing Table Entries : 10000 Ipv6 Routing Table Entries : 5000
  • Mac Address Table Size : 32k Entries
  • Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Bgp, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr
  • Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Ssh, Ssh-2, Cli, Xrmon
  • Encryption Algorithm : Md5, Ssl
  • Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+
  • Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Dhcp Server, Stp Root Guard, Uni-directional Link Detection (udld), Lldp Support, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Type Of Service (tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (icmp), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Management Information Base (mib) Ii
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax
  • Processor : 1 X Arm Cortex-a9 : 1.016 Ghz
  • Ram : 1 Gb – Ddr3 Sdram
  • Flash Memory : 4 Gb

    Expansion / Connectivity :

  • Interfaces : 24 X 1000base-t – Rj-45 – Poe+ 4 X Gigabit / 10gbit Lan – Sfp+ 1 X Serial (console)
  • Expansion Slots : 1 (total) / 1 (free) X Expansion Slot
  • Installed Modules Qty (max) : 0 (installed) / 4 (max)
Model

JL255A
Weight

8.6 lbs
Dimensions

12 x 17.4 x 1.7 in.
Features

JL255ASwitchmanagedrack-mountableL324 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)PoE+ (370 W)
