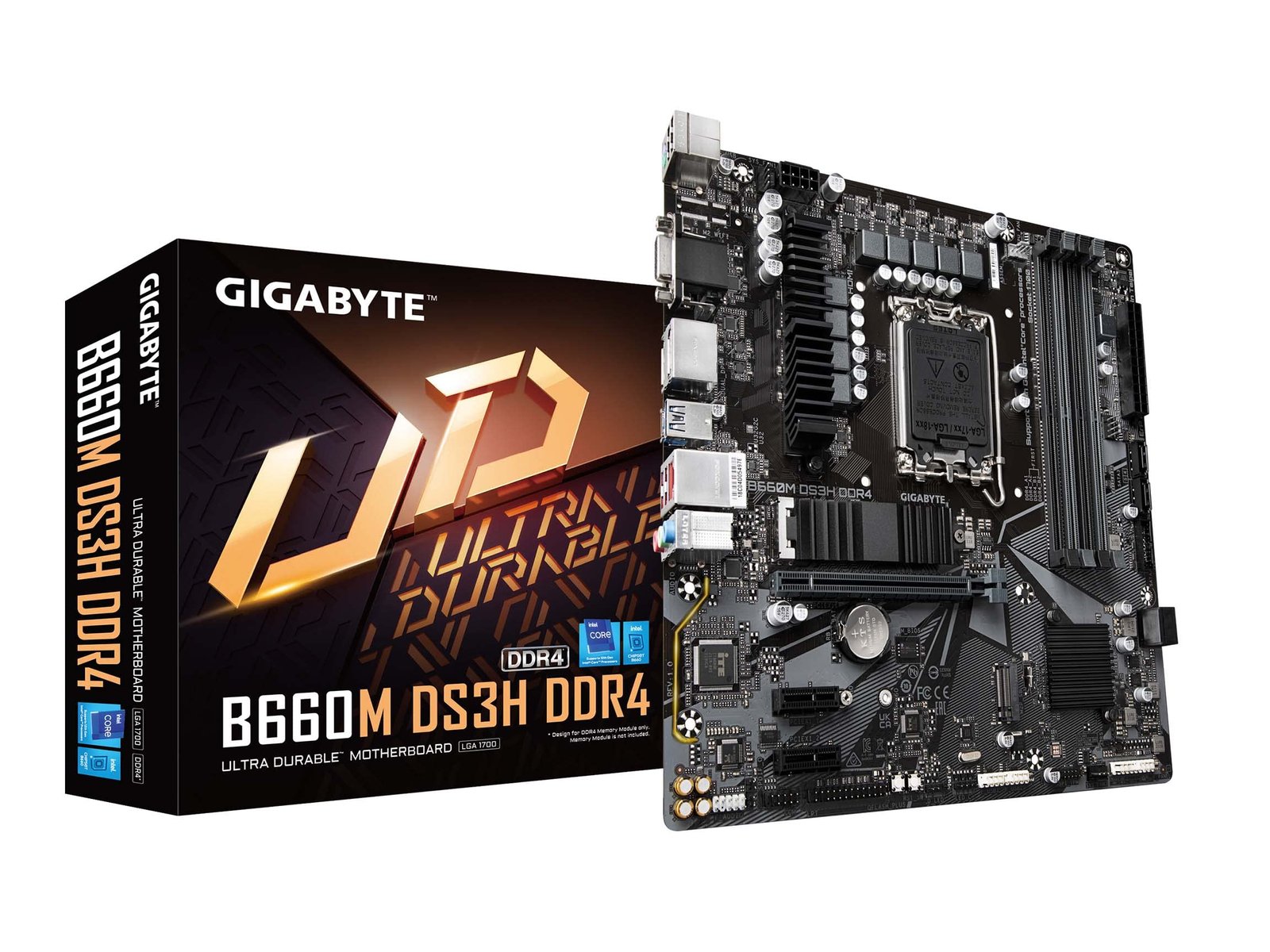

GIGABYTE B660M DS3H DDR4

GIGABYTE B660 LGA 1700 Intel CPU Motherboard

$Quote3 pcs(MOQ)

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Size

24.4cmx24.4cm

USB Ports

1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers

Product Name

GIGABYTE B660M DS3H DDR4

Application

PC

Brand

GIGABYTE

Packaging Details

BOX

Chipset

Intel B660 Series

CPU Socket Type

Intel LGA1700

CPU Brand

Intel

Memory

Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Description

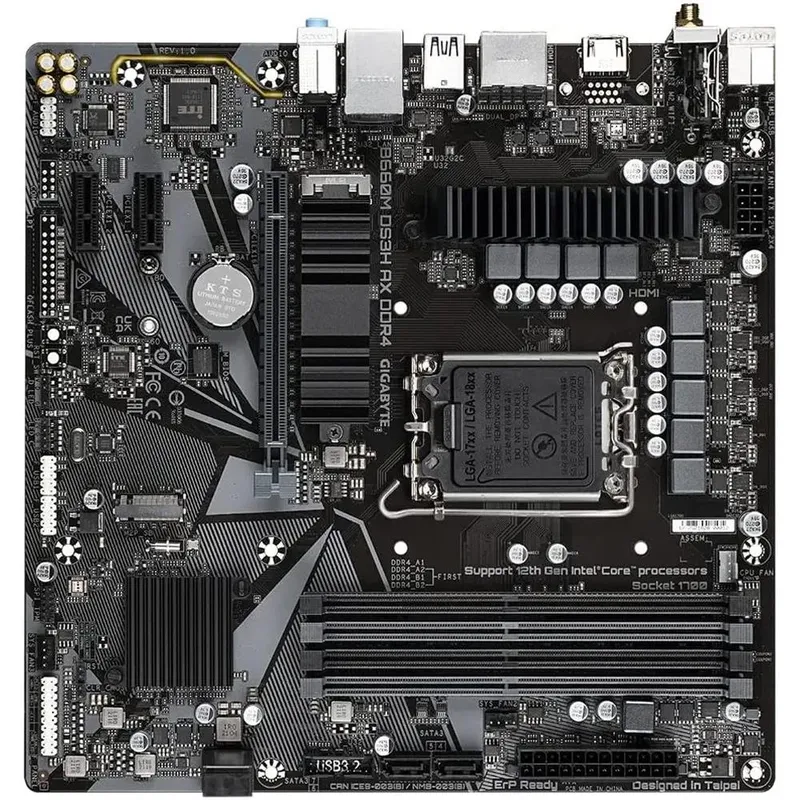

The GIGABYTE B660M DS3H motherboard is designed to deliver reliable performance and essential features for mainstream desktop users. Based on the Intel B660 chipset, it supports 12th generation Intel Core processors, providing a solid foundation for productivity and everyday computing tasks. Featuring PCIe 5.0 support, dual M.2 slots for fast storage, and DDR4 memory compatibility, the B660M DS3H ensures efficient multitasking and system responsiveness. With its Micro-ATX form factor, it offers flexibility for compact builds without compromising on connectivity and expandability.

Warranty

1 Year

Internal I/O Connectors

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

Products Status

New

Socket

LGA1700

Back I/O Ports

2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks

Form Factor

Micro-ATX
