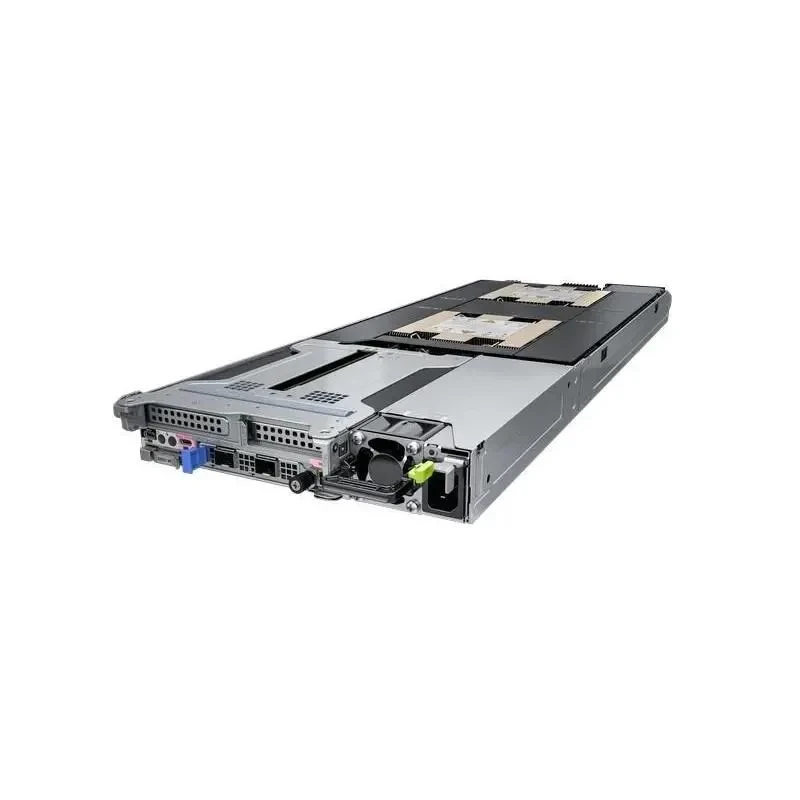

FusionServer XH321 V6 is a new-generation 1 U half-width two-socket server node. It is innovatively designed to overcome power constraints and improve system storage density. It features powerful computing capabilities, ultra-high storage density, and easy management and maintenance.


FusionServer XH321 V6


1U half-width 2-socket server node


1/2 third-generation Intel® Xeon® Scalable processor (6300/8300 series) with 270 W TDP per processor

Memory Slots

16 DDR4 DIMM slots, up to 3200 MT/s, up to 2 TB memory capacity (configured with 128 GB memory)

Local Storage

A maximum of six 2.5-inch SAS/SATA/SSD/NVMe drives, and NVMe 2+4 balance,
Up to two M.2 2280 or 2242 SATA SSDs,
Hybrid configuration of different drive types


RAID 0, 1, 5, 6, 10, 50, 60, and supercapacitor power failure protection,
RAID 0 and 1 for M.2 SSDs


2 standard PCIe 4.0×16 half-height half-length expansion slots


1 OCP expansion slot


· The BMC chip integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening

· The BMC supports standard interfaces such as Redfish, SNMP, and IPMI2.0. Provides a remote management interface based on HTML5/VNC KVM. CD-free deployment and agentless features simplify management.

· Aggregates four compute nodes to any node management interface, simplifying management.

· FusionDirector management software is optional. It provides advanced management features, such as stateless computing, batch OS deployment, and automatic firmware upgrade, implementing intelligent and automatic management throughout the lifecycle.


Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi

Security Features

Such as power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection

Operating Temperature

5°C to 45°C (41°F to 113°F)



Dimensions (H x W x D)

40.7 mm x 218.7 mm x 632 mm (1.60 in. x 8.61 in. x 24.88 in.)
