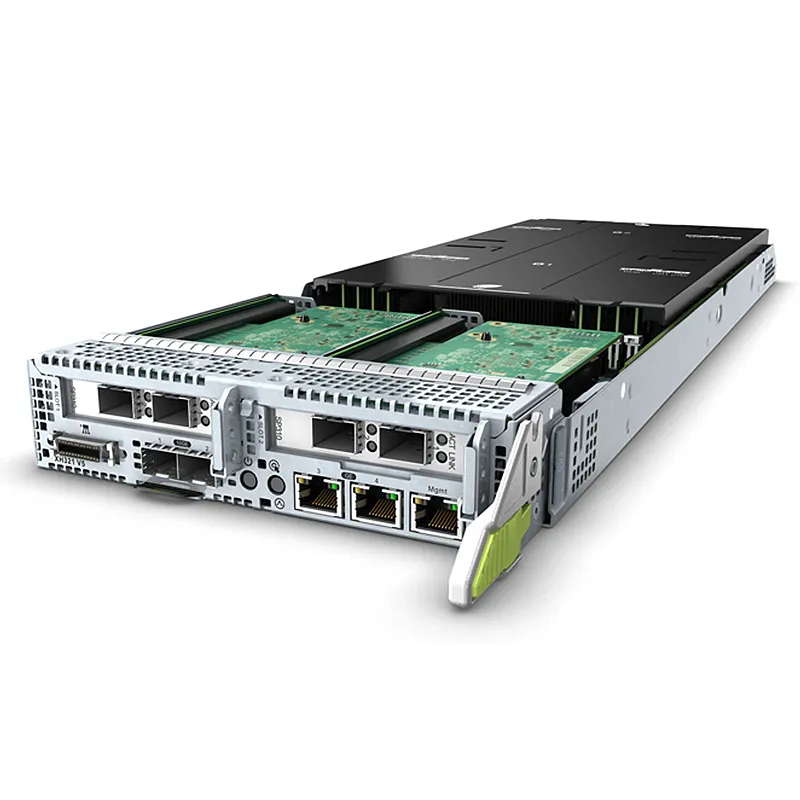

FusionServer XH321 V5 is a 1U, half-width 2-socket server node. It supports up to 16 DDR4 DIMMs and is ideal for applications such as cloud computing, web-based applications, and high-performance computing (HPC).


XH321 V5

Form Factor

1U, half-width 2-socket server


1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W,

1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205 W


Supports 16 2933 MT/s DDR4 DIMMs, up to 1 TBmemory capacity (configured with 64 GB DIMMs),

Supports 4 2666 MT/s Intel® Optane™ PMem modules (100 series) as volatile ornon-volatile storage, which can be used togetherwith 8 DDR4 DIMMs, offering up to 2.5 TB memorycapacity (configured with 512 GB Optane™ PMem and64 GB DDR4 DIMMs)

Internal Storage

Up to 6 x 2.5-inch SAS/SATA/SSD/NVMe drives or 3 x 3.5-inch SAS/SATA/SSD drives,

Up to 2 x M.2 2280 or 2242 SATA SSDs,

Support for mixed use of different drive types

RAID Support

RAID 0, 1, 5, 6, 10, 50, or 60; supercapacitor for power failure protection,
M.2 SSDs can be used to build RAID 0 or 1

LOM Network Ports

2 x GE + 2 x 10 GE

PCIe Expansion

2 PCIe 3.0 x16 half-height, half-length standard expansion slots


• BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening

• BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management.

• One aggregated management network port is provided at the front of the chassis to aggregate four compute nodes into one management port

• (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management

Operating Systems

Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi

Operating Temperature

5ºC to 35ºC



Dimensions (H x W x D)

40.5mm x 177.9mm x 545.5mm (1.59 in. x 7.00 in. x 21.48 in.)
