FusionServer 5288 V7 - Century Tech

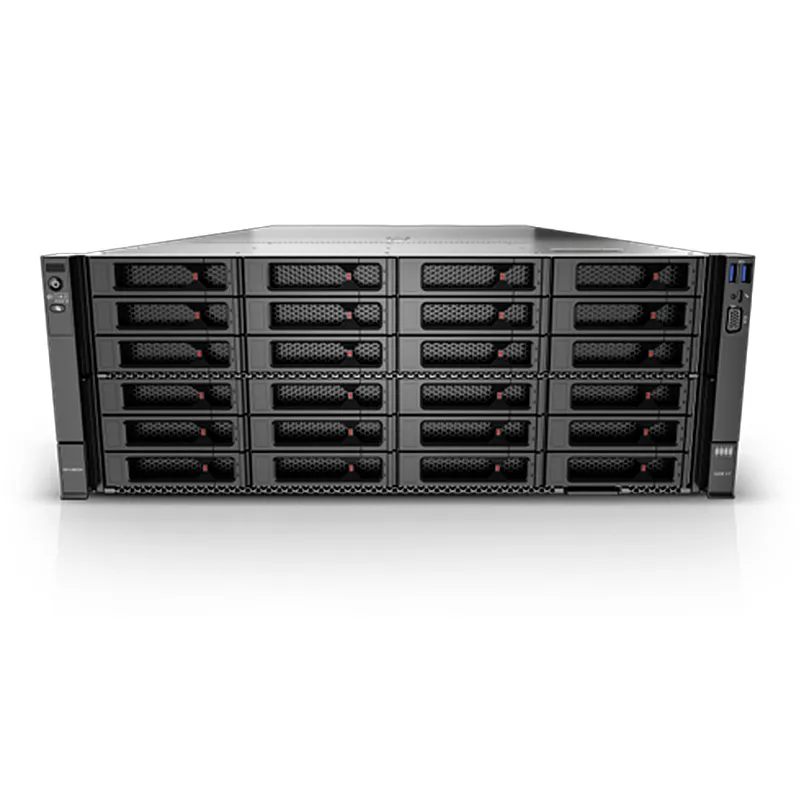

• FusionServer 5288 V7 (5288 V7) is a new-generation 4U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecom service applications, and other complex workloads.

• 5288 V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

Form Factor	4U rack server
Processors	1 or 2 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor
Chipset	Emmitsburg PCH
Memory	32 x DDR5 DIMMs, at 4800 MT/s
Local Storage	Hot-swappable drive configurations: • 4 x 2.5ʺ SAS/SATA drives/SSDs • 24 to 44 x 3.5ʺ SAS/SATA drives • 8 x NVMe SSDs • E1.S or E3.S SSDs* Flash storage: • 2 x M.2 SSDs
RAID	RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Network	Expansion capability for multiple types of networks, OCP 3.0 NICs are supported. The two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap and PCIe 5.0 are supported
PCIe Expansion	Up to 10 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 10 x PCIe expansion slots. PCIe 5.0 is supported
GPU Card	10 x single-width GPU cards
Fan Modules	6 or 8 x hot-swappable counter-rotating fans in N+1 redundancy
Power Supply	2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include: • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC). • 1500 W AC Platinum PSUs, 1000 W (input: 100 V to 127 V AC), 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC), • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC), • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC). • 3000 W AC Titanium PSUs, 2500 W (input: 200 V to 220 V AC), 2900 W (input: 220 V to 230 V AC), 3000 W (input: 230 to 240 V AC). • 2000 W AC Platinum PSUs, 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC), 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)
Management	The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management. • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle.
OS	FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler
Security	Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection
Certification	CE, UL, CCC, FCC, VCCI, and RoHS
Installation Suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	Chassis with 3.5ʺ drives: 175 mm × 447 mm × 798 mm (6.89 in. x 17.60 in. x 31.42 in.)
