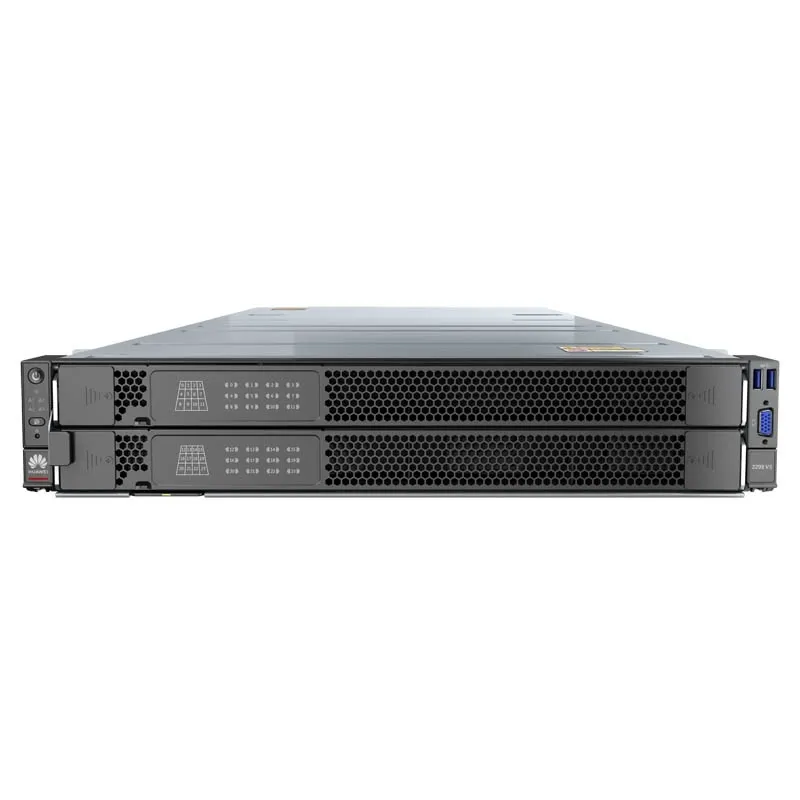

FusionServer 2298 V5 is a 2U, 2-socket rack server, applicable to services such as tiered storage of hot, warm, and cold data, and historical data archiving. With a highly efficient design, the server ensures excellent computing performance and provides flexible and ultra-large local storage scalability to reduce data storage costs. The 2U server can be configured with 2 Intel® Xeon® Scalable processors, 12 DDR4 DIMMs, and 24 x 3.5-inch plus four x 2.5-inch SAS/SATA disks for local storage, the FusionServer 2298 V5 supports a maximum of 4 NVMe SSDs. It incorporates patented technologies, such as Dynamic Energy Management Technology (DEMT)and Fault Diagnosis and Management (FDM), and integrates FusionDirector software for entire-lifecycle management, helping customers drive down OPEX and increase ROI.


FusionServer 2298 V5

Form Factor

2U Rack Server


1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W,

1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W


12 DDR4 DIMM slots, up to 2,933 MT/s

Internal Storage

• 24 x 3.5-inch SAS/SATA HDDs, hot-pluggable, power-on/-off on a per HDD basis.
• 4 x 2.5-inch SAS/SATA/NVMe hard drives, hot-pluggable.
Flash storage:
• 2 x M.2 SSDs


4 rear SAS/SATA HDDs can be configured to support RAID 0, 1, 10, and 1E. RAID-level migration, disk roaming, self-diagnosis, and web-based remote configuration are supported

Network Ports

• LOM: 2 x 10 GE + 2 x GE ports
• Flexible Network Interface Card (NIC): 1 x OCP 2.0 standard NIC

PCIe Expansion

Up to 5 PCIe 3.0 expansion slots, including 1 PCIe card slot dedicated for the RAID controller card and 1 slot for flexible OCP 2.0 standard NIC

Fan Modules

5 hot-swappable fan modules, with support for N+1 redundancy

Power Supply

2 hot-swappable PSUs, with support for 1+1 redundancy. Supported options include:
• 900W AC Platinum PSUs (input: 100V to 240V AC, or 192V to 288V DC)
• 1,500W AC Platinum PSUs
− 1,000W (input: 100V to 127V AC)
− 1,500W (input: 200V to 240V AC, or 192V to 288V DC)


• BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening

• BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management

• (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management

Installation Suite

L-shaped guide rails and adjustable guide rails

Dimensions (H x W x D)

Chassis dimensions: 86.1 mm x 447 mm x 890 mm (3.39 in. x 17.60 in. x 35.04 in.)

Operating Temperature

5°C to 35°C (41°F to 95°F), ASHRAE Class A3 compliant
