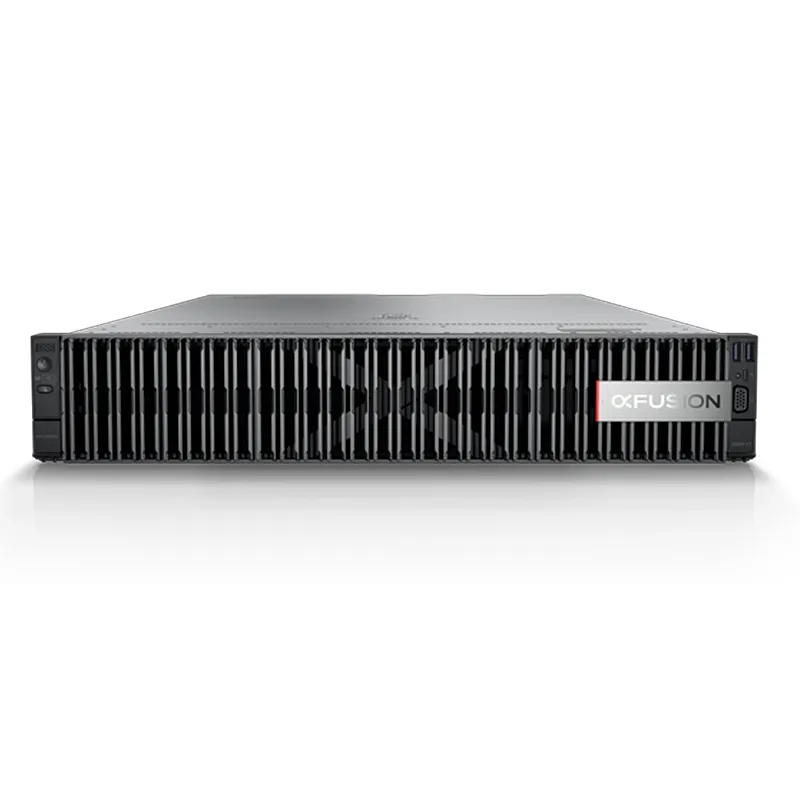

FusionServer 2288H V7

$Quote1 Pieces ( MOQ )

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

Click or drag files to this area to upload. You can upload up to 3 files.
.doc, .xls, .pdf, .png, .jpg, .xlsx, .csv formats only

• FusionServer 2288H V7 (2288H V7) is a new-generation 2U 2-socket rack server designed for SDS, VDI, CDN, virtualization, big data, database, cloud scenarios, AI inference, small enterprises, OA, and web applications, meeting requirements of enterprise or telecom service applications and other complex workloads.

• The 2288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

Form Factor

2U rack server

Processors

1 or 2 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor

Chipset

Emmitsburg PCH

Memory

32 x DDR5 DIMMs, with up to 4800 MT/s speed. Supports memory expansion via CXL with up to 16 x DDR5 or DDR4 DIMM slots; up to 48 x DIMM slots*

Local Storage

Hot-swappable drives with the following configuration options are supported:
• 8 to 35 x 2.5ʺ SAS/SATA/SSD drives,
• 12 to 20 x 3.5ʺ SAS/SATA drives,
• 4/8/16/24 x NVMe SSDs,
• 36 x E1.S SSDs,
• 48 x E3.S SSDs*,
• Up to 45 x 2.5ʺ drives, or 34 x full NVMe SSDs,
• 2 x M.2 SSDs

RAID

RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

Network

Expansion capability of multiple types of networks,
OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported

PCIe Expansion

Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots, 14 slots of which support PCIe 5.0

GPU Card

4 x dual-width or 14 x single-width GPU cards

Fan Module

4 x hot-swappable counter-rotating fans in N+1 redundancy

Power Supply

2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include:
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC),
• 1500 W AC Platinum PSUs,
1000 W (input: 100 V to 127 V AC),
1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC),
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC),
• 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC),
• 3000 W AC Titanium PSUs,
2500 W (input: 200 V to 220 V AC),
2900 W (input: 220 V to 230 V AC),
3000 W (input: 230 to 240 V AC),
• 2000 W AC Platinum PSU,
1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC),
2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)

Management

The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.

• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.

• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle.

OS

FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler

Operating Temperature

5ºC to 50ºC (41ºF to 122ºF), compliant with ASHRAE Classes A1, A2, A3, and A4

Certification

CE, UL, CCC, FCC, VCCI, and RoHS

Installation Suite

L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D)

Chassis with 3.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.),
Chassis with 2.5ʺ drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.)
