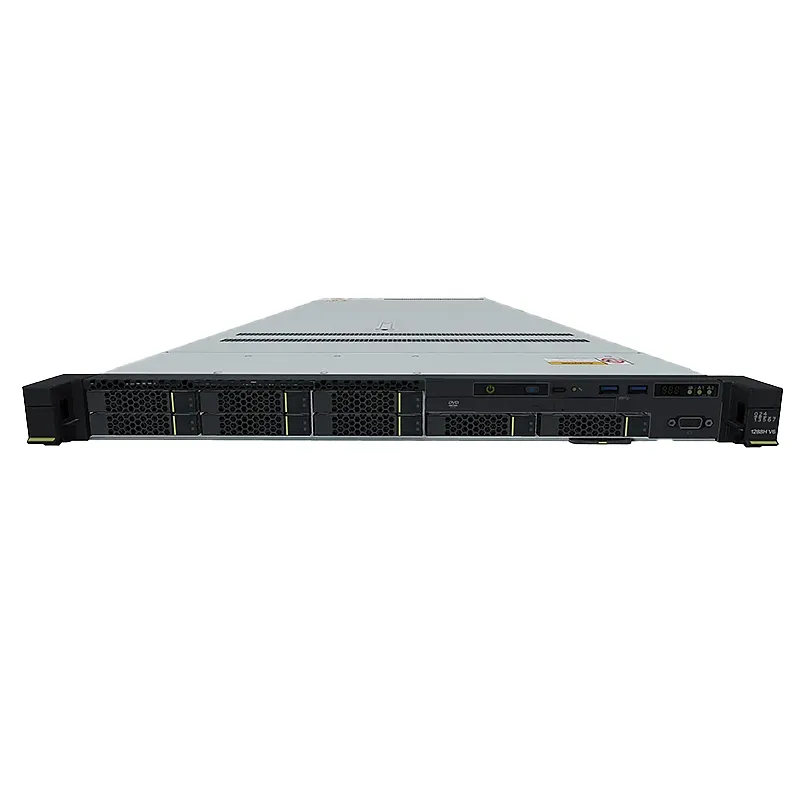

FusionServer 1288H V6

$Quote1 Pieces ( MOQ )

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

The FusionServer 1288H V6 is a 1U 2-socket rack server. It improves space utilization for data centers and is ideal for high-density deployment scenarios for workloads such as cloud computing, virtualization, high-performance computing (HPC), and big data processing. The 1288H V6 is configured with two Intel®Xeon®Scalable processors and provides up to 32 DDR4 DIMMs, and 4 x 3.5-inch or 10 x 2.5-inch local storage resources (configurable with 4 or 10 NVMe SSDs). It incorporates patented technologies, such as Dynamic Energy Management Technology (DEMT) and Fault Diagnosis & Management (FDM), and integrates FusionDirector software for entire-lifecycle management, helping customers drive down operating expense (OPEX) and improve return on investment (ROI).

Model

FusionServer 1288H V6

Form Factor

1U rack server

Processors

One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W

Chipset

Intel C621A

Memory

32 DDR4 DIMMs, up to 3200 MT/s; 16 Optane™ PMem 200 series, up to 3200 MT/s

Local Storage

Supports various drive configurations and hot swappable:
• 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less),
• 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less),
• 10 x 2.5-inch SAS/SATA/SSD drives,
• 8 x 2.5-inch SAS/SATA/SSD drives,
• 4 x 3.5-inch SAS/SATA/SSD drives.

Supports flash storage:
• 2 x M.2 SSD

RAID Support

Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration.

Network

Provides expansion capability of multiple types of networks.
Provides the OCP 3.0 network adapter. The two FlexIO card slots support two OCP 3.0 network adapter respectively, which can be configured as required.
Supports the hot swap function.

PCIe Expansion

Provides six PCIe slots, including one PCIe slot dedicated for RAID controller card, two FlexIO card slots dedicated for OCP 3.0 network adapters, and three PCIe 4.0 slots for standard PCIe cards.

Fan Modules

Seven hot-swappable counter-rotating fan modules in N+1 redundancy mode

Power Supply

Two hot-swappable PSUs in 1+1 redundancy mode. Supported options include:
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC),
• 1500 W AC Platinum PSUs,
1000 W (input: 100 V to 127 V AC),
1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC),
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC),
• 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC),
• 2000 W AC Platinum PSUs,
1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC),
2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)

Operating Systems

Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, etc

Security Features

Supports power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and cover opening detection.

Operating Temperature

5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant)

Certifications

CE, UL, FCC, CCC, VCCI, RoHS, etc

Installation Kit

Supports L-shaped guide rails, adjustable guide rails, and holding rails.

Dimensions (H x W x D)

Chassis with 3.5-inch drives: 43.5 mm x 447 mm x 790 mm (1.71 in. x 17.60 in. x 31.10 in.),
Chassis with 2.5-inch drives: 43.5 mm x 447 mm x 790 mm (1.71 in. x 17.60 in. x 31.10 in.)
