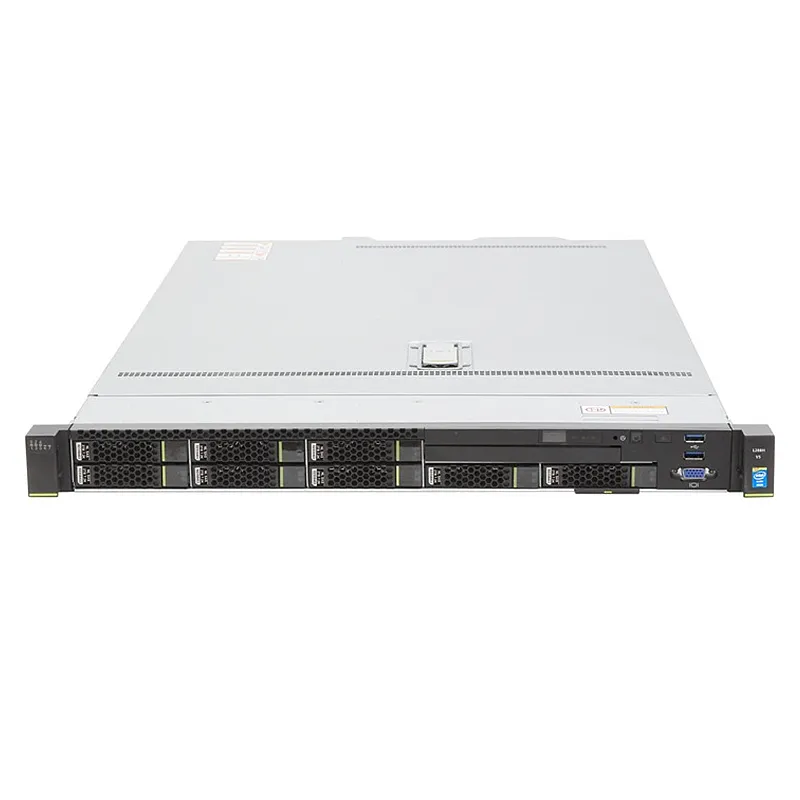

FusionServer 1288H V5

$Quote1 Pieces ( MOQ )

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

The FusionServer 1288H V5 is a 1U, 2-socket rack server. It is ideal for high-density deployment to process workloads generated by cloud computing virtualization, HPC, and big data processing. It delivers superior performance and excellent scalability while improving space utilization in data centers, driving down the overall expenditure.

Model

FusionServer 1288H V5

Form Factor

1U, 2-socket rack server

Processors

1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W,

1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205 W

Memory

24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s

Local Storage

Supports hot-plug hard drives and the following configuration options:
10 x 2.5-inch hard drives (6–8 NVMe SSDs and 2–4 SAS/SATA drives, with a total number of 10 or less),
10 x 2.5-inch SAS/SATA/SSDs (2–4 NVMe SSDs and 6–8 SAS/SATA HDDs, with a total number of 10 or less),
10 x 2.5-inch SAS/SATA/SSDs,
8 x 2.5-inch SAS/SATA hard drives,
4 x 3.5-inch SAS/SATA hard drives.
Flash storage:
2 M.2 SSDs

RAID Support

RAID 0, 1, 10, 5, 50, 6, or 60,
Configured with a supercapacitor for power-off protection for the cache (optional),
RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration

Network Ports

LOM: 2 x 10GE + 2 x GE ports,
Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB ports

PCIe Expansion

Up to 5 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC

Fan Modules

7 hot-swappable fan modules with optional N+1 redundancy

Power Supply

2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options:
550W AC Platinum PSUs,
900W AC Platinum/Titanium PSUs,
1,500W AC Platinum PSUs,
1,500W 380V HVDC PSUs,
1,200W -48V to -60V DC PSUs

Management

BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening,

BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management,

(Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management

Operating Temperature

5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant

Certifications

CE, UL, FCC, CCC, and RoHS

Installation Kit

L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D)

Chassis with 3.5-inch hard drives: 43 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.),
Chassis with 2.5-inch hard drives: 43 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
