Memory Types | DDR4-2666 |
---|---|
Code Name | Coffee Lake |
Max # of Memory Channels | 2 |
TDP | 80 W |
Hyper-Threading Support | Yes |
T JUNCTION | 100 |
Model | CM8068404174603 |
Total Threads | 12 |
Manufacturing Tech | 14 nm |
PCI Express Revision | 3 |
Shipping Media | TRAY |
Max CPU Configuration | 1 |
PCI Express Configurations | 1×16, 1×8+2×4, 2×8 |
Bus Speed | 8 GT/s |
ECC Memory Supported | Yes |
Brand | Intel |
4K Support | No |
Intel Quick Sync Video | No |
Embedded Options Available | No |
Processor Base Frequency | 3.40 GHz |
Scalability | 1S Only |
Max Turbo Frequency | 4.80 GHz |
64-Bit Support | Yes |
Series | Intel Xeon E |
Package Size | 37.5 mm x 37.5 mm |
DirectX* Support | N/A |
Max # of PCI Express Lanes | 16 |
CPU Socket Type | |
Application | Server |
Graphics Output | N/A |
Cache | 12 MB |
Part Number | E-2236 |
Total Cores | 6 |
Max Memory Size | 128 GB |
Products Status | New |
Instruction Set | 64-bit |
Clear Video HD Technology | No |
OpenGL* Support | N/A |
Device ID | N/A |

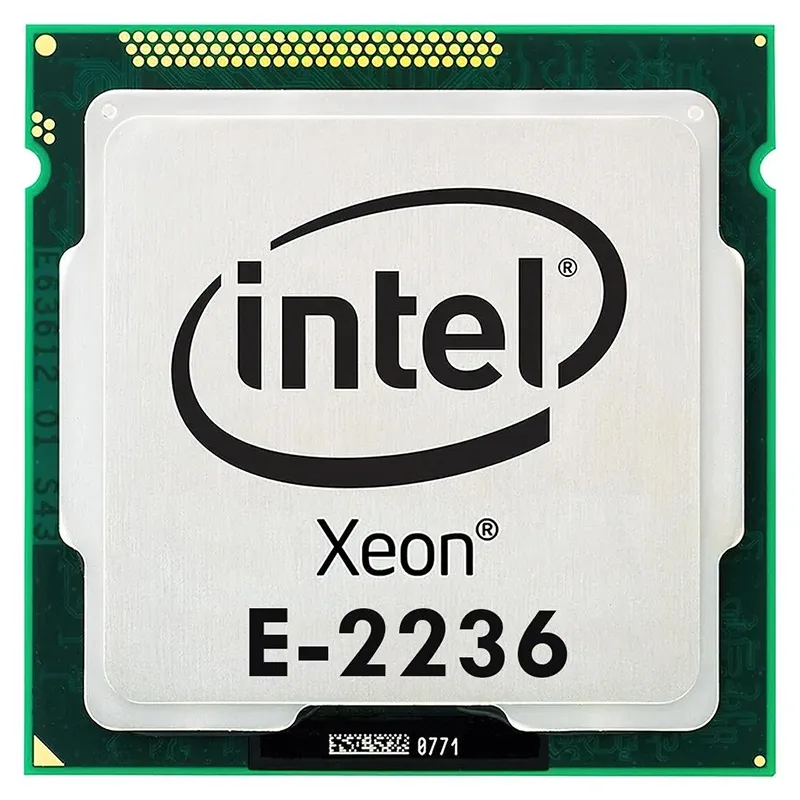

Intel Xeon E-2236 6C 12T Socket FCLGA1151 80W
**Intel Xeon E-2236 6C/12T Processor**
A high-performance, power-efficient CPU designed for demanding workloads in entry-level servers, workstations, and SMB environments. Features 6 cores, 12 threads, 3.4 GHz base clock (4.8 GHz Turbo), and 80W TDP for optimal performance-per-watt. Supports ECC memory for enhanced data integrity and reliability, alongside Intel vPro for advanced security and manageability. Built on Socket FCLGA1151, it offers seamless compatibility with existing infrastructure. Ideal for virtualization, data analysis, and mission-critical applications, balancing enterprise-grade stability with robust multitasking capabilities. USP: Combines workstation-class power with server-grade features at an accessible price point.
