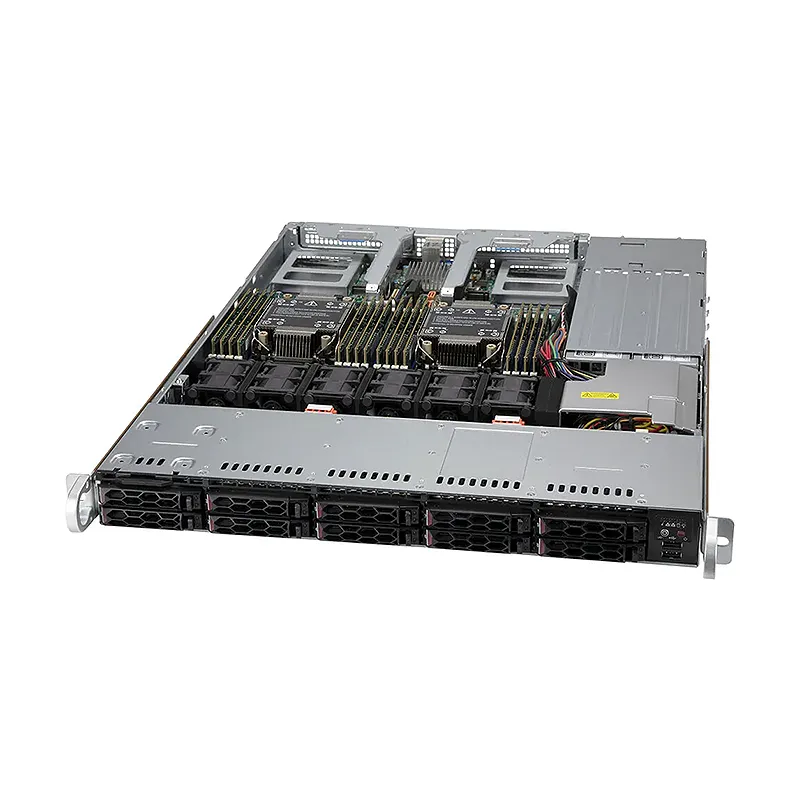

* NOTE: Image may not exactly match the product

CloudDC SuperServer SYS-120C-TN10R (Complete System Only

The CloudDC SuperServer SYS-120C-TN10R is a high-performance, 1U rackmount server designed for cloud data centers and enterprise workloads. It features 3rd Gen Intel Xeon Scalable processors, 10 hot-swap NVMe U.2 drives (up to 160TB), and dual 100GbE QSFP28 ports for ultra-fast networking. Built for density and efficiency, it supports AI, edge computing, and hyperscale applications with its scalable storage, low-latency connectivity, and PCIe 4.0 support. Key benefits include rapid data processing, reduced downtime via hot-swap storage, and redundant power/cooling for 24/7 reliability. Its compact design maximizes rack space, while energy-efficient components lower operational costs. Unique selling points: unmatched NVMe storage density in a 1U form factor, enterprise-grade scalability, and seamless integration into modern data centers for demanding, data-intensive tasks. Ideal for businesses prioritizing speed, scalability, and TCO optimization.

$Quote1 Piece(MOQ)

SKU SYS-120C-TN10R Categories , , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • SuperServerSYS-120C-TN10RStandard version with PWS-860P-1R2 (Platinum Level)
  • SuperServerSYS-120C-TN10R-EUEuropean version with PWS-861A-1R (Titanium Level)

Motherboard

  • Super X12DDW-A6

Processor

  • CPU
    Dual Socket P4 (LGA-4189)
    3rd Gen Intel Xeon Scalable processors
  • Core Count
    Up to 40C/80T; Up to 60MB Cache per CPU

GPU

  • Max GPU Count
    Up to 2 single-width GPUs
  • Supported GPU
    NVIDIA PCIe: L4, A2
    Intel PCIe: Intel Data Center GPU Flex 140

System Memory

  • Memory
    Slot Count: 16 DIMM slots
    Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel Optane persistent memory 200 series
  • Memory Voltage
    1.2V

On-Board Devices

  • SATA
    SATA (6Gbps) ; RAID 0/1/5/10 support
  • NVMe
    NVMe; RAID 0/1/5/10 support(VROC HW key required)
  • Chipset
    Intel C621A
  • Network Connectivity
    Via AIOM

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.2 Gen1 Type-A ports(rear)
    2 USB 2.0 Type-A ports(front)
  • Video
    1 VGA port
  • Serial
    1 COM port(Rear)
  • DOM
    1 Super DOM (Disk on Module) port
  • TPM
    1 TPM header

System BIOS

  • BIOS Type
    AMI 32MB SPI FLASH ROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    1U Rackmount
  • Model
    CSE-LB16TS-R860AWP

Dimensions and Weight

  • Height
    1.7″ (43 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    23.5″ (597 mm)
  • Package
    7.7″ (H) x 23.7″ (W) x 31.8″ (D)
  • Weight
    Gross Weight: 40 lbs (18.14 kg)
    Net Weight: 25 lbs (11.34 kg)
  • Available Color
    Black

Front Panel

  • LED
    Device Activity
    LAN 1 Activity
    LAN 2 Activity
    Power status
    System information
  • Buttons
    Power On/Off
    UID button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 2 PCIe 4.0 x16 FHHL slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 10 bays 10 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bays
    (*NVMe/SAS support may require additional storage controller and/or cables)
  • M.2
    2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)

System Cooling

  • Fans
    6x 4cm heavy duty fans with optimal fan speed control
  • Air Shroud
    2 Air Shrouds

Power Supply

  • 2x 860W
    2x 860W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies
    Dimension (WxHxL)
    54.5 x 40.25 x 322 mm
    Input
    800W: 100-127Vac
    800W: 100-127Vac / 50-60Hz
    860W: 200-240Vac
    860W: 200-240Vdc / 50-60Hz
    860W: 200-240Vac / 50-60Hz
    +12V
    Max: 66.6A / Min: 0A (100Vac-127Vac)
    Max: 71.6A / Min: 0A (200Vdc-240Vdc)
    Max: 71.6A / Min: 0A (200Vac-240Vac)
    5V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Products Status

New
Applications

CDN, Cloud Computing, Compact Server, Data Center Optimized, DNS & Gateway Servers, Edge Nodes, Firewall Application, Value IaaS, Web Server
Max GPU

2
CPU Type

3rd Gen Intel Xeon Scalable processors
Total PCI-E Slots

2
Drives

10
Drive Form Factors

2.5"
Form Factor

1U
Generation

X12
Interface

NVMe (Optional), SAS (Optional), SATA (Native)
SATA

SATA (6Gbps) ; RAID 0/1/5/10 support
LED

Device ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem information
Max GPU Count

Up to 2 single-width GPUs
Serial

1 COM port(Rear)
Supported GPU

A2Intel PCIe: Intel Data Center GPU Flex 140View GPU Options, NVIDIA PCIe: L4
Air Shroud

2 Air Shrouds
Network Connectivity

Via AIOMView AIOM OptionsView AOC Options
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type

AMI 32MB SPI FLASH ROM
Package

7.7" (H) x 23.7" (W) x 31.8" (D)
Depth

23.5" (597 mm)
Fans

6x 4cm heavy duty fans with optimal fan speed control
Height

1.7" (43 mm)
Buttons

Power On/OffUID button
M.2

2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)
Memory

Slot Count: 16 DIMM slotsMax Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Width

17.2" (437 mm)
Video

1 VGA port
ROHS

RoHS Compliant
Core Count

Up to 40C/80T; Up to 60MB Cache per CPU
NVMe

NVMe; RAID 0/1/5/10 support(VROC HW key required)View NVMe Options
Note

Supports up to 270W TDP CPUs (Air Cooled)**Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
Weight

Gross Weight: 40 lbs (18.14 kg)Net Weight: 25 lbs (11.34 kg)
Drive Bays Configuration

Default: Total 10 bays(*NVMe/SAS support may require additional storage controller and/or cables)
USB

2 USB 3.0 ports(rear)2 USB 2.0 ports(front)
Available Color

Black
PCI-Express (PCIe) Configuration

Default
TPM

1 TPM Header
CPU

Dual Socket P4 (LGA-4189)3rd Gen Intel Xeon Scalable processors
Chipset

Intel C621A
Memory Voltage

1.2V
Environmental Spec.
DOM

DOM
