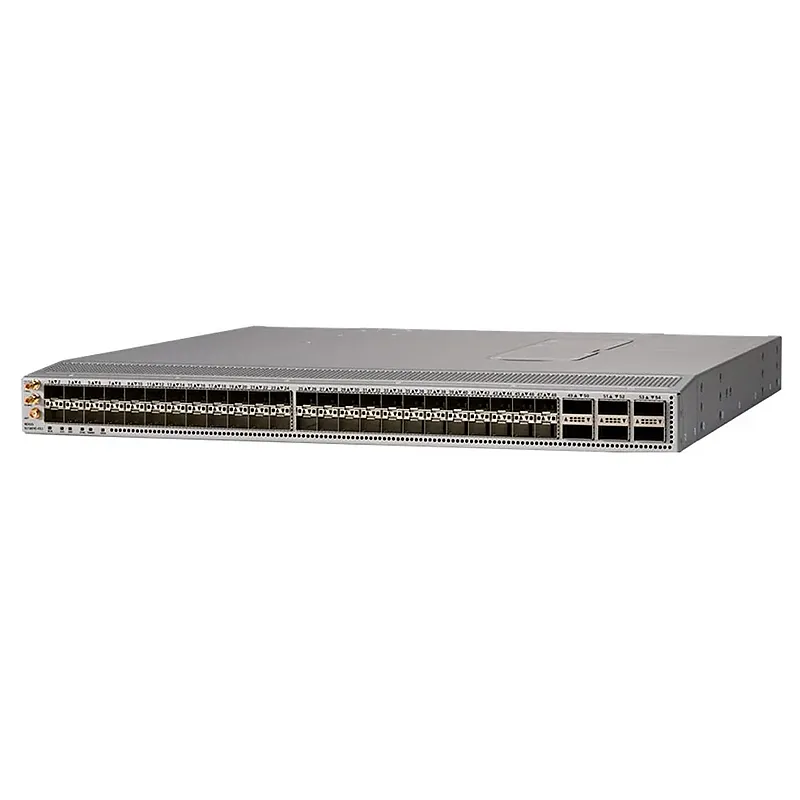

Cisco Nexus 93180YC-FX – switch – 48 ports – managed – rack-mountable

$Quote1 Piece(MOQ)

SKU N9K-C93180YC-FX Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

N9K-C93180YC-FX Overview

The Cisco Nexus 93180YC-FX Switch is a 1RU switch with latency of less than 1 microsecond that supports 3.6 Tbps of bandwidth and 1.2 bpps. The 48 downlink ports on the 93180YC-FX are capable of supporting 1-, 10-, or 25-Gbps Ethernet or as 16-, 32-Gbps Fibre Channel ports, creating a point of convergence for primary storage, compute servers, and back-end storage resources at the top of rack.

Quick Specs



SKU N9K-C93180YC-FX
Ports 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports
Downlink supported speeds 1/10/25-Gbps Ethernet

16/32-Gbps Fibre Channel

CPU 6 cores
System memory Up to 32 GB
SSD drive 128 GB
System buffer 40 MB
Typical power (AC/DC) 260W
USB ports 1
RS-232 serial ports 1

Product Details

Cisco N9K-C93180YC-FX provides the following features and benefits:

??Architectural Flexibility

??Architectural Flexibility

??High Scalability, Flexibility, and Security

??Intelligent Buffer Management

??RDME over Converged Ethernet ?C RoCE Support

??LAN and SAN Convergence

??Hardware and Software High Availability

??Purpose-Built Cisco NX-OS Software Operating System with Comprehensive, Proven Innovations

??Cisco Tetration Analytics Platform Support

??Cisco Network Assurance Engine (NAE)

Management ports

1 RJ-45 port, L1 and L2 ports are unused

Typical power (AC/DC)

260W

Fans

4

Maximum power (AC/DC)*

425W

Power supplies (up to 2)

500W AC, 930W DC, or 1200W HVAC/HVDC

RS-232 serial ports

1

Input voltage (High-Voltage DC [HVDC])

C240 to C380V

Ports

48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports

Operating temperature

32 to 104F (0 to 40C)

Physical dimensions (H x W x D)

1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)

USB ports

1

System buffer

40 MB

RoHS compliance

Yes

Input voltage (DC)

C48 to C60V

Input voltage (High-Voltage AC [HVAC])

200 to 277V

Humidity

5 to 95% (noncondensing)

CPU

6 cores

Brand

Cisco

Input voltage (AC)

100 to 240V

Frequency (AC)

50 to 60 Hz

Altitude

0 to 13,123 ft (0 to 4000m)

Airflow

Port-side intake and exhaust

System memory

Up to 32 GB

Model

N9K-C93180YC-FX

MTBF

238,470 hours

SSD drive

128 GB

Acoustics

57 dBA at 40% fan speed, 68.9 dBA at 70% fan speed, and 77.4 dBA at 100% fan speed

Nonoperating (storage) temperature

C40 to 158F (C40 to 70C)
