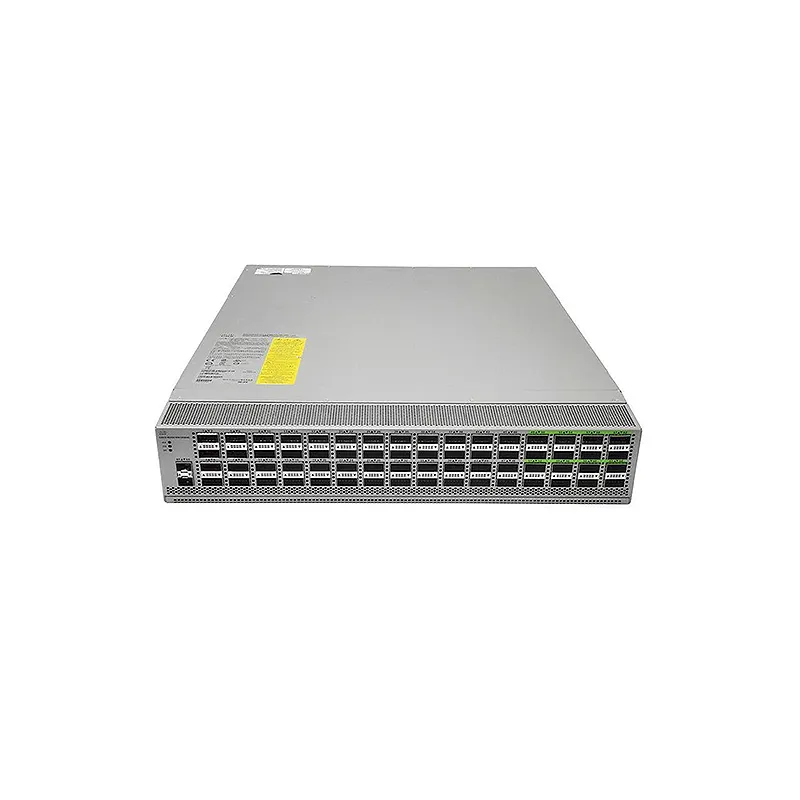

Cisco Nexus 9300-GX Series Switch | N9K-C9364C-GX

$Quote1 Pieces ( MOQ )

SKU N9K-C9364C-GX Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

Click or drag files to this area to upload. You can upload up to 3 files.
.doc, .xls, .pdf, .png, .jpg, .xlsx, .csv formats only

Based on Cisco® Cloud Scale technology, the Cisco Nexus® 9300-GX switches are the next generation of fixed Cisco Nexus 9000 Series Switches capable of supporting 400 Gigabit Ethernet (GE). With the increase in use cases for applications requiring Artificial Intelligence (AI) and Machine Learning (ML), the platform addresses the need for high-performance, power-efficient, compact switches in the networking infrastructure. These switches are designed to support 100G and 400G fabrics for mobile service provider environments, including the network edge, 5G, IoT, Professional Media Networking platform (PMN), and Network Functions Virtuapization (NFV) The platform introduces a backward-compatible 400G optical interface Quad Small Form-Factor Pluggable – Double Density (QSFP-DD) to transparently migrate existing data center fabrics from 40-Gbps and 100-Gbps speeds to 400 Gbps and also offers various lower port speeds and densities, including 10, 25, 50, and 200 Gbps using breakouts. The Cisco Nexus 9300-GX provides investment protection for customers, delivering higher performance to meet scaled out spine-leaf fabrics to support growing traffic for cloud applications.

Cisco provides two modes of operation for Cisco Nexus 9000 Series Switches. Organizations can deploy Cisco Application Centric Infrastructure (Cisco ACI®) or Cisco NX-OS mode.

Cisco ACI is a holistic, intent-driven architecture with centralized automation and policy-based application profiles. It provides a robust, transport network for dynamic workloads and is built on a network fabric that combines time-tested protocols with new innovations to create a highly flexible, scalable, and resilient architecture of low-latency, high-bandwidth links. This fabric delivers a network that can support the most demanding and flexible data center environments.

Designed for the programmable network, the Cisco NX-OS operating system automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.

Brand

Cisco

Model

N9K-C9364C-GX

Ports

64 x 100/40-Gbps QSFP28 ports

CPU

4 Cores

System Memory

Up to 32 GB

Solid-State Disk (SSD) Drive

128 GB

Shared System Buffer

80 MB

Management Ports

2 ports: 1 RJ45 and 1 SFP

USB Ports

1

RS-232 Serial Port

1

Power Supplies (up to 2)

2000W AC, 200W DC, 2000W HVAC/HVDC

Typical Power (AC/DC)

811W

Maximum Power (AC/DC)

1622W

Input Voltage (AC)

100 to 240V

Input Voltage (HVAC)

100 to 277V

Input Voltage (DC)

-40 to -72V

Input Voltage (HVDC)

-240 to -380V

Frequency (AC)

50 to 60 Hz

Fans

3+1 redundancy

Airflow

Port-side intake and exhaust

Physical (H x W x D)

3.39 x 17.41 x 22.59 in. (8.61 x 44.23 x 57.4 cm)

Acoustics

73.2 dBA at 50% fan speed, 81.8 dBA at 70% fan speed, and 88.8 dBA at 100% fan speed.

RoHS Compliance

Yes

MTBF

237,760 hours

Minimum ACI image

ACI-N9KDK9-14.2(3)

Minimum NX-OS image

NXOS-9.3.3
