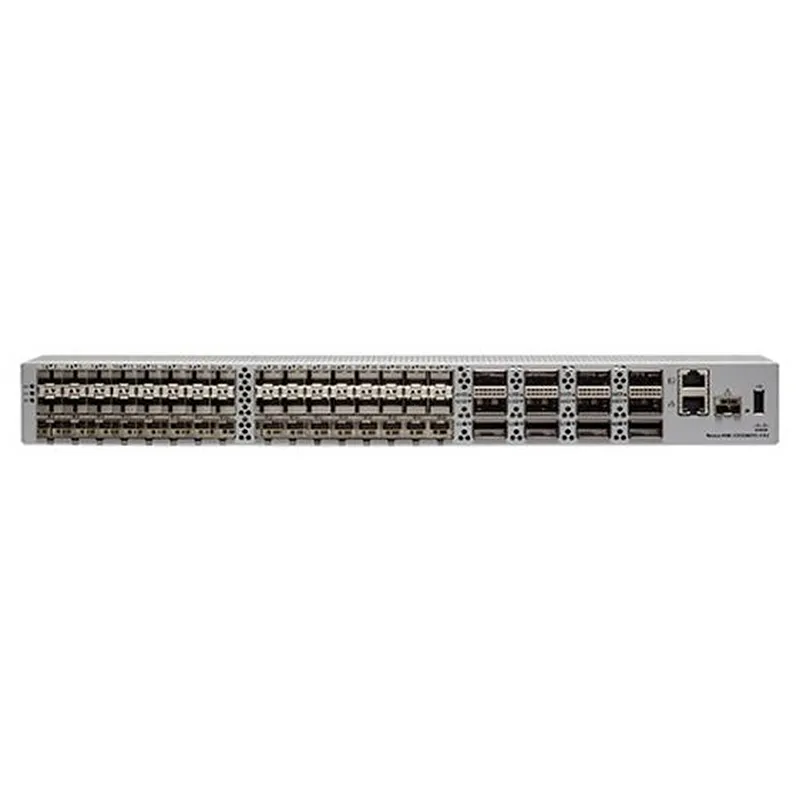

Cisco N9K-C93240YC-FX2 48x 25GB SFP 12x 100GB QSFP28 Front-to-Back Air Switch

$Quote1 Piece(MOQ)

SKU N9K-C93240YC-FX2 Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

N9K-C93240YC-FX2 Overview

Cisco Nexus 9300-FX2 series is an extension of Nexus 9300-FX series switches with higher bandwidth capacity. The switches offer a variety of interface options to transparently migrate existing data centers from 1-Gbps, and 10-Gbps speeds to 25- Gbps at the server, and from 10- and 40-Gbps speeds to 50- and 100- Gbps at the aggregation layer. The platforms provide investment protection for customers, delivering large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.

Quick Specs



Product Code N9K-C93240YC-FX2
Ports 48 x 1/10/25-Gbps and 12 x 40/100-Gbps QSFP28 ports
Supported speeds 1/10/25-Gbps on downlinks

40/100-Gbps on uplinks

CPU 4 cores
System memory Upto 24 GB
SSD drive 128 GB
System buffer 40 MB

Product Details

– Architectural Flexibility

– Extensive Programmability

– High Scalability, flexibility, and security

– Intelligent Buffer Management

– RDME over Converged Ethernet ?C RoCE support

– LAN and SAN Convergence

– Hardware and software high availability

– Purpose-built Cisco NX-OS Software operating system with comprehensive, proven innovations

– Cisco Tetration Analytics platform support

– Cisco Network Assurance Engine (NAE)

Brand

Cisco

Model

N9K-C93240YC-FX2

Ports

48 x 1/10/25-Gbps and 12 x 40/100-Gbps QSFP28 ports

Supported speeds

1/10/25-Gbps on downlinks, 40/100-Gbps on uplinks

CPU

4 cores

System memory

Up to 24 GB

SSD drive

128 GB

System buffer

40 MB

Management ports

2 ports: 1 RJ-45 and 1 SFP+

USB ports

1

RS-232 serial ports

1

Power supplies (up to 2)

750W AC*, 1100W AC, 1100W DC, 1100W HVAC/HVDC

Typical power (AC)

298W

Maximum power (AC)

708W

Input voltage (AC)

100 to 240V

Input voltage (High-Voltage AC [HVAC])

100 to 277V

Input voltage (DC)

?C40 to ?C72V

Input voltage (High-Voltage DC [HVDC])

?C240 to ?C380V

Frequency (AC)

50 to 60 Hz

Fans

5

Airflow

Port-side intake and exhaust

Physical dimensions (H x W x D)

2.1 x 17.3 x 23.3 in. (5.3 x 43.9 x 59.1 cm)

MTBF

365,610 hours

Maximum number of Longest Prefix Match (LPM) routes**

896,000

Maximum number of IP host entries**

896,000

Maximum number of MAC address entries**

256,000

Maximum number of multicast routes

128,000
