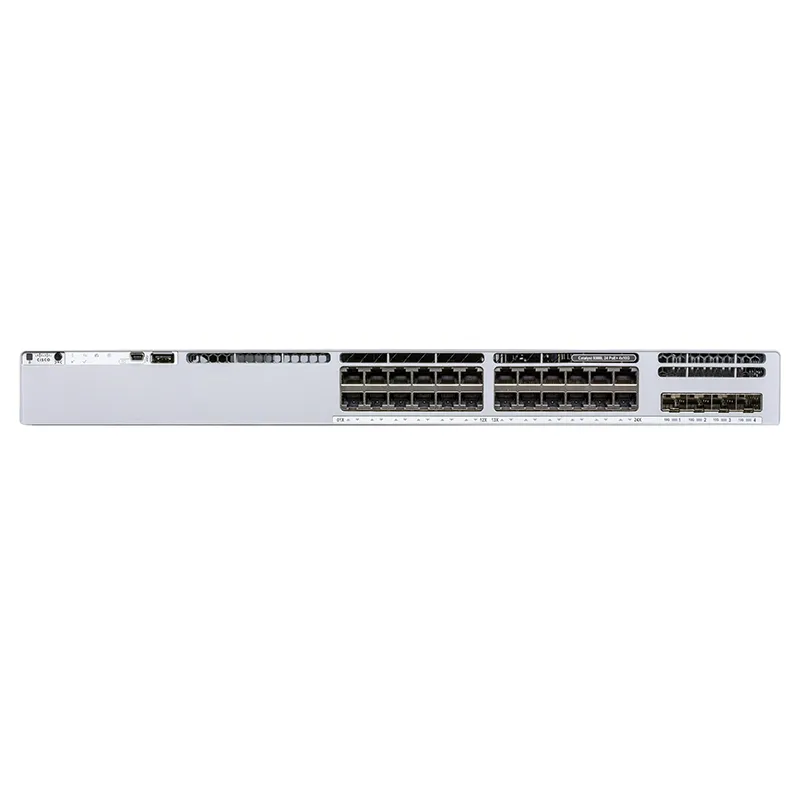

Cisco Catalyst 9300X-12Y-E Switch (C9300X-12Y-E)

$Quote1 Pieces ( MOQ )

SKU C9300X-12Y-E Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

C9300X-12Y-E Overview

The Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE) and 90W Cisco UPOE®+ ports.

Quick Specs

Table 1 shows the Quick Specs.

Product Code C9300X-12Y-E
Product Description Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials
Device Type Switch – 12 ports – L3 – managed – stackable
Enclosure Type Rack-mountable 1U
Subtype 25 Gigabit Ethernet
Ports 12 x 1/10/25 Gigabit SFP28
RAM 16 GB
Flash Memory 16 GB
Interfaces 24 x 1/10/25GBase-X SFP28
Brand

Cisco

Model

C9300X-12Y-E

Device Type

Switch – 12 ports – L3 – managed – stackable

Enclosure Type

Rack-mountable 1U

Subtype

25 Gigabit Ethernet

Ports

12 x 1/10/25 Gigabit SFP28

Performance

Switching capacity: 1000 Gbps ¦ Switching capacity with stacking: 2000 Gbps ¦ Forwarding rate: 744.04 Mpps ¦ Forwarding rate with stacking: 1488 Mpps

Capacity

IPv4 routing table entries: 39000 ¦ Flexible NetFlow entries: 64000 ¦ Direct IPv4 routes: 24000 ¦ Indirect IPv4 routes: 15000 ¦ IPv6 routing table entries: 19500 ¦ VLAN IDs: 4094 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Multicast routing flow table: 8000 ¦ QoS scale entries: 4000 ¦ ACL scale entries: 5000 ¦ PVST instances: 300 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000 ¦ Routed ports: 448

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at

RAM

16 GB

Flash Memory

16 GB

Status Indicators

Status

Interfaces

24 x 1/10/25GBase-X SFP28

Power Device

Internal power supply

Power Provided

715 Watt

Voltage Required

AC 120/230 V (50/60 Hz)

Width

17.5 in

Depth

16.1 in

Height

1.7 in
