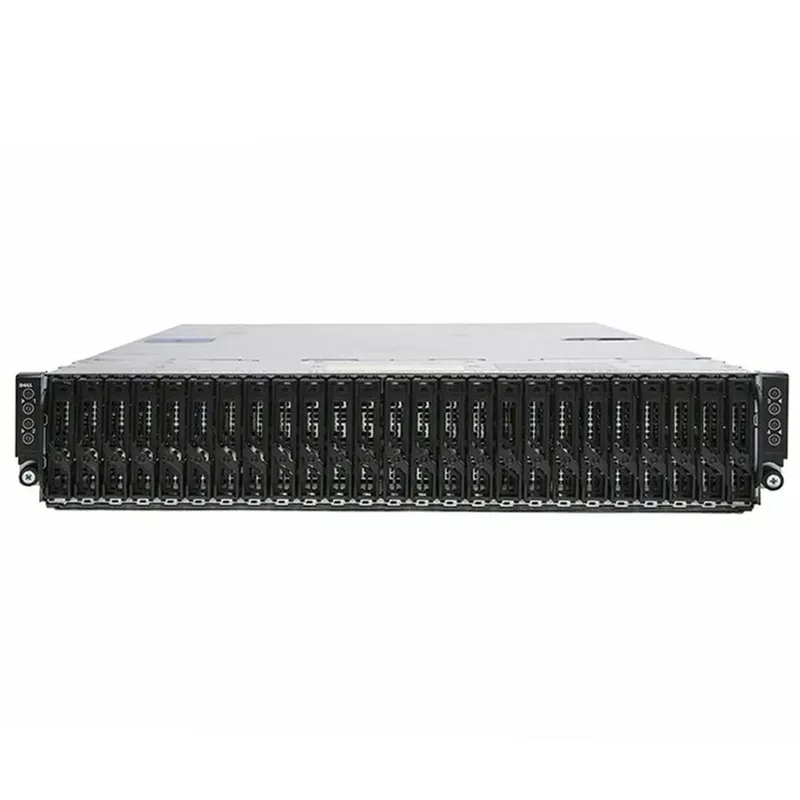

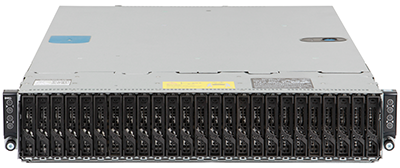

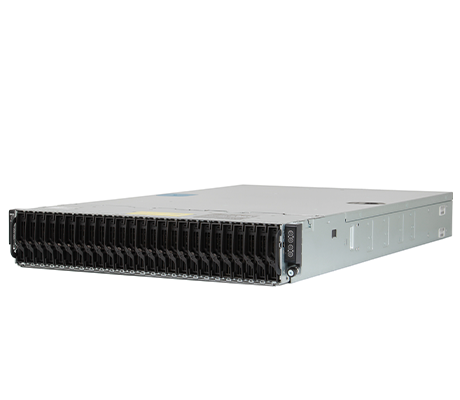

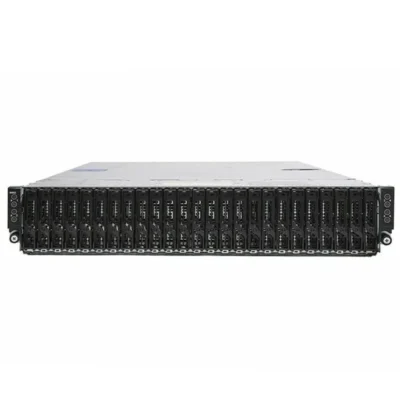

C6220 Dell PowerEdge 2U Rack Server
| Dell PowerEdge C6220 Rack Server – Specifications |

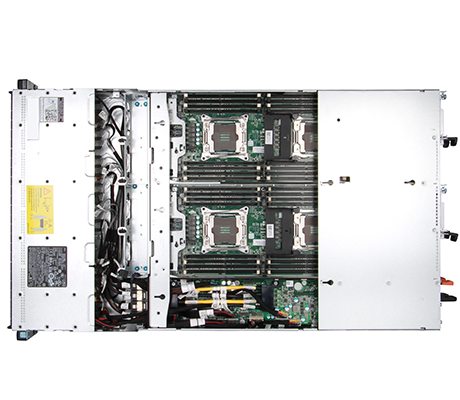

| PROCESSOR |
| Up to four 2-socket servers, 2, 4, 6, or 8 cores per processor |
| Intel Xeon processor E5-2600 product family, with L3 cache: up to 20MB |
| OPERATING SYSTEM |
| Novell® SUSE® Linux Enterprise Server 11 SP2 |
| Red Hat® Enterprise Linux® |
| Microsoft® Windows Server® 2012 |
| Microsoft Windows Server 2008 R2 Enterprise x64 SP1 |
| Microsoft Windows® HPC Server 2008 R2 x64 SP1 |
| CHIPSET |
| Intel C602 chipset |
| MEMORY |
| 16 DIMM slots for up to 512GB per node: |
| 4GB/8GB/16GB/32GB LV DDR3 RDIMM (1333MT/s) |
| 4GB/8GB/16GB (1600MT/s 1.5v/1.35v) DDR3 RDIMM |
| STORAGE |
| Maximum internal storage: 48TB SATA or NL 48TB SAS |
| DRIVE BAYS AND HARD DRIVES |
| 24 x 2.5” or 12 x 3.5” hard drive options |
| 2.5” SAS (15K): 146GB, 300GB |
| 2.5” SAS (10K): 300GB, 600GB, 900GB, 1.2TB |
| 2.5” SATA and NL SAS (7.2K): 500GB, 1TB |
| 2.5” SATA SSD (eMLC): 100GB, 200GB, 400GB, 800GB |
| 2.5” SATA SSD (MLC): 160GB, 300GB, 600GB |
| 3.5” SATA (7.2K): 500GB, 1TB, 2TB, 3TB, 4TB |
| 3.5” SAS (15K): 300GB, 600GB |
| 3.5” NL SAS (7.2K): 1TB, 2TB, 3TB, 4TB |
| CONNECTIVITY |
| Intel Ethernet Controller i350, 2 x 1Gb Ethernet; 1 x 100Mb Ethernet dedicated management port |
| USB PORTS |
| 2 external ports (back) |
| I/O SLOTS |
| 1U-node version: 1 x8 mezzanine, 1 x 16 half-height (low profile), half-length slot |
| 2U-node version: 1 x8 mezzanine slot; 1 x16 full-height, half-length slot; 1 x16 full-height, full-length slot |
| I/O ADAPTER OPTIONS |
| 1Gb Ethernet: |
| Intel i350 quad-port 1Gb adapter |
| Intel 82580 ET quad-port 1Gb mezz |
| 10Gb Ethernet: |
| Intel 82599 dual-port 10Gb DA/SFP+ mezz |
| Intel X520 dual-port 10Gb DA/SFP+ mezz |
| InfiniBand: |
| QLogic® QLE7340 QDR single-port adapter |
| Mellanox® ConnectX®-2 QDR dual-port mezz |
| Mellanox ConnectX-3 FDR single-port mezz |
| Dell X410 host interface card (HIC) for connection to the C410x |
| DRIVE CONTROLLER |
| Intel C602: SATA or SSD drives only; LSI® 2008 3Gbs SAS mezzanine or LSI 9265-8i 3Gbs (optional) |
| RAID CONTROLLER |
| LSI 2008 SAS mezzanine (optional) |
| LSI 9210-8i SAS add-in controller (optional) |
| LSI 9265-8i SAS add-in controller (optional) |

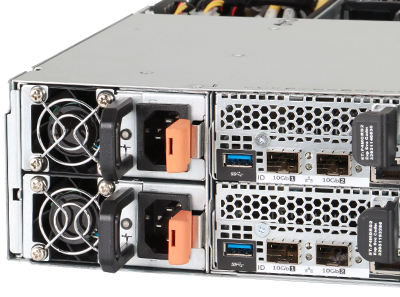

| POWER SUPPLIES |
| Dual hot-plug redundant high-efficiency 1200W/1400W power supplies |
| FANS |
| Shared cooling with quick-disconnect 4 x 60mm speed fans detectable with PWM control |
| HYPERVISORS |
| Citrix® XenServer® |
| VMware® vSphere® ESXi™ |
| Microsoft Hyper-V® Server 2008 R2 SP1 |
| VIDEO |
| Integrated AST2300 with up to 16MB video RAM |
