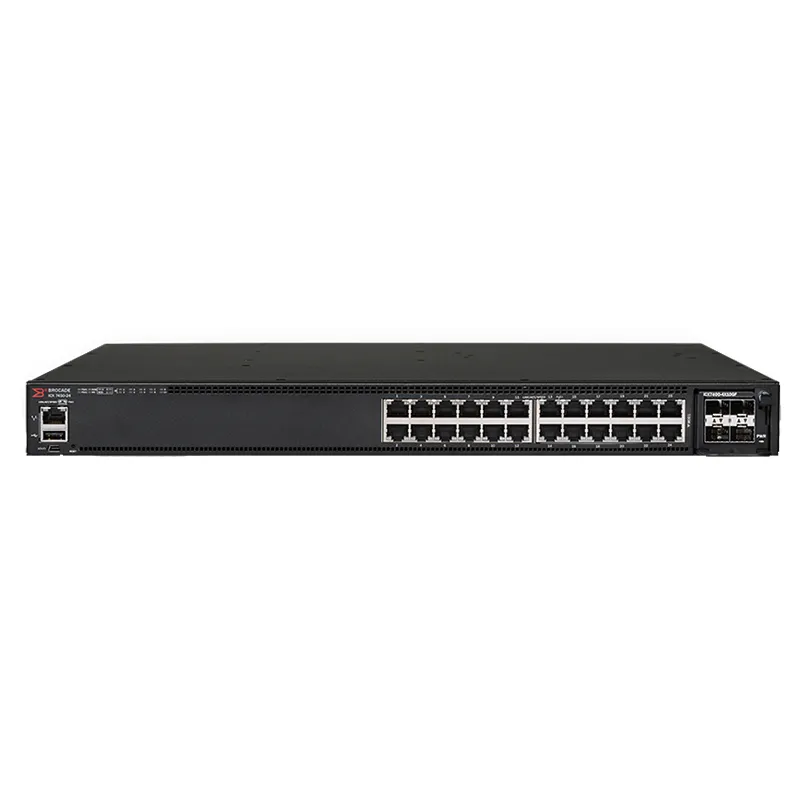

Brocade ICX7450-24 Layer 3 Switch 2410/100/1000 Mbps RJ-45 ports

**Brocade ICX7450-24 Layer 3 Switch** delivers enterprise-grade networking with 24 auto-sensing 10/100/1000 Mbps RJ-45 ports, enabling high-speed connectivity for diverse devices. Its Layer 3 routing capabilities support advanced features like dynamic routing protocols, VLANs, and QoS, ensuring optimized traffic management and network segmentation. Scalable through stackable architecture, it simplifies expansion with seamless integration of up to 12 units, maximizing flexibility for growing demands. Robust security includes ACLs, RADIUS/TACACS+, and secure management protocols, safeguarding critical data. Energy-efficient design reduces power consumption without compromising performance, while redundant power and cooling options enhance reliability for mission-critical environments. Ideal for medium to large enterprises, the ICX7450-24 combines high port density, low latency, and enterprise-level resilience, making it a cost-effective solution for demanding networks requiring agility, security, and future-ready scalability.

$Quote1 Piece(MOQ)

SKU ICX7450-24 Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
    • Includes:
    • 1x Brocade ICX7450-24
    • 2x Fans (ICX-FAN10-E)
    • 2x Power Supply Units (RPS15-E)
    • 1x Rack Mount Kit (ICX7000-RMK)
    • 1x Module Blanks (ICX7450-MOD-BLANK)
    • 2x Power cords
    • *Does not include console cable*
LACP

Yes

Network Management Type

Managed

Protocols

Routing Protocol: IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP, MLDv2, MLD Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI

SNMP

SNMP 1, SNMP 3, SNMP 2c

Switch Type

Layer 3 Switch

Format

Stackable

Security

Encryption Algorithm: AES

Temperature

Operating temperature: -5 C to 50 C Storage temperature: -25 C to 70 C

Jumbo Frames

9216 bytes

Module Support

0 (installed) / 3 (max)

Primary Ports

24 x RJ45

VLAN Support

Yes

MAC Address Table

32K

Model

ICX7450-24

Port Mirroring

Yes

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az

Weight

14.11 lbs.

QoS

Yes

Dimensions

1.72" x 17.32" x 15.50"

Brand

Brocade

Humidity

Operating: 5 – 95% (non-condensing) Storage: 0 – 95% (non-condensing)

Primary Port Speed

10/100/1000Mbps

Stackable

Yes
