| Size | 30.5cmx24.4cm |
|---|---|
| USB Ports | 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD TRX40 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board) AMD TRX40 chipset : 6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board) AMD TRX40 chipset : 2 x USB 2.0 port(s) (2 at mid-board) ASMedia USB 3.2 Gen 1 controller : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A) GL852G USB Hub : 2 x USB 2.0 port(s) (2 at mid-board) |
| Product Name | ASUS TRX40-PRO S |
| Application | Workstation |
| Brand | ASUS |
| Packaging Details | BOX |
| Chipset | AMD TRX40 |
| CPU Brand | AMD |
| Memory | 8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory |
| Form Factors | ATX |
| Warranty | 1 Year |
| Internal I/O Connectors | 1 x Q_Code 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 with E key for Wi-Fi module 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) x With flexkey function 1 x Thermal sensor connector(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x USB 3.2 Gen 2 front panel connector |
| Platform | AMD |
| Products Status | New |
| Socket | AMD sTRX4 |
| Back I/O Ports | 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack) 6 x USB 3.2 Gen 1 (blue) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS FlashBack Button(s) |
| Form Factor | ATX |

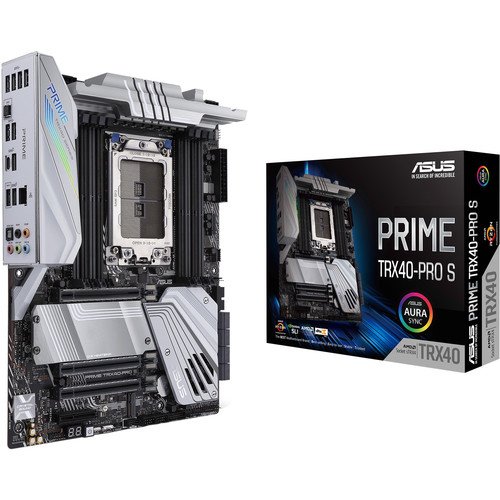

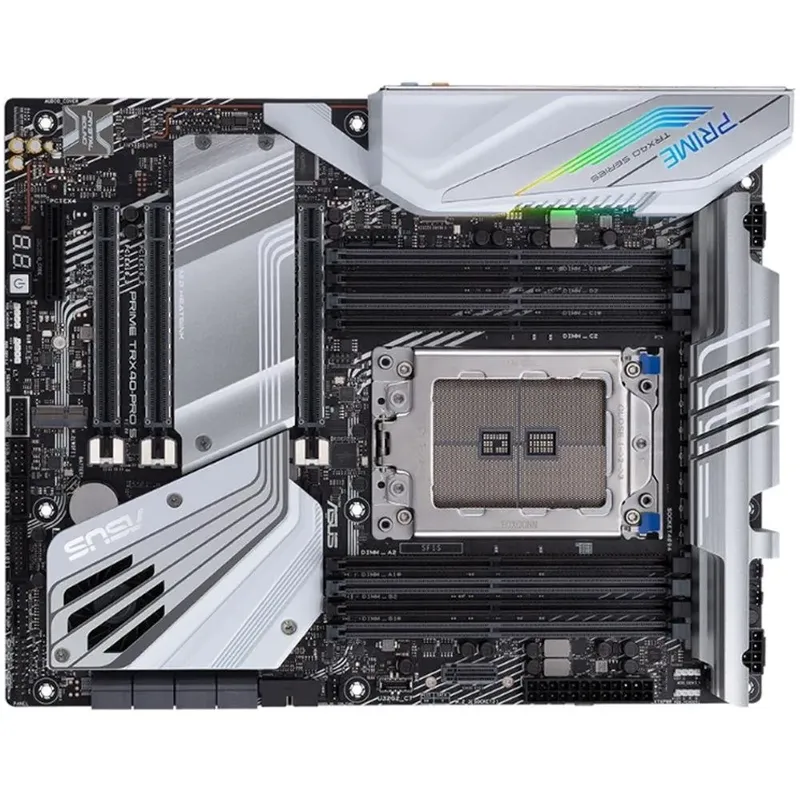

ASUS PRIME AMD TRX40-PRO S TRX4 ATX Motherboard
ASUS PRIME AMD TRX40-PRO S: A high-performance ATX motherboard engineered for AMD Ryzen Threadripper processors, featuring the TRX40 chipset for elite multitasking and content creation. Robust 16+2 power stages and comprehensive cooling ensure stable overclocking, while PCIe 4.0 support maximizes GPU and NVMe SSD performance. Offers dual M.2 slots, USB 3.2 Gen 2 connectivity, 2.5G LAN, Wi-Fi 6, and AI noise cancellation for crystal-clear communication. Built with durable components, reinforced slots, and intuitive BIOS tools, it’s ideal for workstations demanding reliability, expandability, and cutting-edge connectivity.
$Quote1 Piece(MOQ)
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Q1: ls the product original ?
A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.
Q2. Payment methods?
We accept T/T, PayPal, Alibaba ect.
Q3. Shipping methods?
We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.
Q4. How long is the lead time?
Usually 1-3 working days after payment. Feel free to send me exact models for checking.
Q5. How long is the warranty period?
Different products have different warranty periods. Usually 1~3 years warranty.
