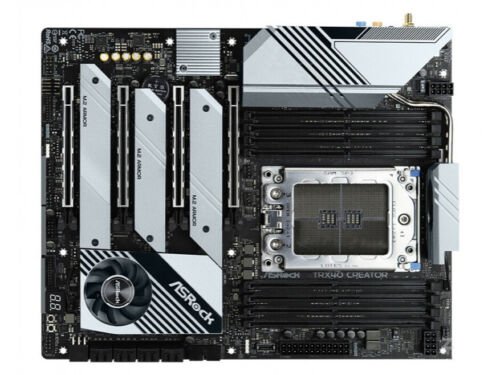

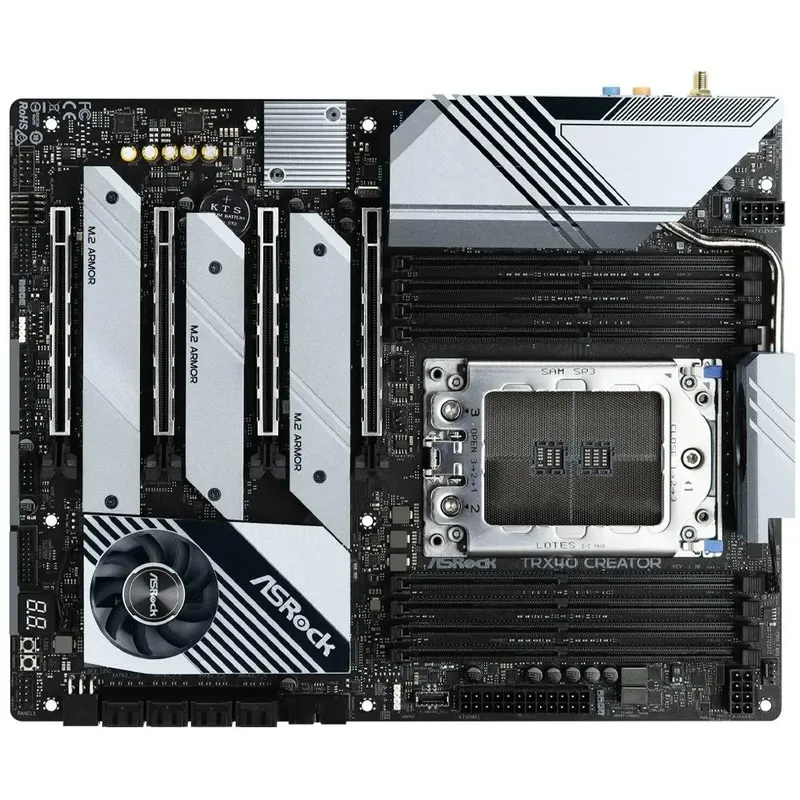

Asrock TRX40 creato

Asrock TRX40 creato

$Quote1 Pieces ( MOQ )

SKU TRX40 Category Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

Warranty

1 Year

Chipset

AMD TRX40 Series

CPU Brand

AMD

Memory

Quad Channel DDR4 Memory Technology 8 x DDR4 DIMM Slots Supports DDR4 4666(OC)+ / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non ECC, un buffered memory (U DIMM) Max. capacity of system memory: 256GB 15μ Gold Contact in DIMM Slots

Size

30.5cmx24.4cm

Packaging Details

BOX

Product Name

Asrock TRX40 creato

Back I/O Ports

2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x Optical SPDIF Out Port – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)* – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection) – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) – 1 x Clear CMOS Button – 1 x BIOS Flashback Button – HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Brand

Asrock

Internal I/O Connectors

1 x TPM Header – 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 2 x Addressable LED Headers** – 1 x CPU Fan Connector (4-pin)*** – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector)****** – 1 x Right Angle Front Panel Audio Connector****** – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) – 1 x Dr. Debug with LED – 1 x Power Button – 1 x Reset Button – 1 x CPU Xtreme OC Switch

CPU Socket Type

AMD sTRX4

Application

PC

Form Factor

ATX

Products Status

New
