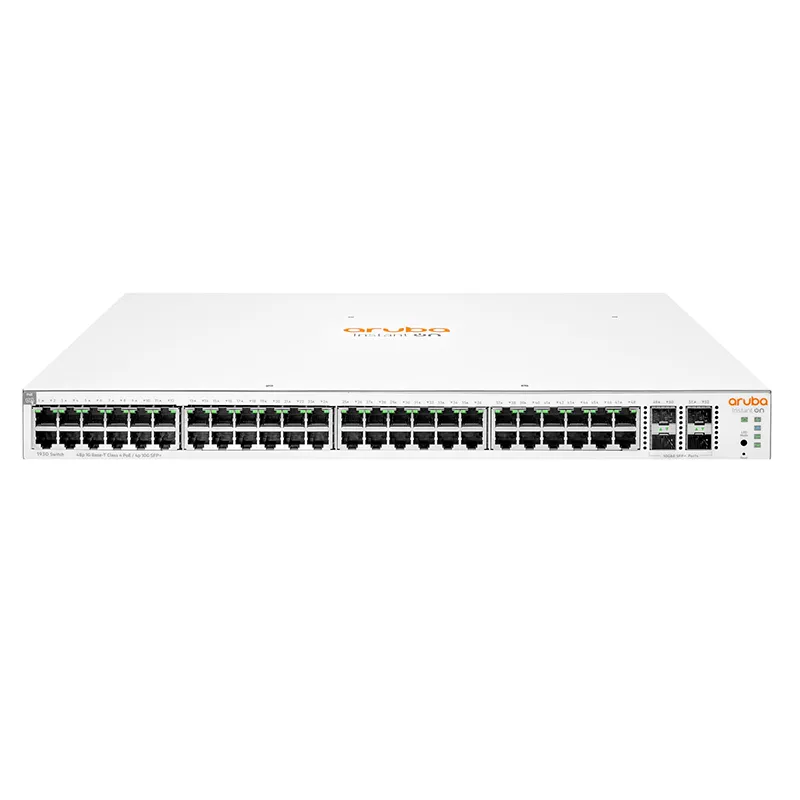

Aruba Instant On 1930 48-Port Gb Ethernet 48xGE PoE (370W), 4X 1G/10G SFP+, L2+ Smart Switch US Cord (JL686A#ABA)

  • The Aruba Instant On 1930 48G Class 4 PoE 4SFP/SFP+ 370W Switch is a high-performance, smart-managed switch designed for small businesses and SMBs – fast set-up, easy management, the security you can trust
  • Functionality: high performance, advanced features, and top security made simple – Gigabit wirespeed performance. Power over Ethernet (IEEE 802.3af/802.3at) across all RJ45 ports for powering Access Points, cameras, IP phones, and other IoT devices; PoE power (370W) for 24x full power 802.3af PoE devices. Feature-rich to fit into most networking enviroments. Built-in security protects your network from external threats by blocking malware attacks and keeping unauthorized users off the network
  • Configuration: Rack-width design with rack mounting ears. Or place desktop or flat surface. Ports and LEDs facing the front – #ABA w/ internal power supply and US-syle plug | Limited Lifetime warranty
  • Management: Simplified cloud management from app or web browser with no recurring cost – The Aruba Instant On mobile app allows you to set up, manage, and monitor Instant On switches and Access Points directly from your phone, from anywhere. Guided step-by-step instructions to install devices to get your network up and running quickly – no technical expertise required. Alternative integrated traditional full local web interface for advanced configuration with static routing, ACLs, SNMP
  • Ports: 52 active ports | 48x Gigabit 10/100/1000 + 4x Gigabit / 10G SFP+ slots| Power over Ethernet: PoE / PoE+ (Class 4) on 48 ports | PoE power budget 370 Watts | Smart-managed

$Quote1 Pieces ( MOQ )

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!


Product Description

Aruba HPE 1930 Series
Two Management Modes
Key Features and info

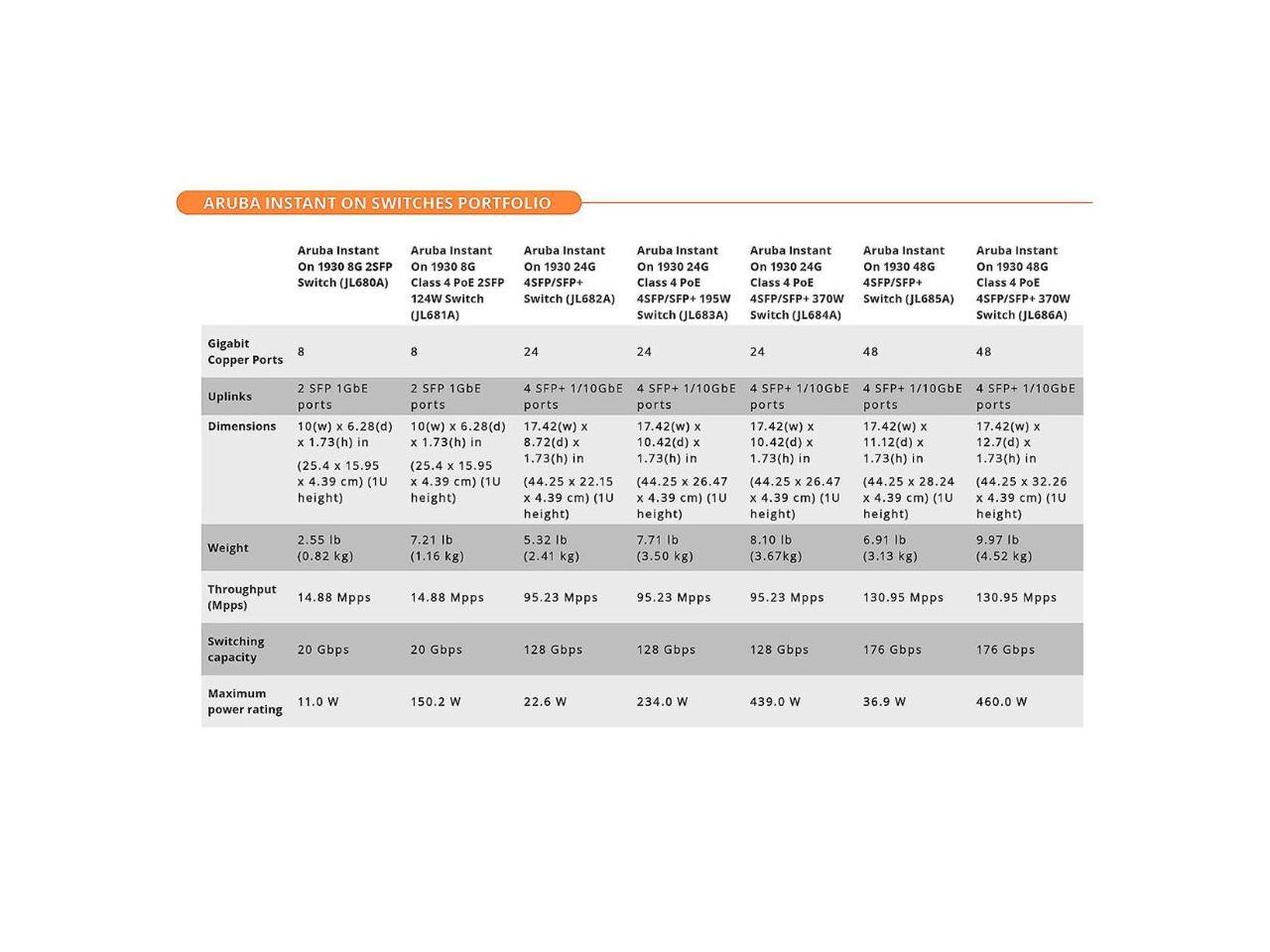

Aruba Portfolio of Switches



Brand

HPE

Series

Aruba Instant On 1930

Model

JL686A#ABA

Format

Desktop

Network Management Type

Smart

Primary Ports

48 x RJ45 + 4 x SFP

Primary Port Speed

10/100/1000Mbps + 10 Gbps

Primary Port Type

48 x RJ-45 autosensing 10/100/1000 Class 4 PoE ports4 x SFP+ 1/10GbE ports

MAC Address Table

16K

Buffer Memory

1.5MB

PoE

Yes

Power

370 W Class 4 PoE

Dimensions

1.73" x 17.42" x 12.70"

Weight

9.97 lbs.

Temperature

Operating temperature: 32°F to 104°F (0°C to 40°C)Non-operating temperature: -40°F to 158°F (-40°C to 70°C)

Humidity

Operating relative humidity: 15% to 95% @ 104°F (40°C)Non-operating relative humidity: 15% to 95% @ 140°F (60°C)
