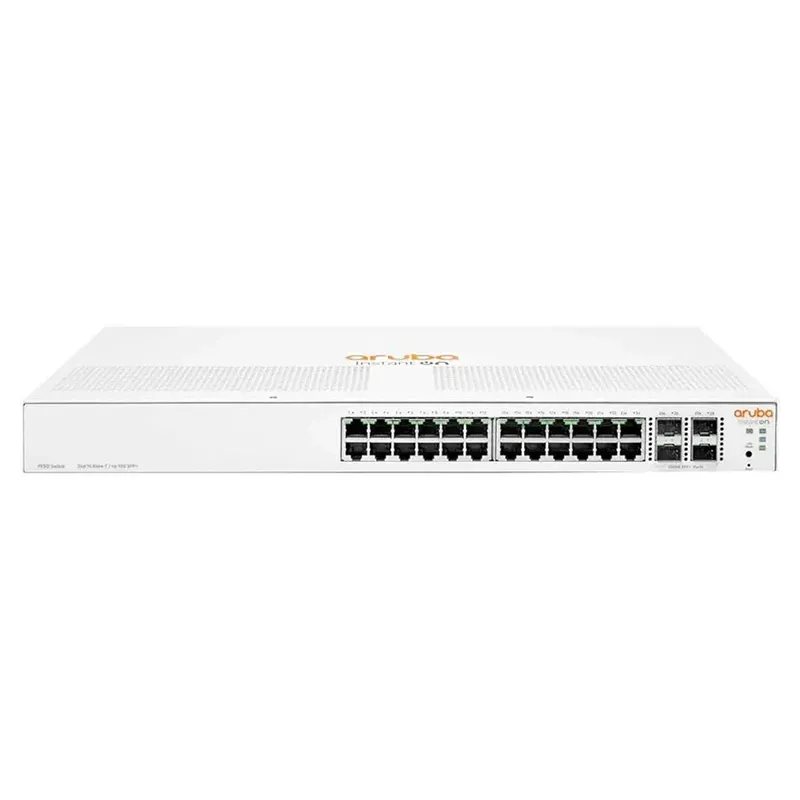

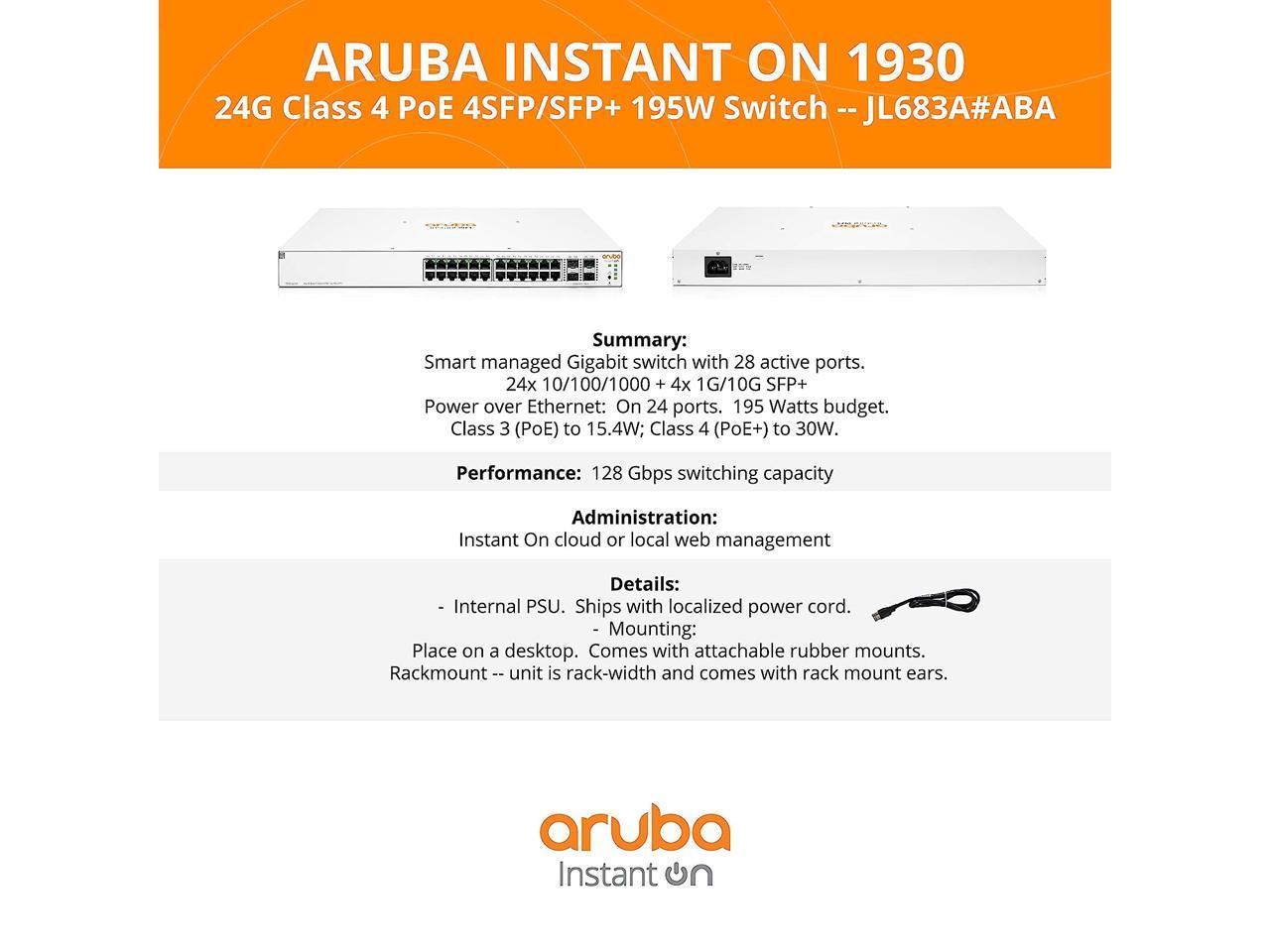

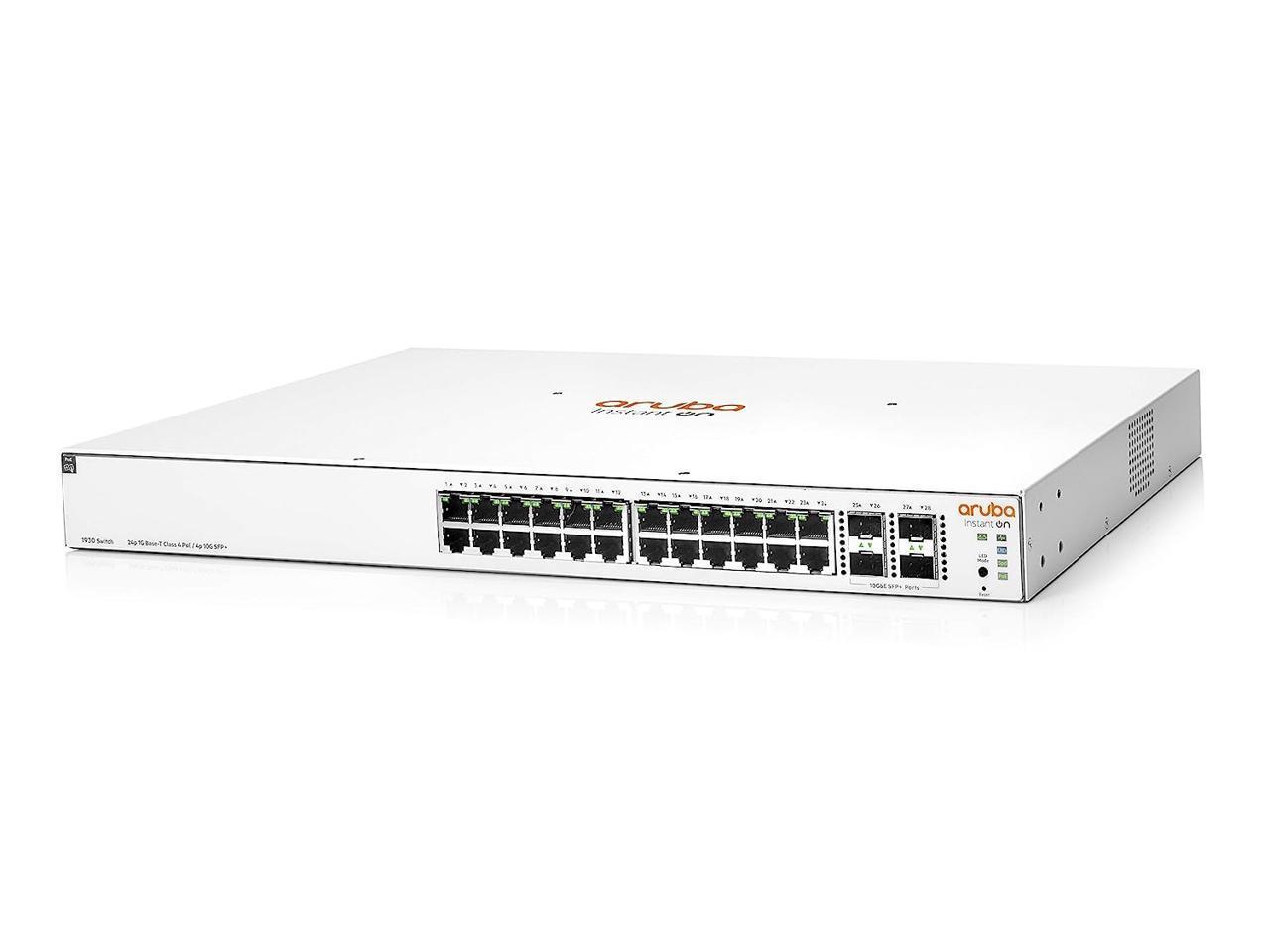

Aruba Instant On 1930 24-Port Gb Ethernet 24x 1G PoE (195W), 4X 1G/10G SFP+, L2+ Smart Switch US Cord (JL683A#ABA)

  • The Aruba Instant On 1930 24G Class 4 PoE 4SFP/SFP+ 195W Switch is a high-performance, smart-managed switch designed for small businesses and SMBs – fast set-up, easy management, the security you can trust

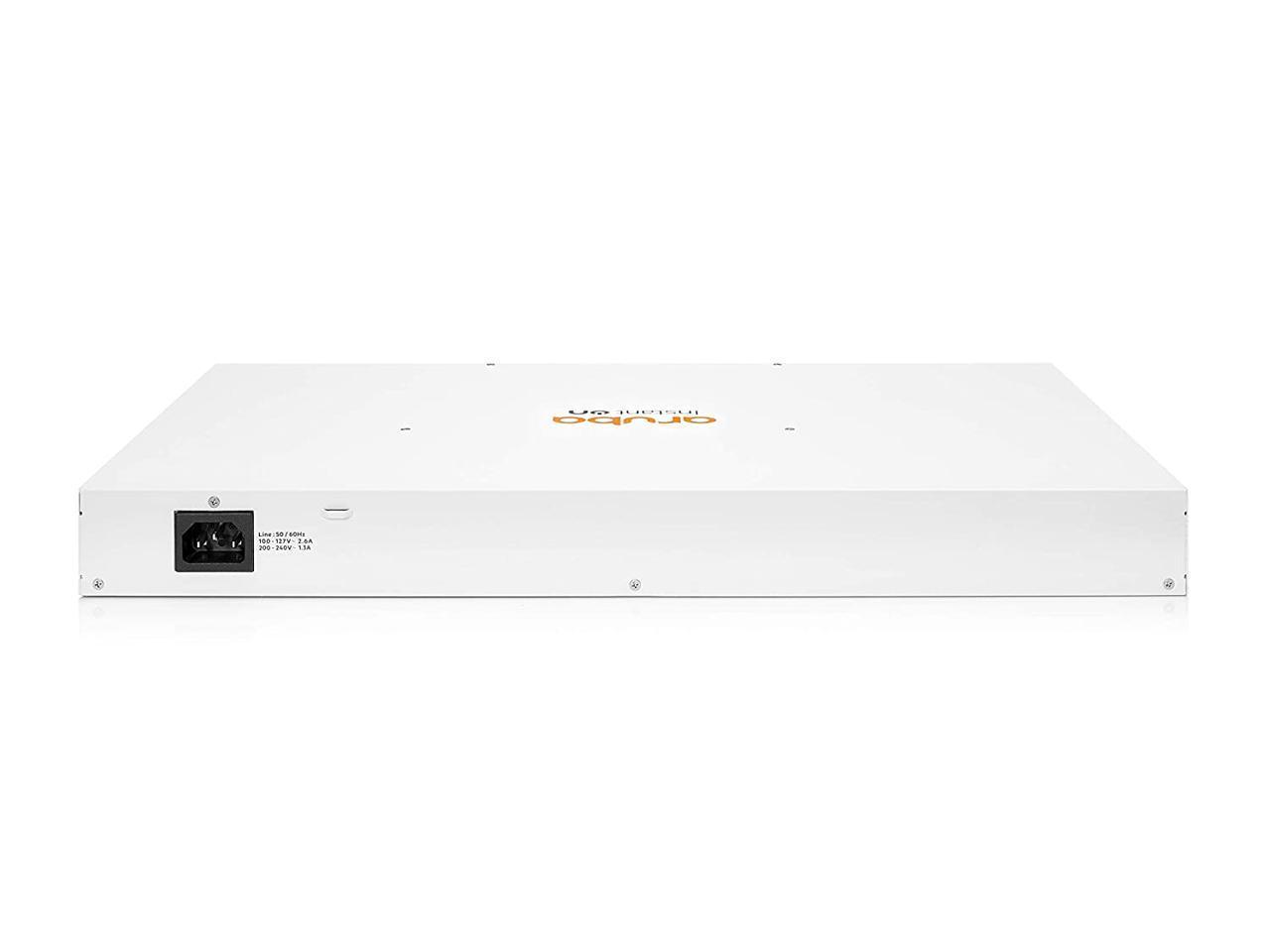

  • Configuration: Rack-width design with rack mounting ears. Or place desktop or flat surface. Ports and LEDs facing the front – #ABA w/ internal power supply and US-syle plug | Limited Lifetime warranty
  • Management: Simplified cloud management from app or web browser with no recurring cost – The Aruba Instant On mobile app allows you to set up, manage, and monitor Instant On switches and Access Points directly from your phone, from anywhere. Guided step-by-step instructions to install devices to get your network up and running quickly – no technical expertise required. Alternative integrated traditional full local web interface for advanced configuration with static routing, ACLs, SNMP
  • Ports: 28 active ports | 24x Gigabit 10/100/1000 + 4x Gigabit / 10G SFP+ slots | Power over Ethernet: PoE / PoE+ (Class 4) on 24 ports | PoE power budget 195 Watts | Smart-managed

$Quote1 Pieces ( MOQ )

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

Click or drag files to this area to upload. You can upload up to 3 files.
.doc, .xls, .pdf, .png, .jpg, .xlsx, .csv formats only

Product Description

Aruba HPE 1930 Series

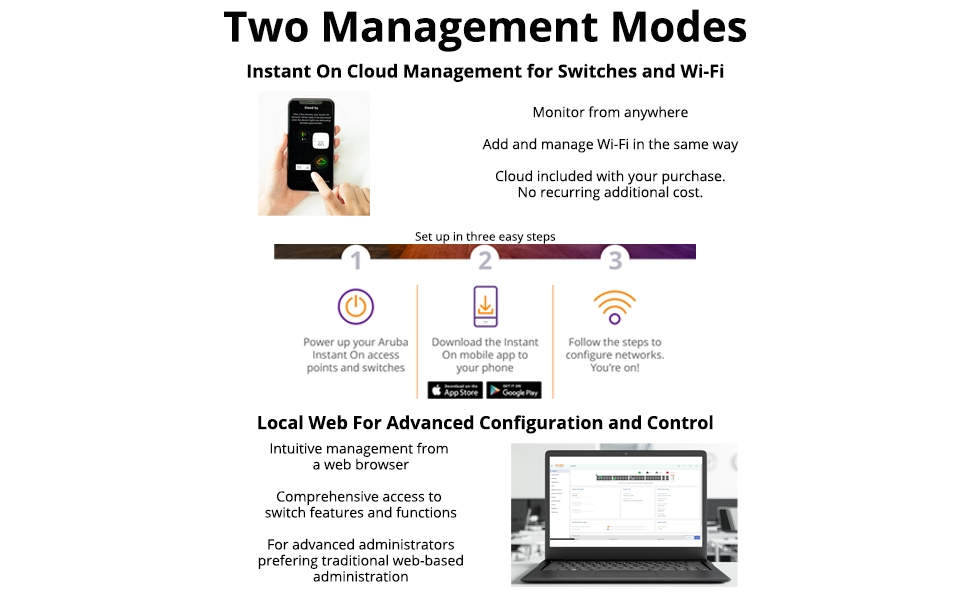

Two Management Modes
Key Features and info

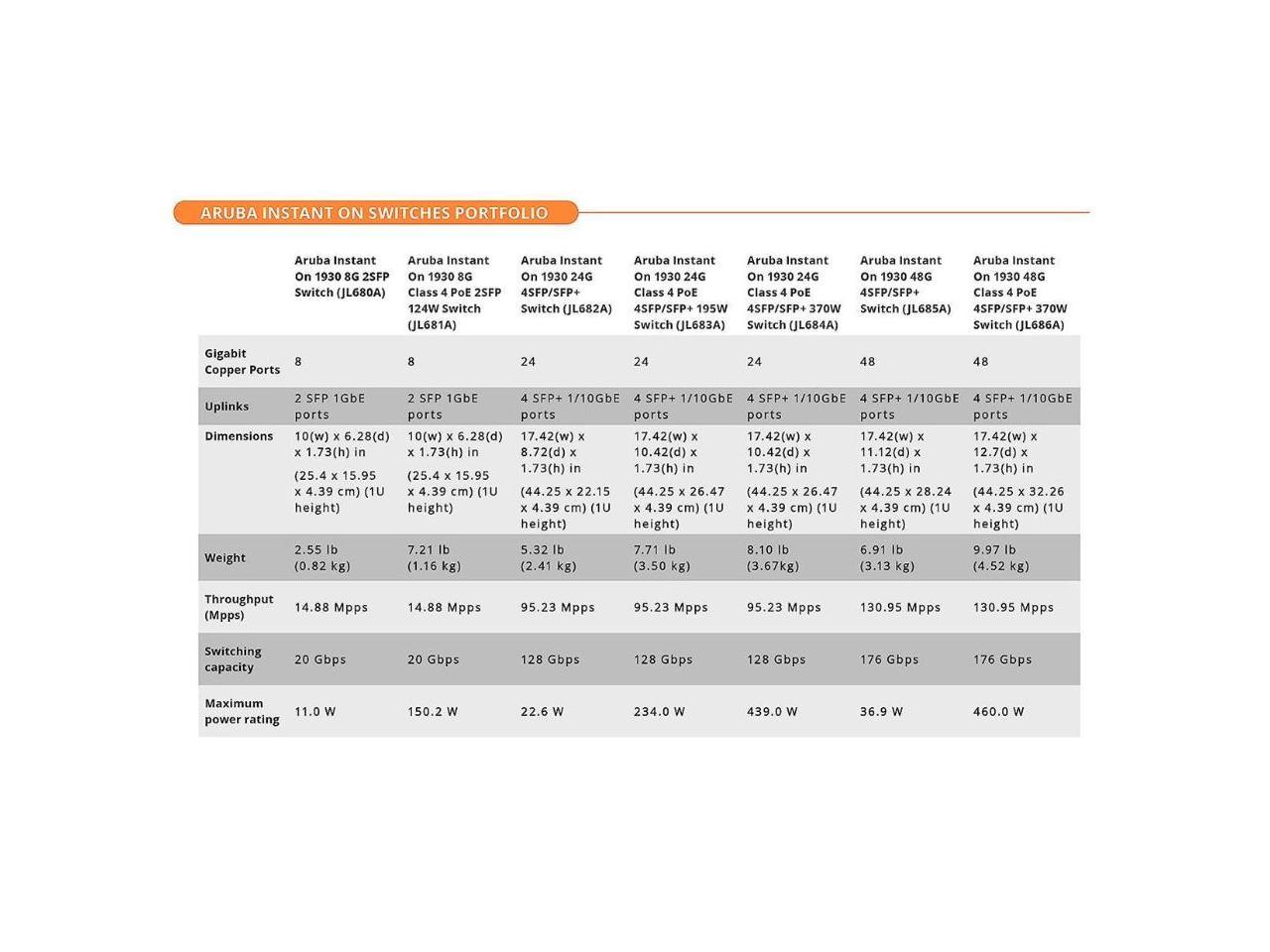

Aruba Portfolio of Switches



Brand

HPE

Series

Aruba Instant On 1930

Model

JL683A#ABA

Format

Desktop

Network Management Type

Smart

Primary Ports

24 x RJ45 + 4 x SFP

Primary Port Speed

10/100/1000Mbps + 10 Gbps

Primary Port Type

24 x RJ-45 autosensing 10/100/1000 Class 4 PoE ports4 x SFP+ 1/10GbE ports

MAC Address Table

16K

Buffer Memory

1.5MB

PoE

195 W Class 4 PoE

Dimensions

1.73" x 17.42" x 10.42"

Weight

7.71 lbs.

Temperature

Operating temperature: 32°F to 104°F (0°C to 40°C)Non-operating temperature: -40°F to 158°F (-40°C to 70°C)

Humidity

Operating relative humidity: 15% to 95% @ 104°F (40°C)Non-operating relative humidity: 15% to 95% @ 140°F (60°C)
