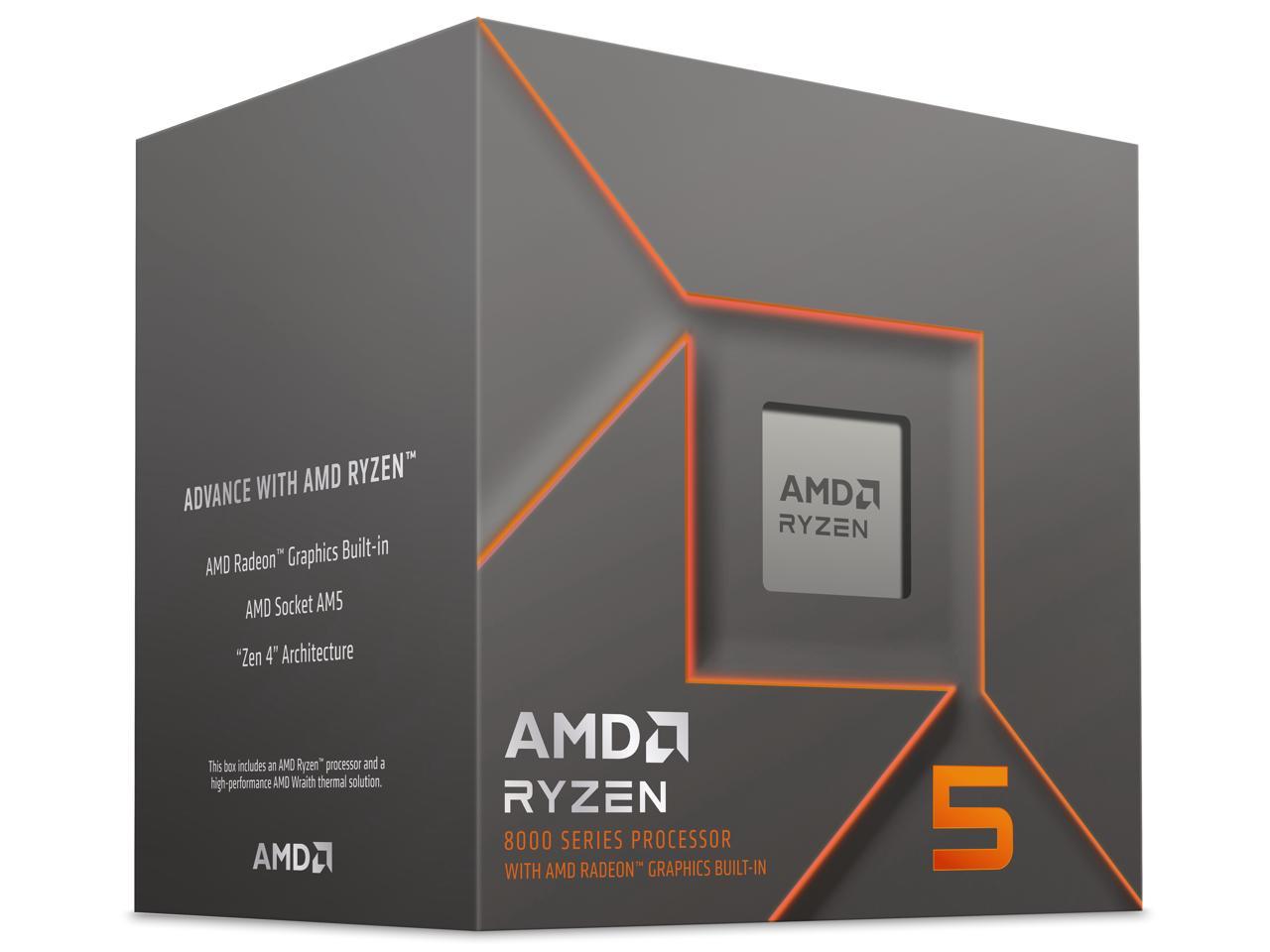

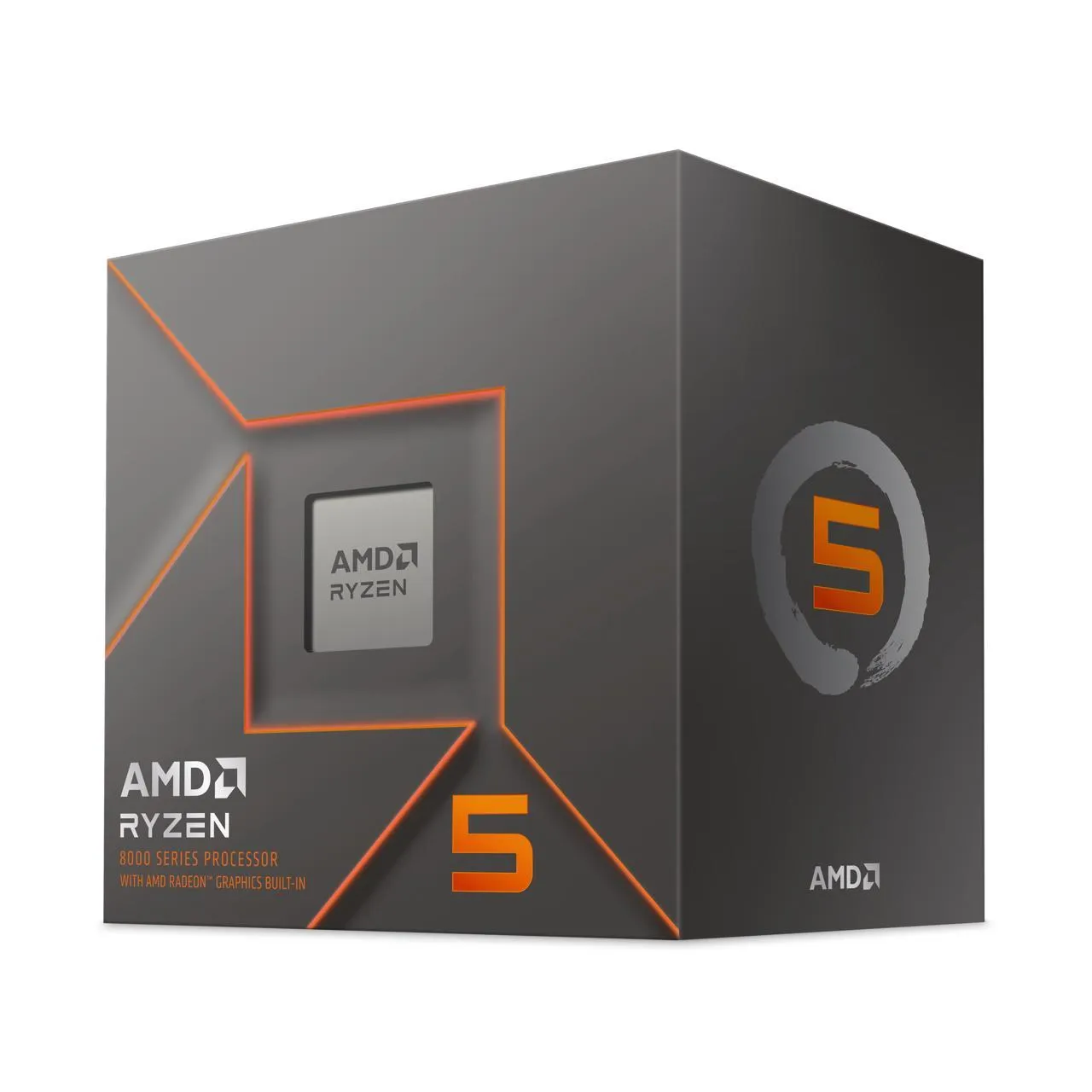

AMD 5 8500G CPU Socket AM5 Desktop processor

Brand	AMD
Products Status	New
Product Family	AMD Ryzen
Series	AMD Ryzen 5 8000 Series
Part Number	AMD Ryzen 5 8500G
Product ID Tray	100-000000931, 100-000001491
Application	Desktops
CPU Socket Type	AM5
Code Name	Phoenix
Total Cores	6
Total Threads	12
AMD PRO Technologies	No
Consumer Use	Yes
Regional Availability	Global
Architecture	2x Zen 4, 4x Zen 4c
Multithreading (SMT)	Yes
Max. Boost Clock	Up to 5 GHz
Max Zen4c Clock	Up to 3.7 GHz
Base Clock	3.5 GHz
Zen4 Base Clock	4.1 GHz
Zen4c Base Clock	3.2 GHz
L2 Cache	6 MB
L3 Cache	16 MB
TDP	65 W
AMD Configurable TDP (cTDP)	45-65W
Manufacturing Tech	TSMC 4nm FinFET
CPU Compute Die (CCD) Size	137mm²
AMD EXPO Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
Supported Extensions	AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax)	95°C
*OS Support	RHEL x86 64-Bit, Ubuntu x86 64-Bit, Windows 10 – 64-Bit Edition, Windows 11 – 64-Bit Edition
Native USB 4 (40Gbps) Ports	2
Native USB 3.2 Gen 2 (10Gbps) Ports	2
Native USB 2.0 (480Mbps) Ports	1
PCI Express® Version	PCIe 4.0
Native PCIe Lanes (Total/Usable)	10, 14
NVMe Support	Boot, RAID0, RAID1
Memory Type	DDR5
Memory Channels	2
Max. Memory	256 GB
Max Memory by Socket	[{"memoryKey2":"2x1R", {"memoryKey2":"2x2R", {"memoryKey2":"4x1R", {"memoryKey2":"4x2R", "memoryType":["DDR5-3600"]}, "memoryType":["DDR5-3600"]}], "memoryType":["DDR5-5200"]}
Graphics Model	AMD Radeon 740M
Graphics Core Count	4
Graphics Frequency	2800 MHz
DirectX Version	12
DisplayPort Version	2.1
DisplayPort Extensions	Adaptive-Sync, HDR Metadata, UHBR10
DisplayPort Max Refresh Rates (SDR)	1920×1080 @ 600Hz, 2560×1440 @ 480Hz, 3440×1440 @ 360Hz, 3840×2160 @ 240Hz, 7680×4320 @ 60Hz
HDMI Version	2.1
HDCP Version Supported	2.3
USB Type-C DisplayPort Alternate Mode	Yes
Multi-Monitor Support	Yes
Max Displays	4
Wireless Display	Miracast
Max Video Encode Bandwidth (SDR)	<p>1080p630 8bpc H.264, 1080p630 8bpc H.265, 1080p864 8/10bpc AV1, 1440p373 8bpc H.264, 1440p373 8bpc H.265, 1440p513 8/10bpc AV1, 2160p175 8bpc H.264, 2160p175 8bpc H.265, 2160p240 8/10bpc AV1, 4320p43 8bpc H.265, 4320p60 8/10bpc AV1</p>
AMD SmartAccess Memory	Available
