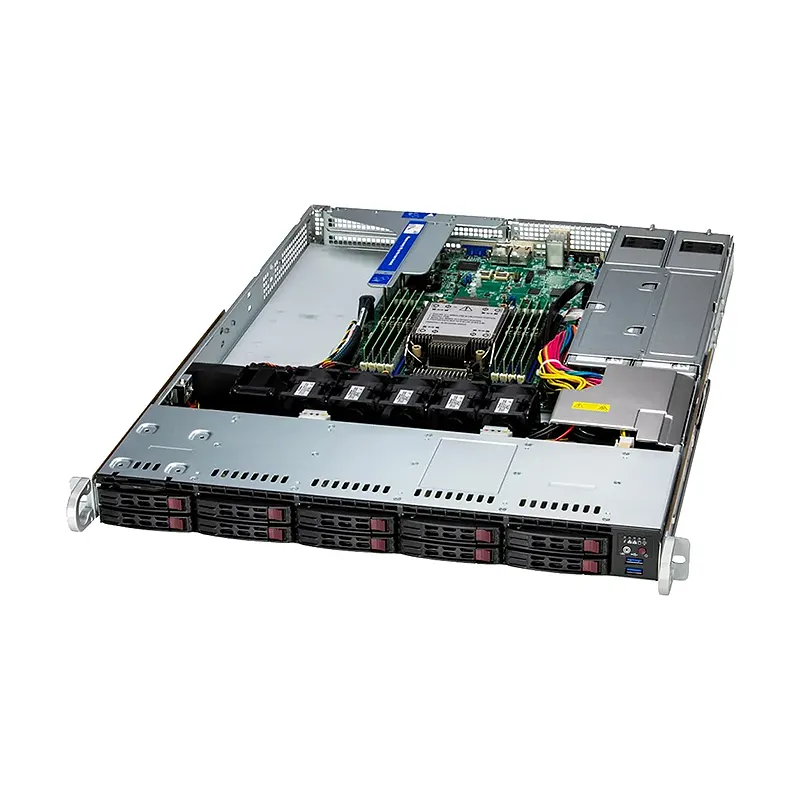

* NOTE: Image may not exactly match the product

WIO SuperServer SYS-112B-WR (Complete System Only

**WIO SuperServer SYS-112B-WR (Complete System)**
A high-density 1U rackmount server built for demanding enterprise and data center workloads. Features dual Intel Xeon Scalable processors (up to 205W TDP), support for 3TB DDR4 memory, and 12 hot-swap 2.5″ bays for flexible storage. Equipped with dual 10G LAN, multiple PCIe 4.0 slots, and redundant power supplies for uninterrupted performance. Optimized for virtualization, cloud computing, and AI/ML tasks, it delivers scalable power, robust expandability, and energy-efficient cooling in a compact form. Ideal for high-performance computing with minimal footprint.

$Quote1 Piece(MOQ)

SKU SYS-112B-WR Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • SuperServerSYS-112B-WR

Motherboard

  • Super X14SBW-F

Processor

  • CPU
    Single Socket E2 (LGA-4710)
    Intel Xeon 6700 series processors with E-cores
  • Core Count
    Up to 144C/144T; Up to 108MB Cache

GPU

  • Max GPU Count
    Up to 2 single-width GPUs
  • CPU-GPU Interconnect
    PCIe 5.0 x16 CPU-to-GPU Interconnect

System Memory

  • Memory
    Slot Count: 8 DIMM slots/8 Channels
    Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM

On-Board Devices

  • SATA
    SATA (6Gbps)
  • NVMe
    NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
  • Chipset
    System on Chip
  • Network Connectivity
    2 RJ45 1GbE with Intel I210

Input / Output

  • LAN
    2 RJ45 1 GbE LAN ports
    1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
  • USB
    2 USB 3.2 Gen1 Type-A ports(rear)
    2 USB 3.2 Gen1 Type-A ports(front)
  • Video
    1 VGA port
  • Serial
    1 COM port(Rear)
    1 COM port(Header)
  • TPM
    1 TPM header

System BIOS

  • BIOS Type
    AMI 64MB SPI Flash EEPROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    1U
  • Model
    CSE-116BTS-R000WNP

Dimensions and Weight

  • Height
    1.7″ (43 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    23.5″ (597 mm)
  • Package
    7.75″ (H) x 23.5″ (W) x 31.5″ (D)
  • Weight
    Gross Weight: 33.5 lbs (15.2 kg)
    Net Weight: 21 lbs (9.53 kg)
  • Available Color
    Black

Front Panel

  • LED
    Fan Fail/System Over Heat LED
    HDD activity LED
    Network Activity LEDs
    Power status LED
  • Buttons
    Power On/Off button
    Unit Identification (UID) button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x8 (in x16) LP slot

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 8 bays 8 front hot-swap 2.5″ SATA drive bays
    Option A: Total 10 bays 8 front hot-swap 2.5″ SATA drive bays 2 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays
    Option B: Total 10 bays 4 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays 6 front hot-swap 2.5″ SATA drive bays
    Option C: Total 10 bays 8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays 2 front hot-swap 2.5″ SATA drive bays
    Option D: Total 10 bays 10 front hot-swap 2.5″ SAS* drive bays
    (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • M.2
    2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110; VROC required for RAID)

System Cooling

  • Fans
    1 AOC cooling Fan(s) (optional)
    5 middle cooling PWM 40x40x56mm Fan(s)
  • Air Shroud
    1 CPU Air Shroud

Power Supply

  • 2x 860W
    2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    54.5 x 40.25 x 322 mm
    Input
    800W: 100-127Vac / 50-60Hz
    860W: 200-240Vac / 50-60Hz
    860W: 240Vdc / 50-60Hz
    +12V
    Max: 66.67A / Min: 0A (100Vac-127Vac)
    Max: 71.67A / Min: 0A (200Vac-240Vac)
    Max: 71.67A / Min: 0A (Vdc-240Vdc)
    5V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Products Status

New
Applications

AI Inference, CDN, Cloud Computing, Data Center Optimized, Database/Storage, Entry GPU server, Networking Appliance, Storage Headnode, Video Streaming, Virtualization, Web Cache
Max GPU

1
CPU Type

Intel Xeon 6700 series processors with E-cores
Total PCI-E Slots

3
Drives

8
Drive Form Factors

2.5"
Form Factor

1U
Generation

X14
Interface

NVMe (Optional), SAS (Optional), SATA (Native)
SATA

SATA (6Gbps)
LED

Fan Fail/System Over Heat LEDHDD activity LEDNetwork Activity LEDsPower status LED
Max GPU Count

Up to 2 single-width GPUs
Serial

1 COM port(Rear)1 COM port(Header)
CPU-GPU Interconnect

PCIe 5.0 x16 CPU-to-GPU Interconnect
Air Shroud

1 CPU Air Shroud
Network Connectivity

2 RJ45 1GbE with Intel I210View AOC Options
LAN

2 RJ45 1 GbE LAN ports1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
BIOS Type

AMI 64MB SPI Flash EEPROM
Package

7.75" (H) x 23.5" (W) x 31.5" (D)
Depth

23.5" (597 mm)
Fans

1 AOC cooling Fan(s) (optional)5 middle cooling PWM 40x40x56mm Fan(s)
Height

1.7" (43 mm)
Buttons

Power On/Off buttonUnit Identification (UID) button
M.2

2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110; VROC required for RAID)
Memory

Slot Count: 8 DIMM slots/8 ChannelsMax Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMMView Memory Options
Width

17.2" (437 mm)
Video

1 VGA port
Core Count

Up to 144C/144T; Up to 108MB Cache
NVMe

NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)View NVMe Options
Note

Supports up to 300W TDP CPUs (Air Cooled)
Weight

Gross Weight: 33.5 lbs (15.2 kg)Net Weight: 21 lbs (9.53 kg)
Drive Bays Configuration

Default: Total 8 baysOption A: Total 10 baysOption B: Total 10 baysOption C: Total 10 baysOption D: Total 10 bays(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
USB

2 USB 3.2 Gen1 Type-A ports(rear)2 USB 3.2 Gen1 Type-A ports(front)
Available Color

Black
PCI-Express (PCIe) Configuration

Default
TPM

1 TPM Header
CPU

Single Socket E2 (LGA-4710)Intel Xeon 6700 series processors with E-cores
Chipset

System on Chip
Environmental Spec.
