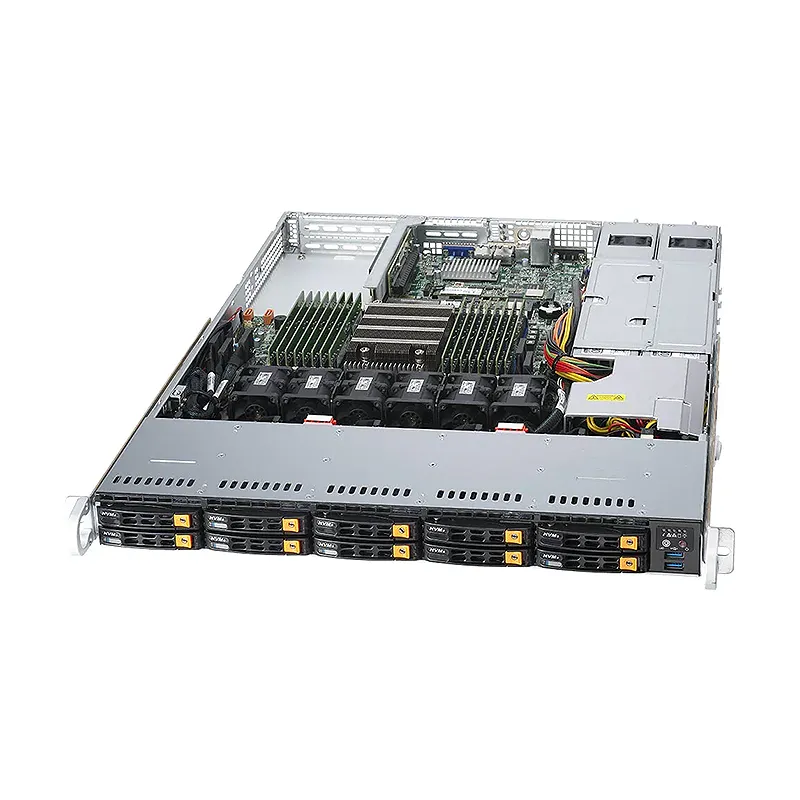

* NOTE: Image may not exactly match the product

WIO A+ Server AS -1114S-WN10RT (Complete System Only

**WIO A Server AS-1114S-WN10RT (Complete System)**
A high-performance, enterprise-grade server designed for scalability and reliability in demanding workloads. Key features include a robust multi-core processor, expansive storage capacity with hot-swappable drives, and dual-power redundancy for uninterrupted operation. Optimized for virtualization, cloud computing, and data-intensive tasks, it offers seamless integration with existing infrastructure and advanced security protocols. Benefits include enhanced processing power, reduced downtime, and energy-efficient design for cost savings. Unique selling points: pre-configured readiness for rapid deployment, modular expandability, and enterprise-level support, making it ideal for businesses prioritizing uptime, scalability, and future-proof IT investments.

$Quote1 Piece(MOQ)

SKU AS -1114S-WN10RT Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • A+ ServerAS -1114S-WN10RTStandard version with PWS-706P-1R (Platinum Level)
  • A+ ServerAS -1114S-WN10RT-EUEuropean version with PWS-861A-1R (Titanium Level)

Motherboard

  • Super H12SSW-NTR

Processor

  • CPU
    Single Socket SP3
    AMD EPYC 7002/7003 Series Processors
  • Core Count
    Up to 64C/128T

System Memory

  • Memory
    Slot Count: 16 DIMM slots
    Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

On-Board Devices

  • SATA
    SATA (6Gbps)
  • Chipset
    AMD System on Chip
  • Network Connectivity
    2 RJ45 10GBASE-T with Broadcom BCM57416
  • IPMI
    Support for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
    2 RJ45 10 GBASE-T LAN ports
  • USB
    2 USB 3.0 ports(front)
    4 USB 3.0 ports(rear)
    1 USB 3.0 port(Rear)
  • Video
    1 VGA port
  • DOM
    2 Super DOM (Disk on Module) ports

System BIOS

  • BIOS Type
    AMI 256MB SPI Flash ROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    1U Rackmount
  • Model
    CSE-116TS-R706WBP5-N10

Dimensions and Weight

  • Height
    1.7″ (43 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    23.5″ (597 mm)
  • Package
    8″ (H) x 24″ (W) x 32″ (D)
  • Weight
    Gross Weight: 39 lbs (17.69 kg)
    Net Weight: 25 lbs (11.34 kg)
  • Available Color
    Black

Front Panel

  • LED
    Device Activity
    LAN 1 Activity
    LAN 2 Activity
    Power status
    System information
  • Buttons
    Power On/Off
    UID button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 2 PCIe 4.0 x16 FHHL slots 1 PCIe 4.0 x16 LP slot
  • M.2
    2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 10 bays 10 front hot-swap 2.5″ NVMe/SATA drive bays
  • M.2

System Cooling

  • Fans
    6 heavy duty fans with optimal fan speed control

Power Supply

  • 2x 750W
    2x 750W Redundant (1 + 1) Platinum Level (94%) power supplies
    Dimension (WxHxL)
    54.5 x 40.25 x 320 mm
    Total Output Power
    Input
    700W: 100-140Vac / 50-60Hz
    750W: 100-240Vac
    750W: 200-240Vac / 50-60Hz
    +12V
    Max: 58A / Min: 0.5A (100Vac-140Vac)
    Max: 62A / Min: 0.5A (200Vac-240Vac)
    Max: 62A / Min: 0.5A
    5V SB
    Max: 3A / Min: 0A
    Output Type
    Backplanes (gold finger)
    Certification
    Platinum Level
    [
    Test Report
    ]
Brand

Supermicro
Products Status

New
Applications

All Flash Storage, Cloud Computing, Virtualization
Max GPU

1
CPU Type

AMD EPYC 7002/7003 Series Processors
Total PCI-E Slots

3
Drives

10
Drive Form Factors

2.5"
Form Factor

1U
Generation

H12
Interface

NVMe (Native), SAS (Optional), SATA (Optional)
SATA

SATA (6Gbps)
LED

Device ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem information
Network Connectivity

1 RJ45 10GBASE-T with Broadcom BCM57416View AOC Options
LAN

1 RJ45 1 GbE Dedicated BMC LAN port2 RJ45 10 GBASE-T LAN ports
BIOS Type

AMI 256MB SPI Flash ROM
Package

8" (H) x 24" (W) x 32" (D)
Depth

23.5" (597 mm)
Fans

6 heavy duty fans with optimal fan speed control
Height

1.7" (43 mm)
Buttons

Power On/OffUID button
M.2

2 M.2 PCIe 4.0 x2 NVMe slots (M-key 2280/22110)
Memory

Slot Count: 16 DIMM slotsMax Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options
Width

17.2" (437 mm)
Video

1 VGA port
ROHS

RoHS Compliant
Core Count

Up to 64C/128T
Note

Supports up to 280W TDP CPUs (Air Cooled)
Weight

Gross Weight: 39 lbs (17.69 kg)Net Weight: 25 lbs (11.34 kg)
Drive Bays Configuration

Default: Total 10 bays
USB

2 USB 3.0 ports(front)4 USB 3.0 ports(rear)1 USB 3.0 port(Rear)
Available Color

Black
PCI-Express (PCIe) Configuration

Default
IPMI

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
CPU

Single Socket SP3AMD EPYC 7002/7003 Series Processors
Chipset

AMD System on Chip
Environmental Spec.
DOM

DOM
