Product SKUs

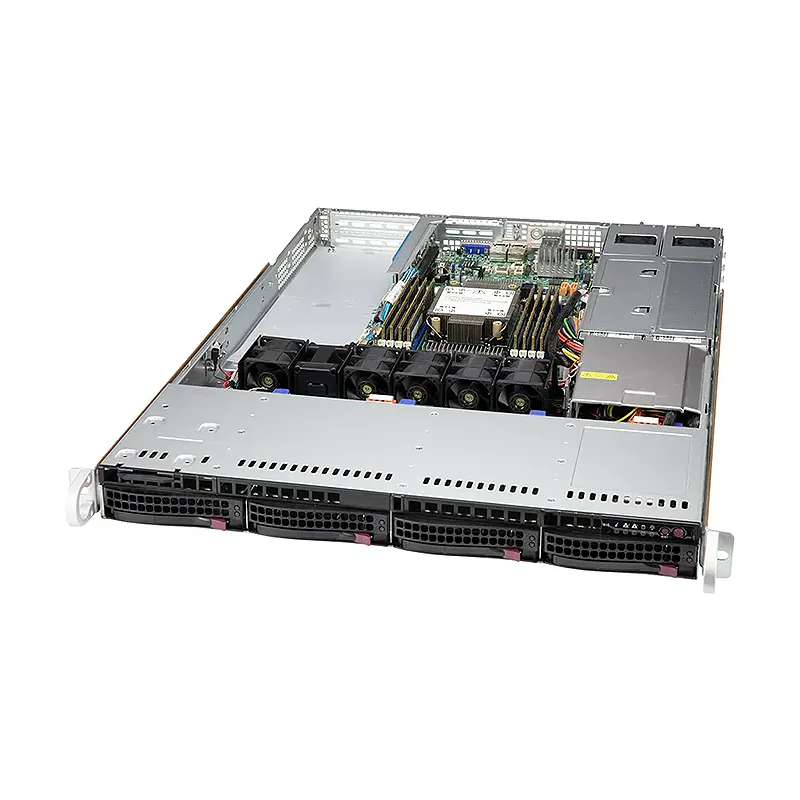

- SuperServerSYS-510P-WTRStandard version with PWS-504P-1R (Platinum Level)
- SuperServerSYS-510P-WTR-EUEuropean version with PWS-601A-1R (Titanium Level)
Motherboard
- Super X12SPW-TF
Processor
- CPU
Single Socket P+ (LGA-4189)
3rd Gen Intel Xeon Scalable processors - Core Count
Up to 40C/80T; Up to 60MB Cache
GPU
- Max GPU Count
Up to 1 single-width GPU
- Supported GPU
NVIDIA PCIe: T1000, A2
- CPU-GPU Interconnect
PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
- Memory
Slot Count: 8 DIMM slots
Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Supports Intel Optane persistent memory 200 series - Memory Voltage
1.2V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- NVMe
NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)
- Chipset
Intel C621A
- Network Connectivity
2 RJ45 10GbE with Intel X550
Input / Output
- LAN
2 RJ45 1 GBASE-T LAN ports
1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) - USB
2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 2.0 Type-A ports(rear)
2 USB 3.2 Gen1 ports(Header)
1 USB 3.2 Gen1 Type-A port
1 USB 2.0 port(Header) - Video
1 VGA 2 port
- Serial
1 COM port(Rear)
1 COM port(Header) - DOM
2 Super DOM (Disk on Module) portswith built-in power
- TPM
1 TPM header
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
Management
- Power configurations
ACPI/APM Power Management
Chassis
- Form Factor
1U Rackmount
- Model
CSE-815TS-R504WBP6
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
25.6″ (650 mm)
- Package
8.5″ (H) x 23.5″ (W) x 33.7″ (D)
- Weight
Gross Weight: 48 lbs (21.77 kg)
Net Weight: 24 lbs (10.89 kg) - Available Color
Black
Front Panel
- LED
Device Activity
LAN 1 Activity
LAN 2 Activity
Power status
System information - Buttons
Power On/Off
System Reset
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 2 PCIe 4.0 x16 FHFL slots 1 PCIe 4.0 x16 LP slot
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 4 bays 4 front hot-swap 3.5″ PCIe 4.0 NVMe*/SAS*/SATA drive bays
(*NVMe/SAS support may require additional storage controller and/or cables) - M.2
1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110)
- Peripheral Bays
2 slim bays (optional)
System Cooling
- Fans
5 counter-rotation PWM 40x40x56mm Fan(s)
1 AOC cooling Fan(s) (optional)
Power Supply
- 2x 500W
2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
54.5 x 40.25 x 320 mm
Total Output Power
Input
500W: 100-240Vac / 50-60Hz
+12V
Max: 42A / Min: 0.5A (100Vac-240Vac)
Max: 42A / Min: 0.5A
5V SB
Max: 3A / Min: 0A
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
Certification
Platinum Level
[
Test Report
]
