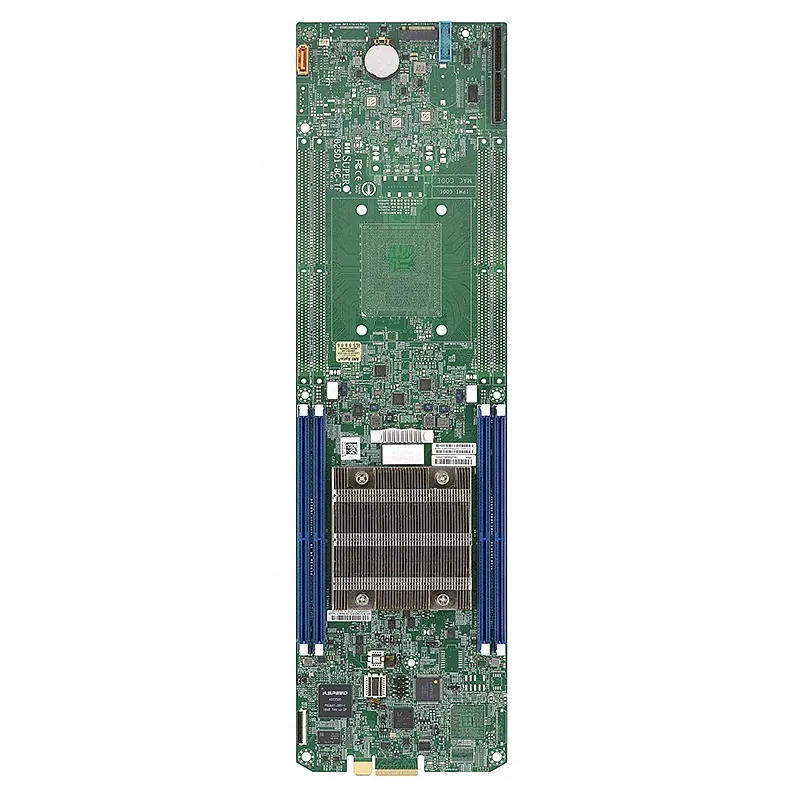

Supermicro MBD-B2SD1-8C-TF

The Supermicro MBD-B2SD1-8C-TF is a high-efficiency server motherboard designed for embedded, networking, and storage applications. It features an Intel Atom C3758 8-core processor, delivering robust performance with low power consumption. Key highlights include dual 10GbE SFP+ ports for high-speed networking, support for up to 256GB ECC DDR4 memory, and flexible storage options with six SATA3 ports. Its compact form factor, coupled with T-Flex thermal management, ensures reliable operation in space-constrained or harsh environments. Unique selling points include advanced security (TPM 2.0, Secure Boot), versatile expansion via PCIe and M.2 slots, and IPMI remote management for enterprise-grade control. Ideal for edge computing, cloud storage, and network appliances, it balances scalability, durability, and energy efficiency.

$Quote1 Piece(MOQ)

SKU MBD-B2SD1-8C-TF Categories , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • MBD-B2SD1-8C-TF

Physical Stats

  • Form Factor
    Proprietary
  • Dimension
    4.803″ x 17.086″ (12.2cm x 43.39cm)

Processor

  • CPU
    Intel Xeon Processor D-2141I, Intel Xeon D Processor (Skylake-D)
    Single Socket FCBGA-2518 supported, CPU TDP supports Up to 65W TDP
  • Core
    Up to 8 cores, 16 threads / 11MB Cache

System Memory

  • Memory Capacity
    4 DIMM slots
    Up to 128GB ECC RDIMM, DDR4-2133MT/s
  • Memory Type
    2133/2400 MT/s ECC DDR4 RDIMM VLP
  • DIMM Sizes
    8GB, 16GB, 32GB
  • Memory Voltage
    1.2V

On-Board Devices

  • Chipset
    System on Chip
  • IPMI
    ASPEED AST2500
  • Graphics
    0 ASPEED AST2500 BMC port(s)
  • Network Controllers
    Dual LAN with SoC, Two(2)10GbE Ethernet ports from KR interface to BP

Input / Output

  • SATA
    1 SATA3 (6Gbps) port(s)
  • DOM
    1 SATA DOM (Disk on Module) power connector support
  • TPM
    1 TPM Header & Chip both

Expansion Slots

  • PCIe
    1 PCIe 3.0 x4
  • M.2
    M.2 Interface: 1 PCIe 3.0 x4
    Form Factor: 2242/2280/22110
    Key: M-Key

System BIOS

  • BIOS Type
    256MB SPI Flash with AMI BIOS
  • BIOS Features
    ACPI 6.1
    UEFI 2.7
    SMBIOS 2.8
    SMBIOS 3.1
    PCI FW 3.2
    Plug and Play (PnP)

Management

  • System Management Software
    IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
  • Power Configurations
    +12V DC Power Input
BIOS Features

ACPI 6.1UEFI 2.7SMBIOS 2.8SMBIOS 3.1PCI FW 3.2Plug and Play (PnP)
Graphics

0 ASPEED AST2500 BMC port(s)
TPM

1 TPM Header & Chip both
Network Controllers

Dual LAN with SoC, Two(2)10GbE Ethernet ports from KR interface to BP
M.2

M.2 Interface: 1 PCIe 3.0 x4Form Factor: 2242/2280/22110Key: M-Key
Chipset

System on Chip
DIMM Sizes

16GB, 32GB, 8GB
BIOS Type

256MB SPI Flash with AMI BIOS
DOM

DOM
Dimension

4.803" x 17.086" (12.2cm x 43.39cm)
PCIe

1 PCIe 3.0 x4
Form Factor

Proprietary
Memory Type

2133/2400 MT/s ECC DDR4 RDIMM VLP
Application

Server
IPMI

ASPEED AST2500
Memory Voltage

1.2V
CPU

CPU TDP supports Up to 65W TDP, Intel Xeon D Processor (Skylake-D)Single Socket FCBGA-2518 supported, Intel Xeon Processor D-2141I
SATA

1 SATA3 (6Gbps) port(s)
Memory Capacity

4 DIMM slotsUp to 128GB ECC RDIMM, DDR4-2133MT/s
Core

16 threads / 11MB Cache, Up to 8 cores
