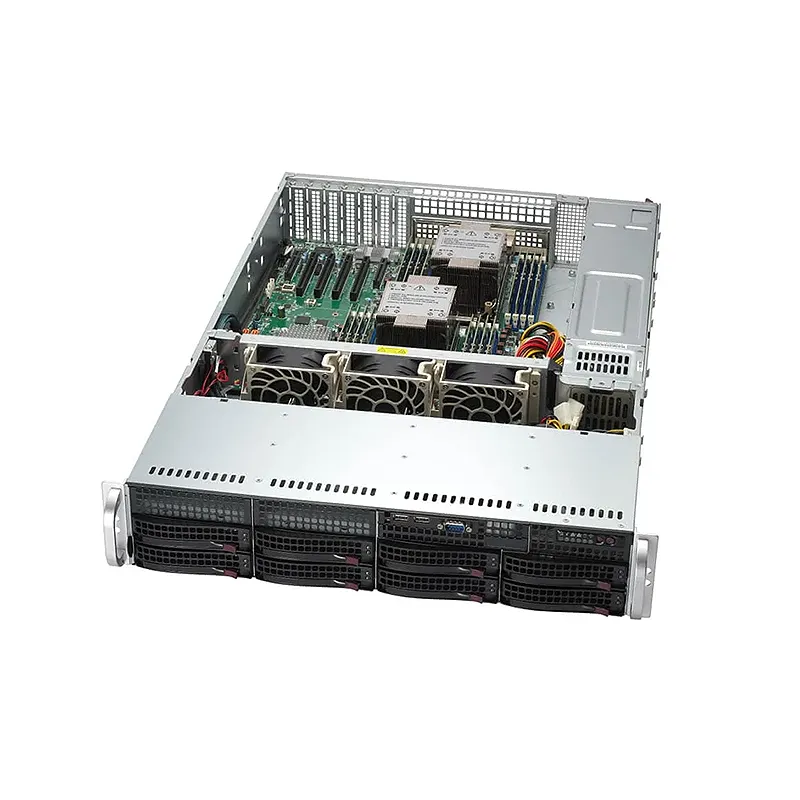

Mainstream SuperServer SYS-621P-TRT

**Mainstream SuperServer SYS-621P-TRT**
A high-performance 2U rack server designed for data centers and enterprise workloads, featuring dual 4th Gen Intel Xeon Scalable processors for exceptional compute power. Supports up to 24 DDR5 DIMMs (6TB memory) and 12 hot-swap 3.5″/2.5″ bays (SATA/SAS/NVMe) for scalable storage. Includes six PCIe 5.0 slots for GPU/FPGA acceleration, dual 10GbE LAN, and redundant 1600W PSUs for reliability. Optimized for AI, HPC, and virtualization with advanced thermal management, IPMI remote management, and TPM security. Combines density, flexibility, and redundancy, ideal for demanding workloads requiring high throughput and low latency.

$Quote1 Piece(MOQ)

SKU Server SYS-621P-TRT Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • SuperServerSYS-621P-TRT

Motherboard

  • Super X13DEI-T

Processor

  • CPU
    Dual Socket E (LGA-4677)
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors

System Memory

  • Memory
    Slot Count: 16 DIMM slots
    Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

On-Board Devices

  • SATA
    SATA (6Gbps)
  • Chipset
    Intel C741
  • Network Connectivity
    2 RJ45 10GbE

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 2.0 ports(front)
    4 USB 3.0 ports(rear)
  • Video
    1 VGA port
  • Serial
    1 COM port(Rear)
    1 COM port(Front)
  • DOM
    2 Super DOM (Disk on Module) ports
  • TPM
    1 TPM Onboard/port 80

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-825BTS-R1K23LPP1

Dimensions and Weight

  • Height
    3.5″ (89 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    25.5″ (647 mm)
  • Package
    11.4″ (H) x 26.7″ (W) x 34.5″ (D)
  • Weight
    Gross Weight: 69 lbs (31.2 kg)
    Net Weight: 36.38 lbs (16.5 kg)
  • Available Color
    Black

Front Panel

  • LED
    HDD activity
    Network activity
    Power status
    System information (overheat/UID)
  • Buttons
    Power On/Off
    System Reset

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 2 PCIe 5.0 x8 LP slots 4 PCIe 5.0 x16 LP slots
  • M.2
    2 M.2 PCIe 4.0 x2 NVMe slots (M-key)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 8 bays 4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays 4 front hot-swap 3.5″ SAS*/SATA drive bays
    (*NVMe/SAS support may require additional storage controller and/or cables)
  • M.2
    2 M.2 NVMe slots (M-key)
  • Peripheral Bays
    1 slim DVD bay (optional)

System Cooling

  • Fans
    3 middle 8cm Fan(s)

Power Supply

  • 2x 1200W
    2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL)
    76 x 40 x 336 mm
    Input
    1000W: 100-127Vac
    1000W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac
    1200W: 200-240Vac / 50-60Hz
    1200W: 200-240Vdc / 50-60Hz (for CCC only)
    +12V
    Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vdc-240Vdc)
    Max: 100A / Min: 0A (200Vac-240Vac)
    5V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Products Status

New
Applications

Application and data serving, Compute Intensive Applications, Enterprise Server, Virtualization
Max GPU

2
CPU Type

5th Gen Intel Xeon/4th Gen Intel Xeon Scalable processors
Total PCI-E Slots

6
Drives

8
Drive Form Factors

3.5"
Form Factor

2U
Generation

X13
Interface

NVMe (Optional), SATA (Native)
SATA

SATA (6Gbps)
LED

HDD activityNetwork activityPower statusSystem information (overheat/UID)
Serial

1 COM port(Rear)1 COM port(Front)
Network Connectivity

2 RJ45 10GbEView AOC Options
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type

AMI 32MB SPI Flash EEPROM
Package

11.4" (H) x 26.7" (W) x 34.5" (D)
Depth

25.5" (647 mm)
Fans

3 middle 8cm Fan(s)
Height

3.5" (89 mm)
Buttons

Power On/OffSystem Reset
Peripheral Bays

1 slim DVD bay (optional)
M.2

2 M.2 NVMe slots (M-key)
Memory

Slot Count: 16 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMMView Memory Options
Width

17.2" (437 mm)
Video

1 VGA port
ROHS

RoHS Compliant
Note

Supports up to 300W TDP CPUs (Air Cooled)
Weight

Gross Weight: 69 lbs (31.2 kg)Net Weight: 36.38 lbs (16.5 kg)
Drive Bays Configuration

Default: Total 8 bays(*NVMe/SAS support may require additional storage controller and/or cables)
USB

2 USB 2.0 ports(front)4 USB 3.0 ports(rear)
Available Color

Black
PCI-Express (PCIe) Configuration

Default
TPM

1 TPM Onboard/port 80
CPU

Dual Socket E (LGA-4677)5th Gen Intel Xeon
Chipset

Intel C741
DOM

DOM
